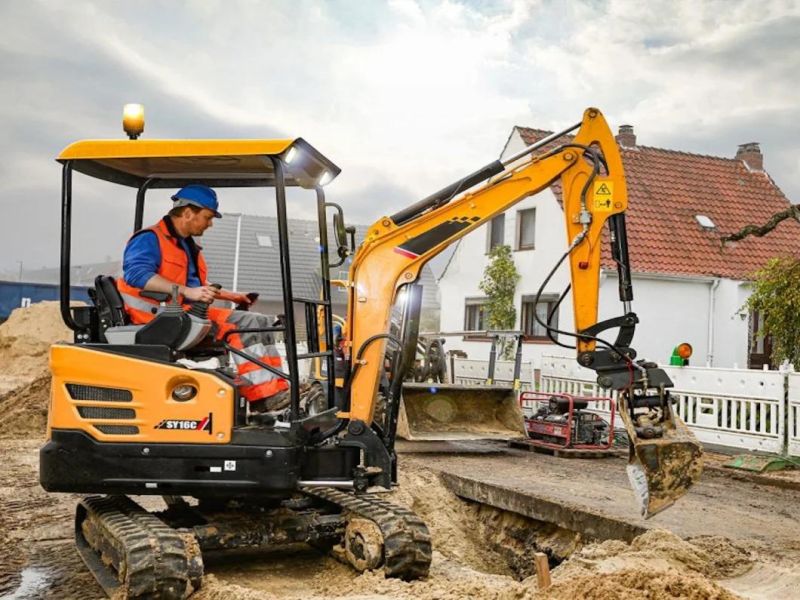

• Model NO.：SY16C
• Drive Type：Internal Combustion Drive
• Bucket Capacity：0.07cbm
• Size：Small-Scale
• Certification：CE
• Condition：New
• Engine Power：22.8kw
• Transport Package：4510*1450*2395mm
• Specification：2820kg
• Trademark：YUCHAI
• Origin：China
• Production Capacity：50000PCS,Year

Total Weight

1850kg

Dou Rong

0.02-0.06(0.04)m³

performance

Gradeability

58%/30°

Swing speed

10rpm

Ground pressure

29.1kPa

Bucket digging force

15.2kN

Stick digging force

9.2kN

Walking speed

3.7/2.1km/h

Walking part

Crawler bandwidth

230mm

Support wheel on each side

3

Oil and coolant capacity

Fuel tank

23L

Hydraulic tank

21L

engine lubricant

2L

heat sink

3.8L

Final drive

2×0.4L

engine

model

3TNV70

rated power

10.3/2200kW/rpm

Maximum torque

48.3~52.4N·m

Displacement

0.854L
