• Model NO.：ZT9286
• Type：Small Loader
• Standard Bucket：1cbm
• Loader Uploading Distance：1035mm
• Operating Weight：5600kg
• Max Dump Heigh：3230mm
• Tyre Specification：16,70-20
• Min Turning Radius (mm)：5885mm
• Wheel Base(mm)：2350mm
• Tread(mm)：1500mm
• Transport Package：Nude
• Specification：5300 × 2000 × 2860mm
• Trademark：ZTMACHINE
• Origin：China
• HS Code：842951000
• Production Capacity：30

Basic Info.

Model NO. ZT9286 Type Small Loader Standard Bucket 1cbm Loader Uploading Distance 1035mm Operating Weight 5600kg Max Dump Heigh 3230mm Tyre Specification 16/70-20 Min Turning Radius (mm) 5885mm Wheel Base(mm) 2350mm Tread(mm) 1500mm Transport Package Nude Specification 5300 × 2000 × 2860mm Trademark ZTMACHINE Origin China HS Code 842951000 Production Capacity 30

Product Description



Description	Specification	Description	Specification
rated load(kg)	2000	travel speed(km/h)
Rated bucket capacity(m³)	1	Forward gear     I	0~6
operating weight(kg)	5800	II	0~24
Max.breakout force(kN)	55	reverse gear     I	0~6
Max.dump height(MM)	2800	II	0~24
Max.dump reach(MM)	1035	Engine Model	Cummins 4BT3.9-C100
Discharging Angle(°)	45	Type	In line, water cooled, four stroke, dir.inject
Max.grade ability	30	Rated power(kW)	75
steering angle(°)	35	Rated speed(rpm)	2400
Min turning radius(MM)	5885	Tire model	16/70-20
Wheel base(MM)	2350	The system pressure(MPa)	17
Tread(MM)	1500	The braking system	Gas-liquid caliper disc brake
Min.ground clearance(MM)	300	The voltage(V)	24
Overall dimensions (l×w×h)mm	5300×2000×2860

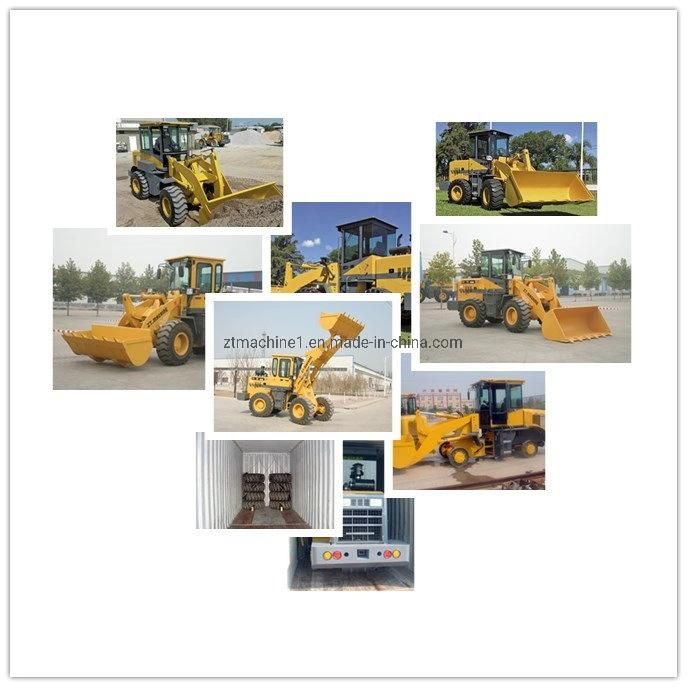

ZT9286 is a loader for loading and unloading loose materials, with high reliability and multiple purposes, and is widely used in
farms, small mine plant, timber plant and towns construction and etc.

1. It is equipped with the CUMMINS  engine meeting the requirements of China II emission standard, with strong power and high reliability

2. It adopts front and rear reinforced frames that have passed 200,000 times of fatigue enhancement tests, with strong bearing
capacity, reasonable entire-machine load distribution and good stability.

3. New steel structure cab is adopted, which has wide vision, larger operation space,  good sealing performance and comfortable driving environment

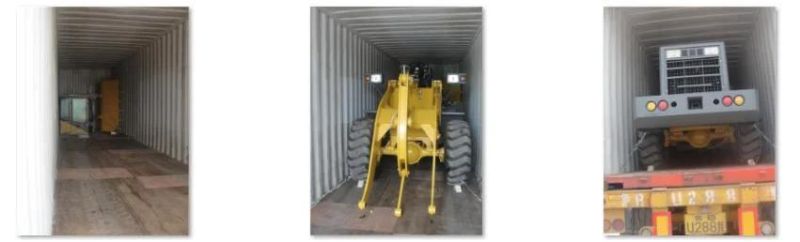

Packing & Delivery
Container 40HC 2 units can be installed
1.Standard packing, the machine body is without packing, but the machine will be well fastened and fixed in the container by wire rope.2. spare parts or wearing parts will be packed in wooden box or paper carton. 3. Standard shipping method is by container.
