• Model NO.：YG3400
• Product Capacity：1000sets,Month
• Certification：ISO9001: 2000, CE
• Condition：New
• Product Name：Small Airless Spray Cold Solvent Paint Road Markin
• Maximum Nozzle Size：0.027 (Single Shot)
• Weight：94kg
• Application：Highways, Municipal Roads
• Marking Shoes：100,150,200,300400,450mm
• Marking Width：50-450mm
• Marking Thickness：0.2-0.4mm
• Maximum Working Pressure：3300psi (227bar)
• Unloading Flow：8L,Min
• Transport Package：Wooden Case Package
• Specification：YG-3400
• Trademark：YUGONG
• Origin：Henan, China
• HS Code：847910900
• Production Capacity：1000sets,Month

Basic Info.

Model NO. YG3400 Product Capacity 1000sets/Month Certification ISO9001: 2000, CE Condition New Product Name Small Airless Spray Cold Solvent Paint Road Markin Maximum Nozzle Size 0.027 (Single Shot) Weight 94kg Application Highways, Municipal Roads Marking Shoes 100/150/200/300400/450mm Marking Width 50-450mm Marking Thickness 0.2-0.4mm Maximum Working Pressure 3300psi (227bar) Unloading Flow 8L/Min Transport Package Wooden Case Package Specification YG-3400 Trademark YUGONG Origin Henan, China HS Code 847910900 Production Capacity 1000sets/Month

Product Description

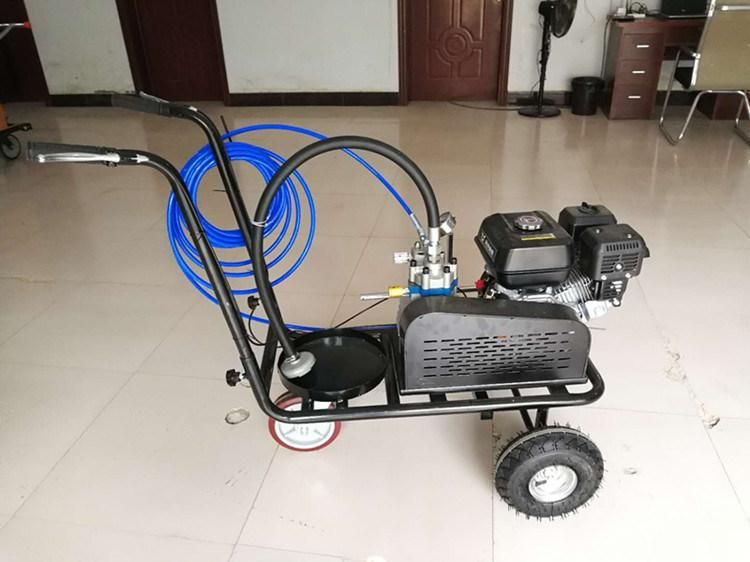

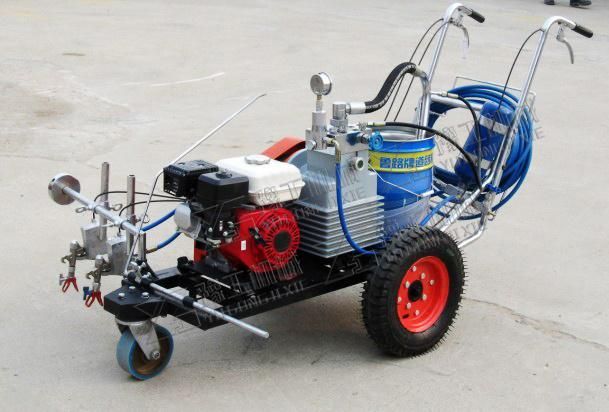

Small Airless spray cold solvent paint road marking machine for running track
YG-3400 The push-type high-pressure airless cold jet marking machine is a high-pressure flow type airless spraying machine, which uses a gasoline engine to drive a single plunger pump to form a high pressure coating in the machine.



Product parameters


	YG-3400 Cold spray road marking machine	YG-3900 Cold spray road marking machine
Weight	94kg	110kg
Marking width	Change different specifications of shoes (100,150,200mm)	Change different specifications of shoes (100,150,200,300,400,450mm)
Engine	4.3Hp gasoline engine	7Hp gasoline engine
Nozzle standard configuration	517 (15cm or less)	0.027
Maximum work pressure	25Mpa	30mpa
Unloading Flow	6L/min	8L/min
High pressure pipe strength	35mpa	40mpa
High pressure pipe length	φ6x10m	Ф6*2   Ф10*10m

Working efficiency: 3 seconds and 1 meter, about 1000 meters per hour. 1kg paint can be drawn at 2-2.5 square feet.

Apply Field

• Roads
• Parking lots
• Railways
• Highways
• Bridges
• Tunnels
• Coal mines
• Buildings
• other squares and runways to draw different restrictions, guidelines and warnings on the leveling surface.

The high-pressure airless sprayer uses a high-pressure plunger pump to pressurize the paint to 3000PSK (210Kg/cm), and the high-pressure paint is delivered to the spray gun through a high-pressure hose, and the pressure is released through the nozzle to form a spray, thereby forming a dense coating on the wall surface. Because the paint does not require compressed air atomization, it is called airless spray.

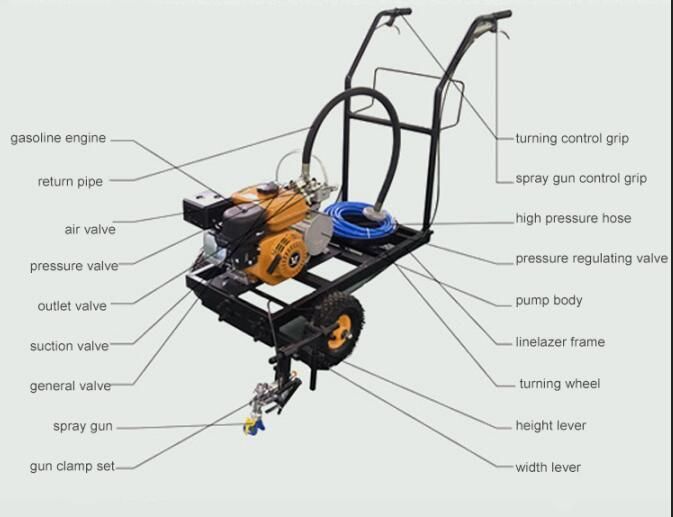

Main functions

1. Pump body: It adopts full oil intrusive lubrication mode and hydraulic assist to reduce wear. The service life can reach more than 40,000 hours.
2. Seal: Well designed and cast. Super wear-resistant, it can be used freely in winter or in summer, acid and alkali resistance, fatigue resistance, easy to replace.
3. Suction pipe network: vertical body, pipette is easy to clean and clean, one person can move independently and operate conveniently. Stainless steel processing is resistant to corrosion and the inner wall does not fall off without clogging. The liquid suction filter solves the problem that the liquid inlet surface is small and easy to block, and the liquid inlet area is increased, and the space is reduced. Built-in enlarged filter.
4. Valve body: The inlet valve and the outlet valve are super wear-resistant with spherical ceramic beads, which is several dozen times longer than traditional steel balls. Keep on facing, don't break.
5. Frame: It adopts vertical design, compact and practical, easy to move, detachable, and the frame can easily wind up 30 meters high-pressure hose, and the whole equipment is easy to take care of.

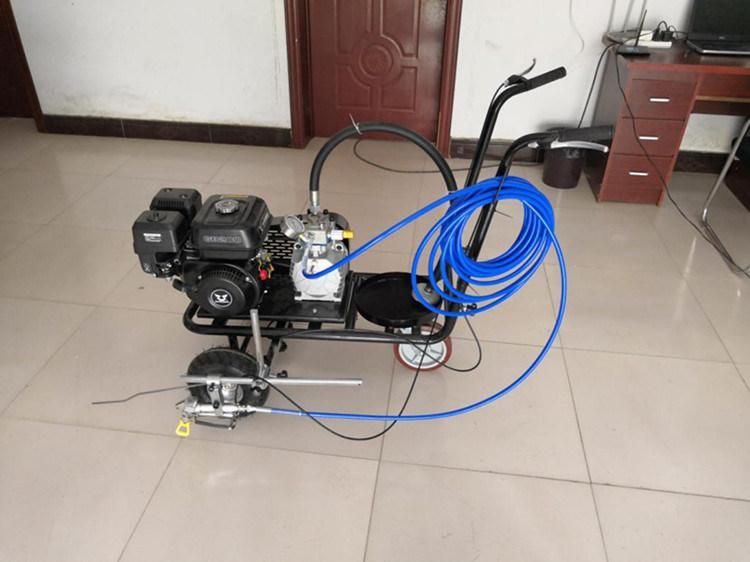

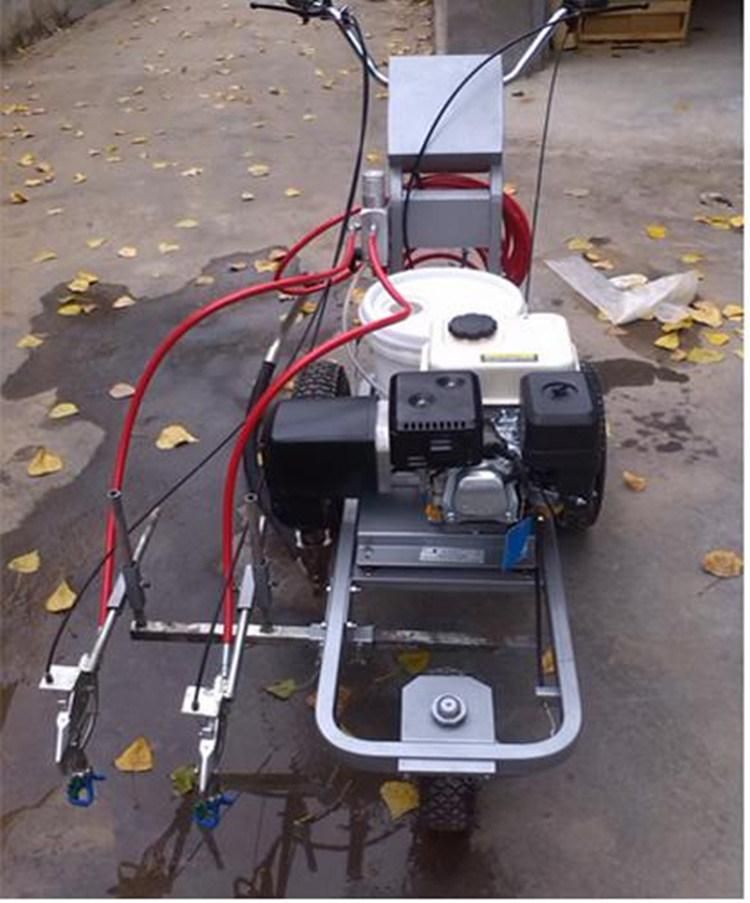

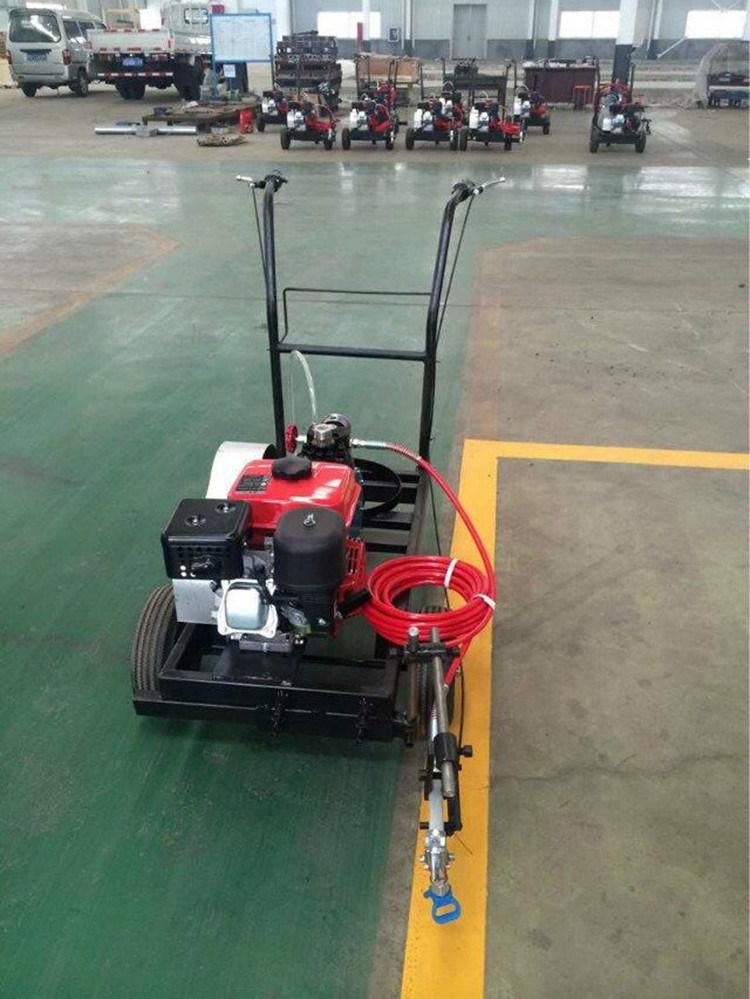

Working display
