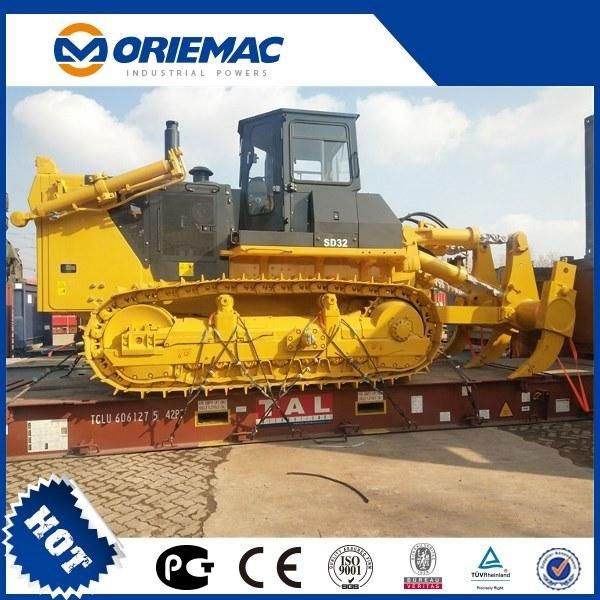

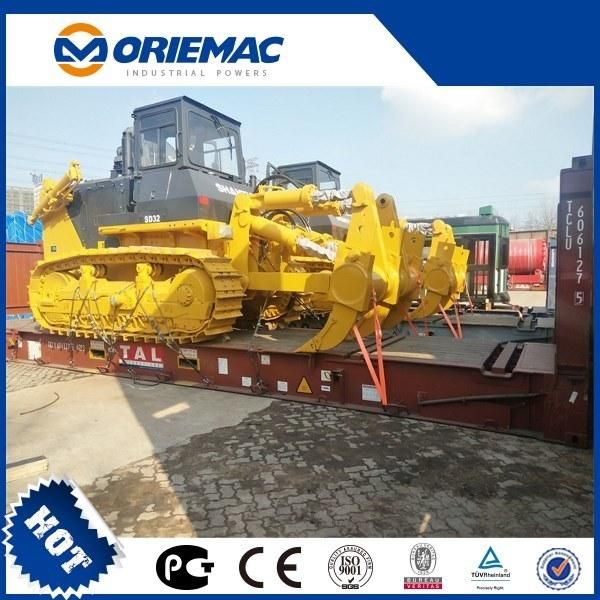

New Shantui SD32 320HP Heavy Crawler Bulldozer with 3 Shank Rippers
Oriemac Machinery & Equipment (Shanghai) Co., Ltd.- After-sales Service：Oversea
- Warranty：1 Year
- Type：Universal Type
- Transmission：Hydraulic Transmission
- Walking Mode：Crawler
- Load and Unload Method：Front Discharge
Base Info
- Model NO.：SD32
- Engine Power：147~515kw
- Certification：ISO9001: 2000
- Condition：New
- Color：Yellow
- Product Name：320HP Shantui Bulldozer
- Engine：Nta855-C360s10 235kw
- Blade Capacity：S Blade 10m3
- Transport Package：Nude Packing
- Specification：8560*4130*3640
- Trademark：SHANTUI
- Origin：China
- HS Code：84295100
- Production Capacity：100 Units,Month
Description
engine
model
NAT855-C360
type
turbo charged,inter cooled,in-line,4-cycle
NO. Of cylinders-bore X stroke
6-139.7x152.4mm
piston displacement
14010ml
flywheel horsepower
235kw(320hp)
rated revolutions
2000r/min
Max. Torque
1440N.M/1440r/min
fuel consumption
245g/kw.h(180g/hp.h)
start motor
24v,11kw
alternator
28v,35A
battery
24v(12vX2)-195AH
fuel system
PT pump head valve direct injection
governor
centrifugal, all speed governor
cooling system
forced circulation by centrifugal pump,busher type fan
air cleaner
dry,horizontal type with air cleaner
transmission
torque converter
3-element,1-stage,1-phase
cooling method
water-cooled
power-shift planetary gear transmission
planetary gear, multiple-disc clutch,hydrauliclly connected forced lubrication by gear pump
main-drive shaft
spiral bevel gear,splash lubrication
