• Model NO.：DH16-K2
• Engine Power：74~147kw
• Certification：CE, ISO9001: 2000
• Condition：New
• Color：Yellow
• Product Name：Shantui 180HP New Bulldozer Withtier 4 Engine Pat
• Operation Weight：17635kg
• Ripper：Three-Shank Ripper
• Blade：Pat(Power Angle Tilt)
• Quality：High Quality
• Walking Type：Crawler
• Load and Unload Model：Front Discharge
• Unique Selling Point：High Operating Efficiency
• Engine：FIAT Engine
• Bucket Capacity：4.6bm
• Transport Package：Nude
• Specification：5800*3400*3180mm
• Trademark：shantui
• Origin：China
• HS Code：8429111000
• Production Capacity：1000pieces,Year

Basic Info.

Model NO. DH16-K2 Engine Power 74~147kw Certification CE, ISO9001: 2000 Condition New Color Yellow Product Name Shantui 180HP New Bulldozer Withtier 4 Engine Pat Operation Weight 17635kg Ripper Three-Shank Ripper Blade Pat(Power Angle Tilt) Quality High Quality Walking Type Crawler Load and Unload Model Front Discharge Unique Selling Point High Operating Efficiency Engine FIAT Engine Bucket Capacity 4.6bm Transport Package Nude Specification 5800*3400*3180mm Trademark shantui Origin China HS Code 8429111000 Production Capacity 1000pieces/Year

Product Description

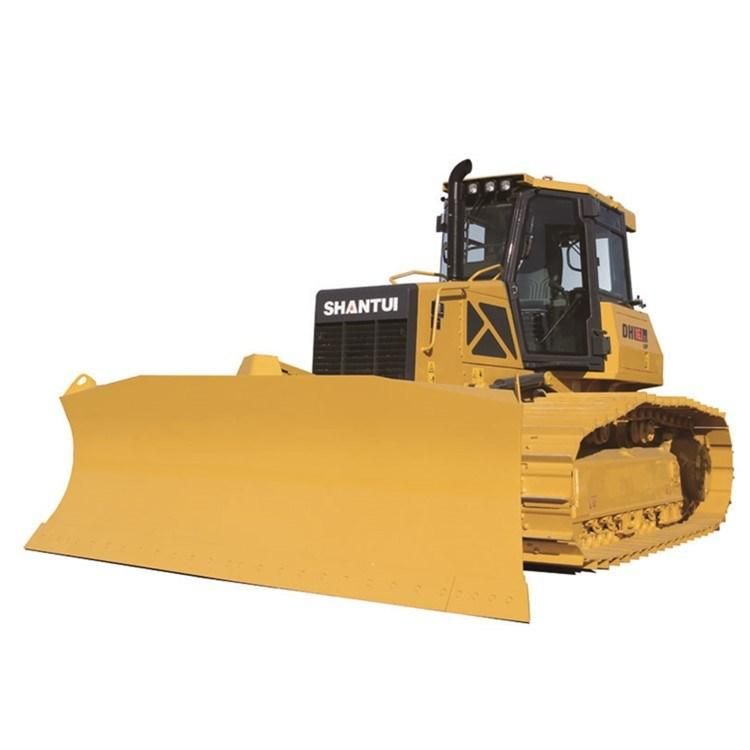

Shantui 180HP New Bulldozer withTier 4 Engine PAT Blade DH16-K2

1. Introduction:


DH16 is a new generation standard fully-hydraulic bulldozer. The two-circuit electronically controlled static pressure drive system can intelligently adapt to the load variation and realize loaded steering and pivot steering, featuring high working flexibility and efficiency and low fuel consumption.



Power System

The installed N67 electronic control engine conforms to the EPA Tier4 final/EU Stage 4 emission regulation, featuring stronger power and higher energy-saving and environmental-friendliness. The after-treatment system adopts HI-eSCR technology, requiring no external EGR. The 600h oil maintenance interval reduces the maintenance costs.

The Shantui's innovative hydrostatic drive optimization technology is applied to achieve higher efficiency and energy-saving. The multiple operating modes are at the user's choice depending on the load of actual working condition to realize the reasonable match among power, efficiency, and energy consumption

2.Parameter:


Parameter name	DH16-K2 XL (Extended version)	DH16-K2 LGP(Low ground pressure version)
Performance parameters
Operating weight (Kg)	17635kg/38879lb (With drawbar)	18800kg/41447lb (With drawbar)
Ground pressure (kPa)	50 (With 560mm track shoes)/45.9 (With 610mm track shoes)	36.9
Engine
Engine model	N67	N67
Rated power/rated speed (kW/rpm)	142/2100	142/2100
Overall dimensions
Overall dimensions of machine (mm)	5800*3400*3180	5800*4011*3180
Driving performance
Forward speed (km/h)	0-10	0-10
Reversing speed (km/h)	0-10	0-10
Chassis System
Center distance of track (mm)	2040	2350
Width of track shoes (mm)	560/610	810
Ground length(mm)	3075	3075
Tank capacity
Fuel tank (L)	389	389
Working device
Blade type	PAT(Power Angle Tilt)	PAT(Power Angle Tilt)
Digging depth (mm)	675	675
Ripper type	Three-shank ripper	Three-shank ripper
Ripping depth (mm)	492	492

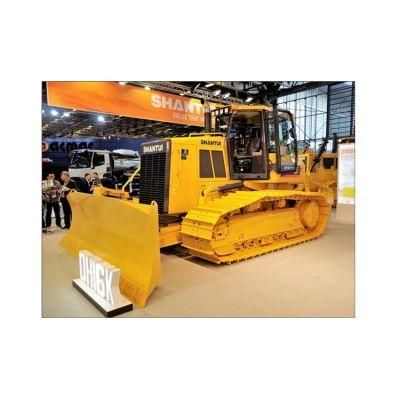

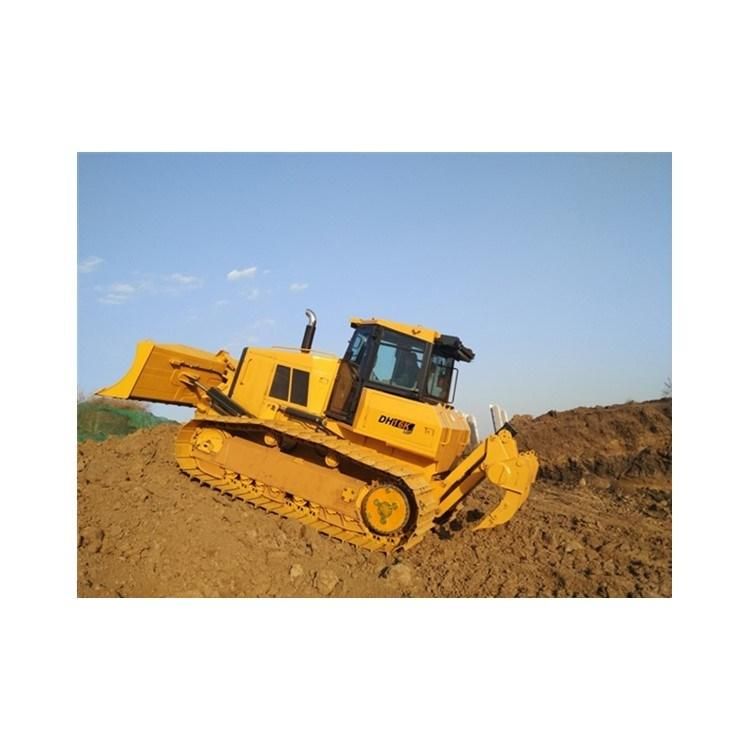

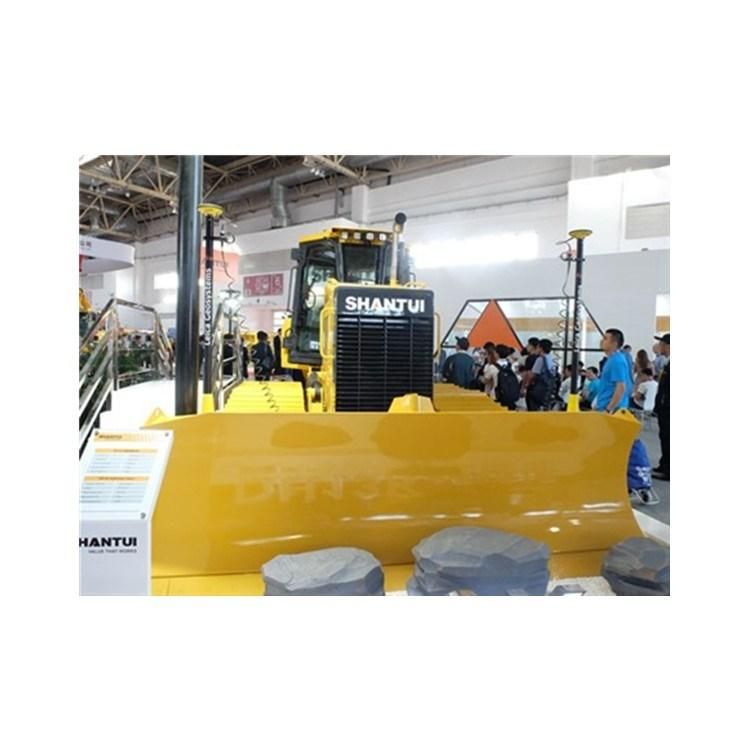

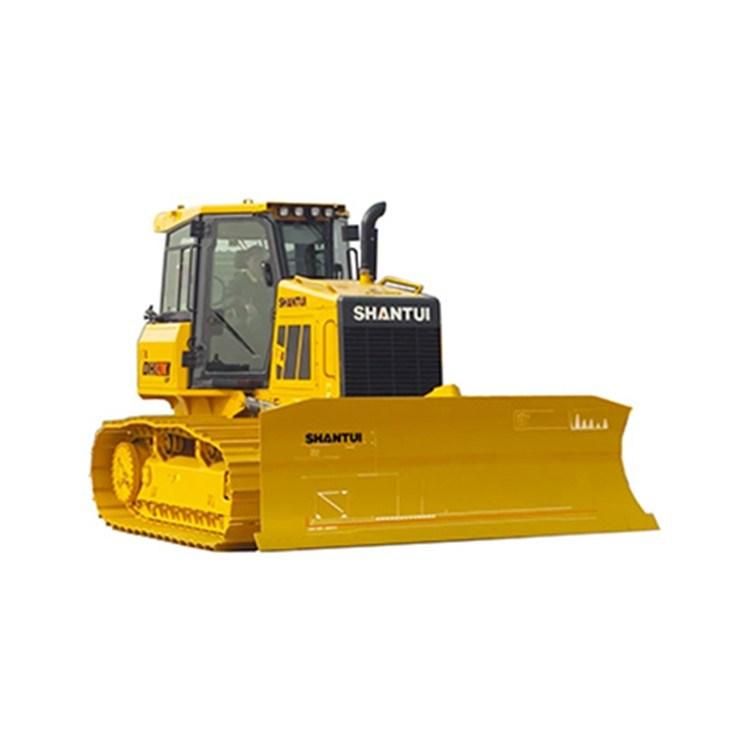

3.Clear Photo:




4.Packing:

5.Our Company:

We supply all kinds of Machinery & Equipment of most Chinese big brands like, Shantui SEM etc to global market with reasonable price and best service.

Most of products are meet with ISO,CE,EPA,GOST standards.Our advantages are as following:

1. Professionally export construction machinery and spare parts for more than 10 years to over a hundred countries.
2. Experienced in customs clearance in different ports(countries). Clients type has big contractors, tender, private,rental companies, construction companies etc.
3. Quick delivery time and thoughtful services.
