• Model NO.：TY165-3
• Engine Power：74~147kw
• Certification：CE, ISO9001: 2000
• Condition：New
• Color：Yellow
• Transport Package：Nude
• Specification：5447*3442*3160mm
• Trademark：HBXG
• Origin：China
• HS Code：8429119000
• Production Capacity：350units,Month

Main specificationsOverall dimensions (L×W×H)  5447×3442×3160 mmOperation weight(t)17.55 Flywheel power(kW)121  Max. drawbar pull(kN)139.6Ground pressure (at operating weight)(KPa)68.3Min. ground radium(m )4.0Min. ground clearance(mm)353Grade abilityStraight 30°    Side  25°Diesel engineManufactured factoryWEICHAI POWER CO., LTDModelWD10G178E25Typewater-cooled, single-row, vertical, 4-stroke-cycle, turbo-chargedNumber of cylinders-bore×stroke(mm)6-126×130Total piston displacement (L)10Rated RPM (r/min)1850Rated power( kW)131 Fuel consumption( g/kW·h)≤215Lube oil consumption rate( g/kW·h)≤1.72Max. torque (1000-1200r/min)(N·m)≤830Cooling methodclosed circulation water coolingStarting method(V)by electric at 24Driving SystemTorque converterSingle-stage, three unites structure torque converter,output power is stable with high performance.TransmissionPlanetary, power shift transmission with three speeds forward and three speeds reverse. Speed and direction can be quickly shifted.Travel speed (in theory 1900/min engine speed )GearForwardReverseFirst 0-3.32 km/h0-4.00 km/hSecond 0-6.26 km/h0-7.57 km/hThird0-11.40km/h0-13.87km/hSteeringThe steering clutch is tighten by pressured springs and separated hydraulically with oil-type, multi-powder-metal discs.BrakeThe brakes are oil, two-direction floating band with mechanism foot pedals, hydraulic boosted. The steering and braking can be actuated in one control.Travel operationThe operation of transmission, steering and braking is controlled by single lever. Transmission, left and right steering and braking can be realized for three speeds forward and three speeds reverse by one handle . Final drive

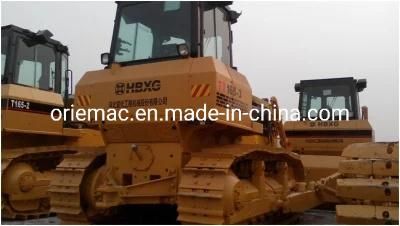

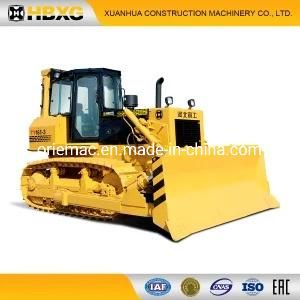

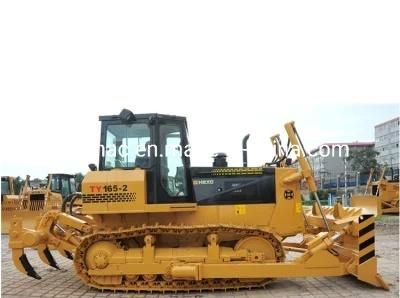

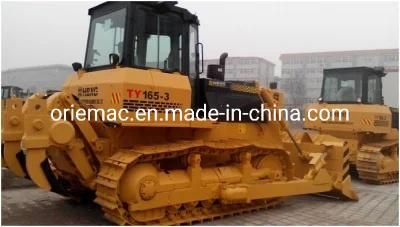

 The final drives are double reduction with spur gear and segment sprocket, which are sealed by duo-cone sealUndercarriage systemThe undercarriage is section steel welded track roller frame with diagonal brace. The track rollers, carrier rollers and front idlers have the same floating seals which are long-service life and seal well.Number of track rollers4 single-flange on each side, 2 double-flange on each sideNumber of carrier roller2 on each sideNumber of front idlerone on each sideTrack typesingle grouser, modular type.Track adjuster typeby hydraulically adjustPitch( mm)203Numbers of shoe38Width of shoe(mm)500Length of track on ground(mm)2570Implement hydraulic systemPump type   two group gear oil pumpPump flow (L/min)Front pump190Pilot pump19System pressure (MPa)2.35Service refillFill Capacity(L)locationRadiator and diesel engine water: 60 Lubricating system of diesel engine   27.5Transmission, bevel gear case    95Final drive(each side)    24Implement hydraulic system  85Fuel tankTrack roller, carrier roller, front idler(each)0.35 Product Show
