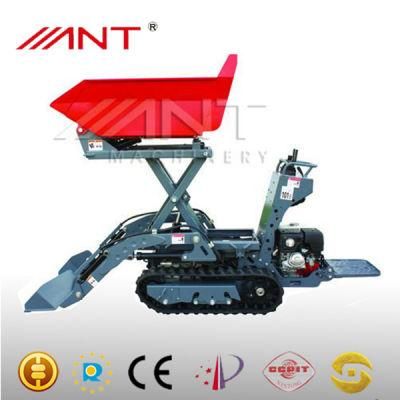

• Model NO.：BY800
• Color：Red
• Moving Type：Crawler Loader
• Dimension：2170*900*1650mm
• Rated Load：800kg
• Warranty：6 Months After Use
• After-Sales Service Provided：Overseas Third-Party Support Available
• Engine：13HP
• Transmission Type：Hydraulic Pump Stepless Speed Changes
• Drum Material：Plastic-Spray
• Delivery Detail：Within 30 Work Days
• Transport Package：Plywood or Retort Stand
• Specification：CE
• Origin：Jiangsu, China (Mainland)
• Production Capacity：200 Piece,Pieces Per Month

Basic Info.

Model NO. BY800 Color Red Moving Type Crawler Loader Dimension 2170*900*1650mm Rated Load 800kg Warranty 6 Months After Use After-Sales Service Provided Overseas Third-Party Support Available Engine 13HP Transmission Type Hydraulic Pump Stepless Speed Changes Drum Material Plastic-Spray Delivery Detail Within 30 Work Days Transport Package Plywood or Retort Stand Specification CE Origin Jiangsu, China (Mainland) Production Capacity 200 Piece/Pieces Per Month

Product Description

Features
·Unique design with humanization.
·The main parts imported from USA with global warranty.

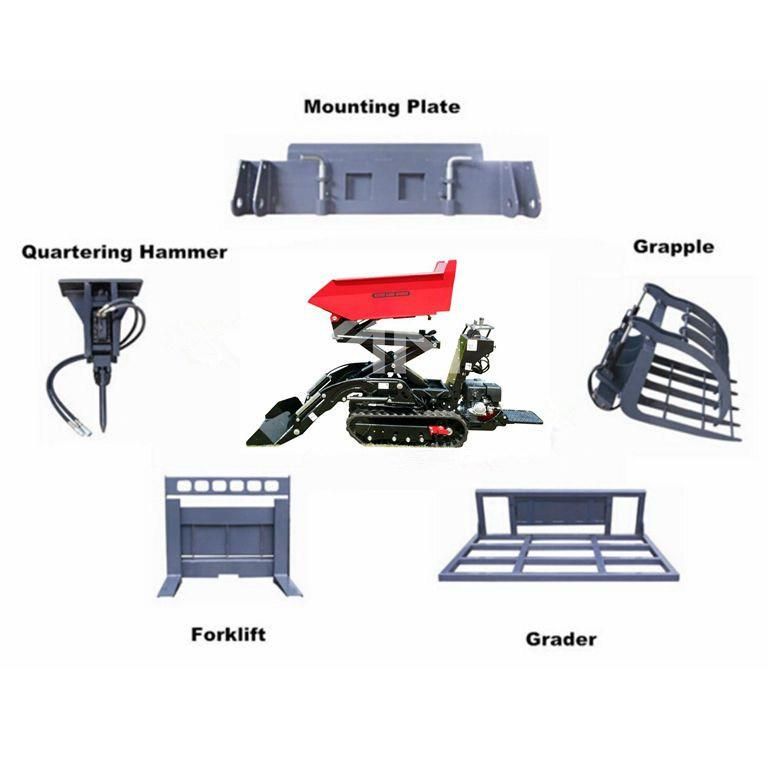

·Multi-functional machine with a variety of optional accessonries.

Detailed Description
·Maximum loading weight is 800kgs.
·Easy and comfortable operation due to the intuitive controls.

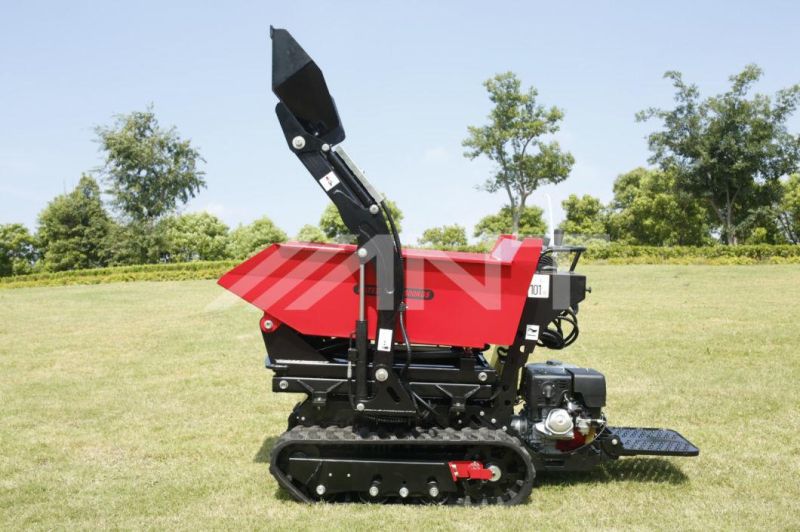

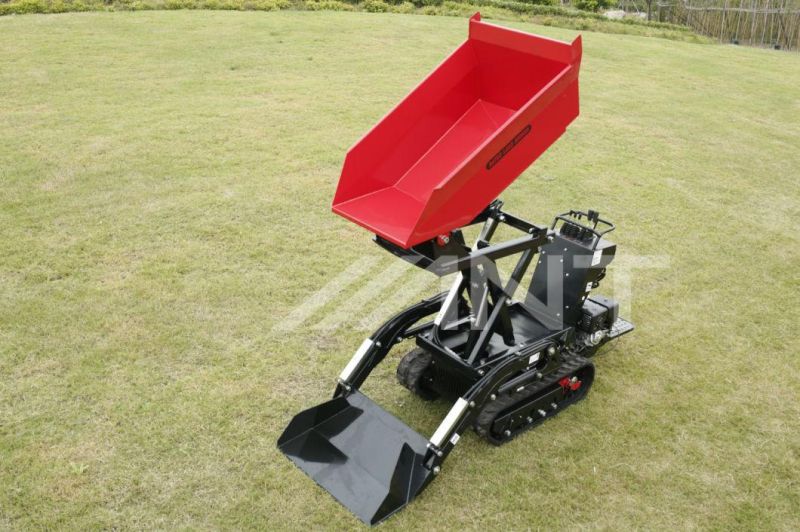

·Self-loading shovel not only can be used as a small excavator but also keep the balance of the machine during unloading.

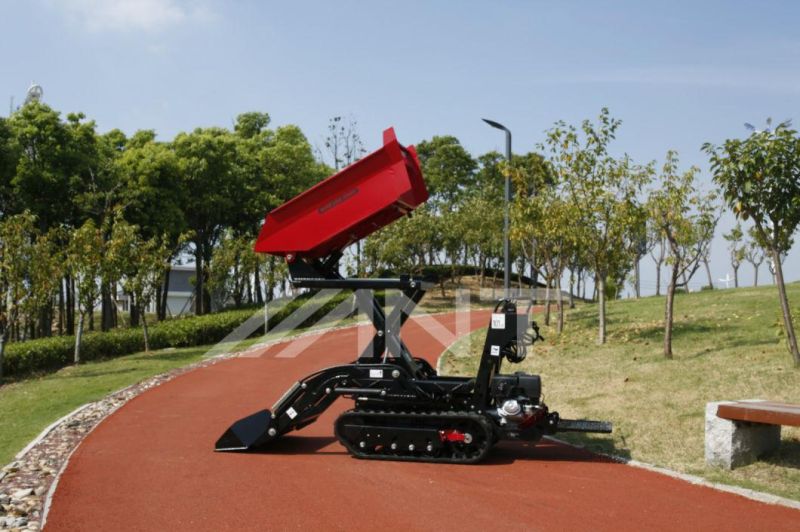

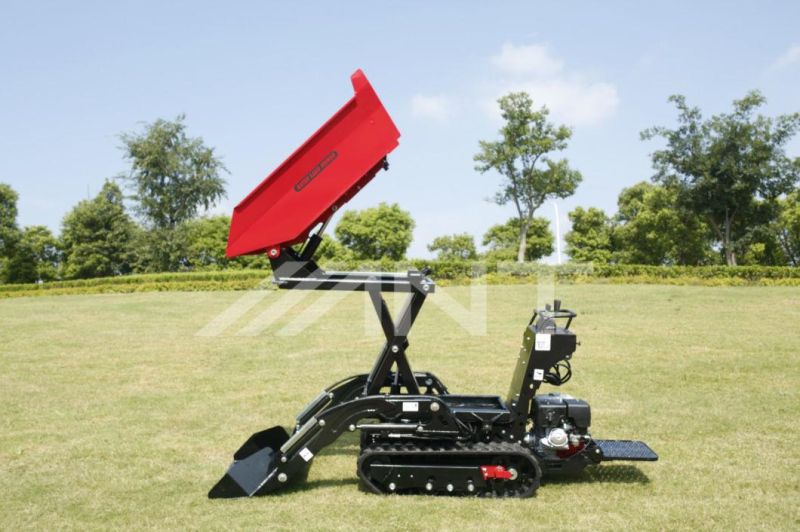

·Lifting height reaches to 1.4m by X-support.
·Easy climbing and stable crossing the obstacles.
·Spot turning ,mini slipping.

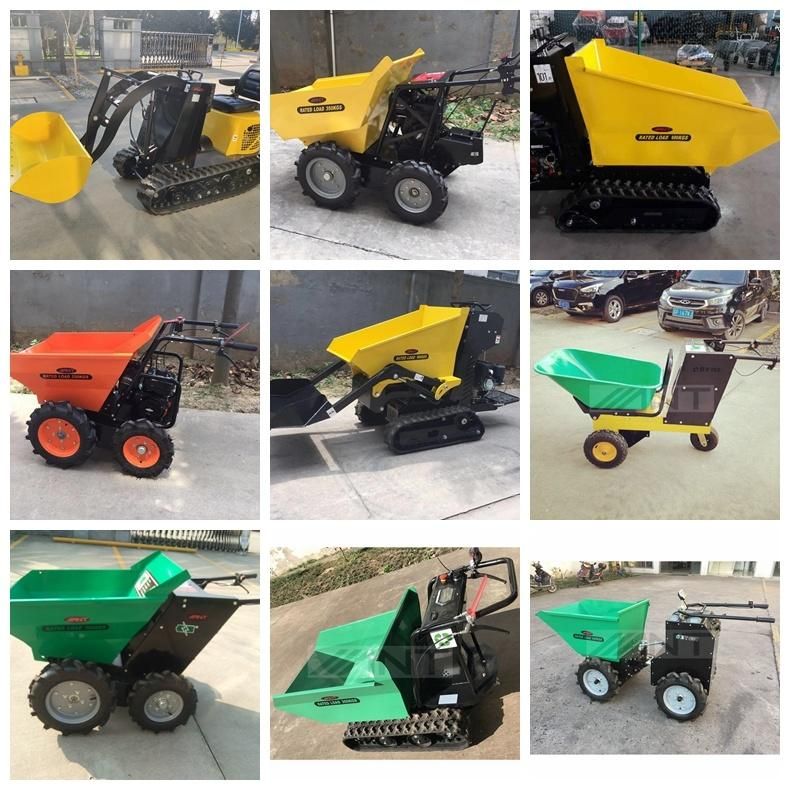

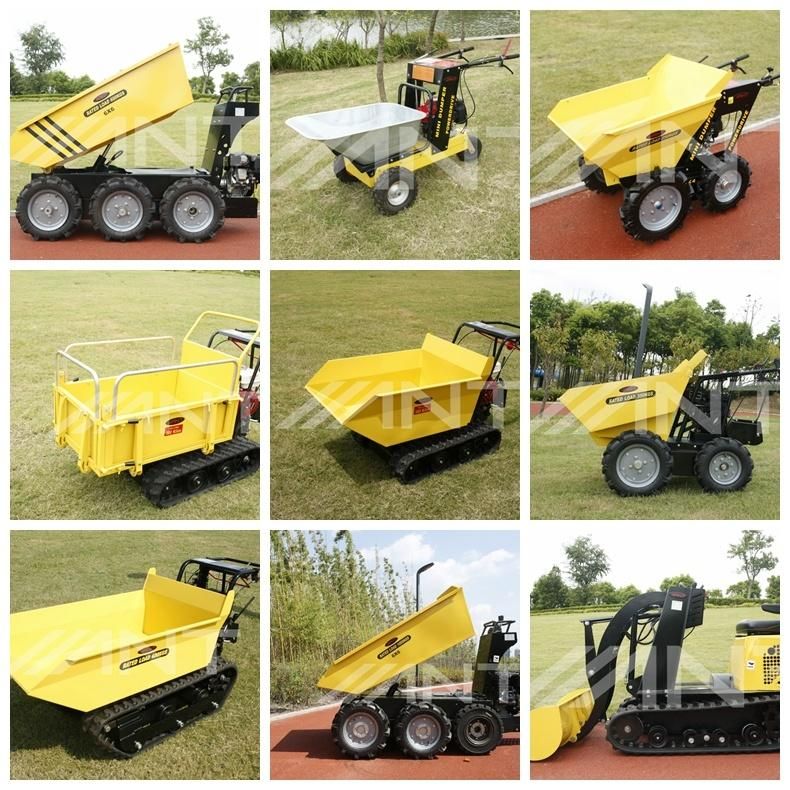

Model	Weight	Dimension	Engine	Loading weight
BY150	86kg	1720*960*670mm	4HP gas engine	150kg
BY250	121kg	1700*890*1050mm	Honda GXV160 5.5HP	250kg
BY250S	121kg	1700*890*1050mm	Honda GXV160 5.5HP	250kg
BY250X(self-unloading)	121kg	1700*890*1050mm	Honda GXV160 5.5HP	250kg
BY300	131kg	1700*890*1050mm	Honda GXV160 5.5HP	300kg
BY300S	131kg	1700*890*1050mm	Honda GXV160 5.5HP	300kg
BY300X(self-unloading)	131kg	1700*890*1050mm	Honda GXV160 5.5HP	300kg
BY300C	175kg	1600*740*820mm	B&S 5.5HP	300kg
BY800	650kg	2170*900*1650mm	Honda GX390 13HP	800kg
BY800S	625kg	2170*900*1170mm	Honda GX390 13HP	800kg
BY800W	600kg	1740*900*1170mm	Honda GX390 13HP	800kg
BY1000(three sides unload)	600kg	2170*900*1550mm	Honda GX390 13HP	1000kg
BY1000M	800kg	2300*900*1470mm	Honda GX390 13HP	1200kg

*Q:What's your MOQ of this term?
  A:1 unit

*Q:Could you stick customer's brand on the products?
  A:Of course,we welcome the OEM orders.

*Q:How long is your warranty?
 A:6 months after use or 1 year after leave factory.

*Q:What's your packing?
 A:Solid carton,steel frame with carton cover or wooden case

*Q:What's your payment method?
 A:T/T 30% deposit,the balance against the copy of B/L Or L/C at sight

*Q:What's your delivery time?
 A:Delivery timely about 15-20 days after receiving the deposit.Please check with us before your order.

*Q: What's your payment terms?
 A:Our payment term is 30% TT in advance, the balance paied off before the goods deliveried to port.
