• Model NO.：BY300C
• Warranty：6 Months After Use or 1 Year After Leave Factory
• Transmission Type：Mechanical Transaxle
• Max Pressure Bar：150bar(2180psi)
• Max Travel Speed：0-4.8km,H(0-3.9mph)
• Coller System Oil：Air-Cooled
• Transport Package：Plywood Case or Retort Stand
• Trademark：ANT
• Origin：Jiangsu China (Mainland)
• Production Capacity：300 Unit,Units Per Month

Basic Info.

Model NO. BY300C Warranty 6 Months After Use or 1 Year After Leave Factory Transmission Type Mechanical Transaxle Max Pressure Bar 150bar(2180psi) Max Travel Speed 0-4.8km/H(0-3.9mph) Coller System Oil Air-Cooled Transport Package Plywood Case or Retort Stand Trademark ANT Origin Jiangsu China (Mainland) Production Capacity 300 Unit/Units Per Month

Product Description

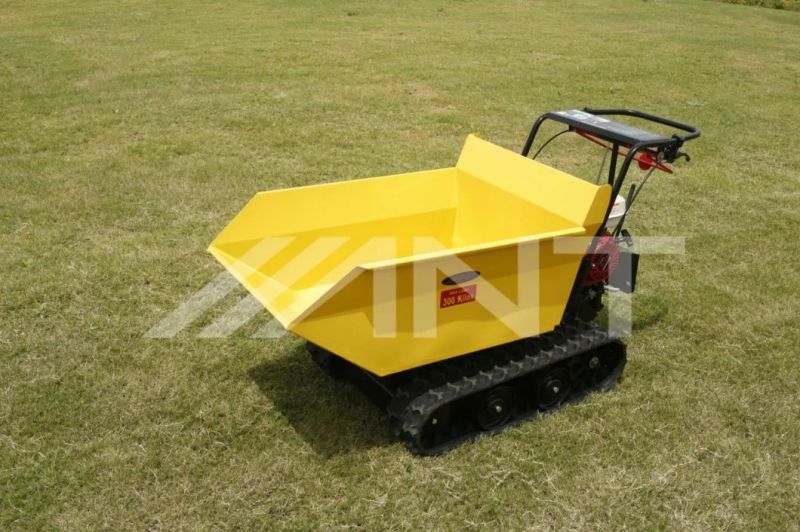

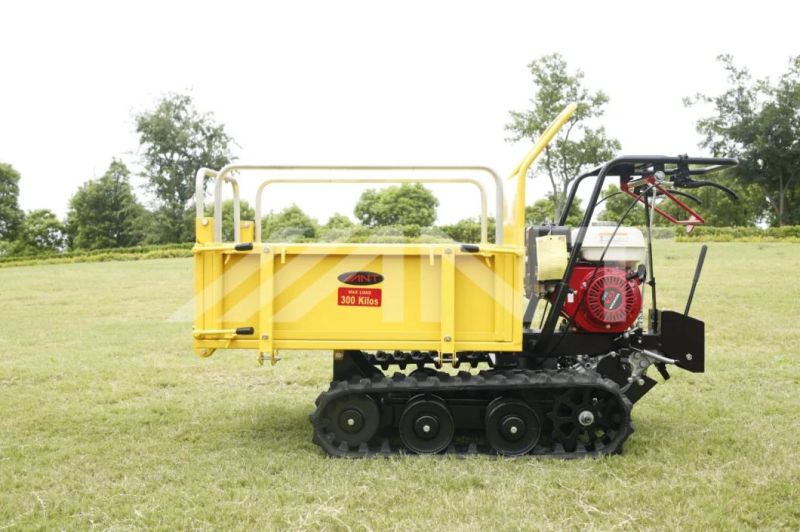

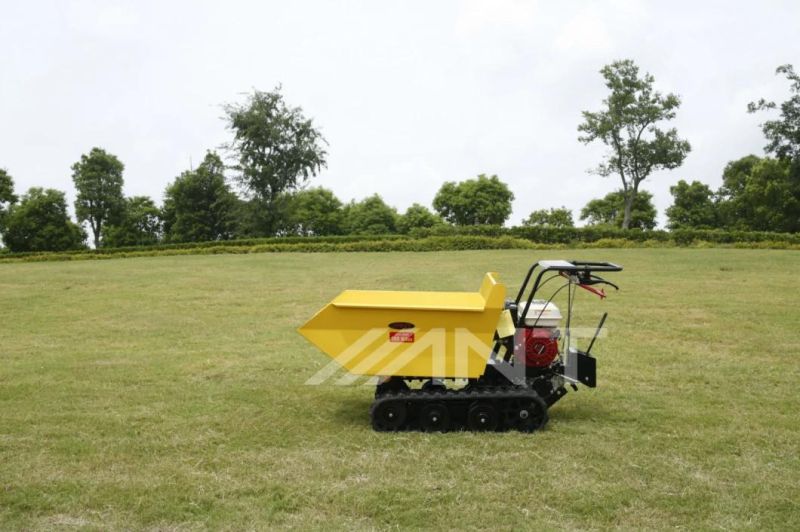

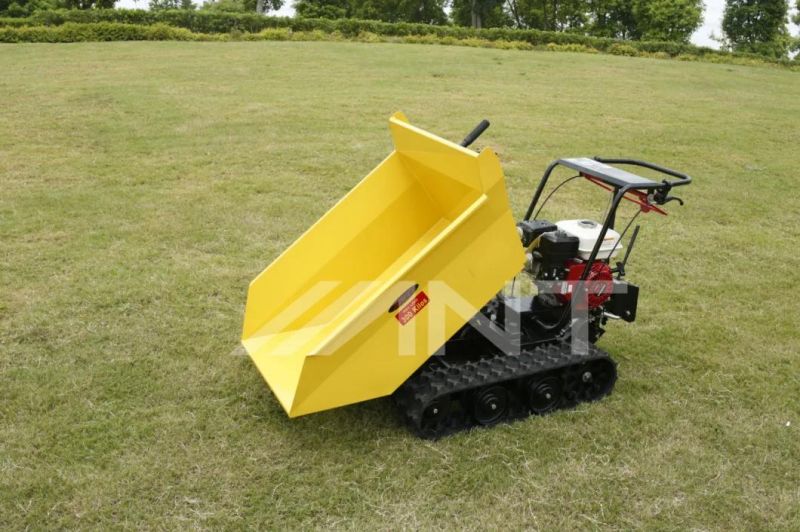

This model is mechanical design and crawler driven.

The max loading weight is 300kgs.

It's powerful for tough outdoor sites, carrying bricks, sand, stones, wood, crops, fruits around various sites.

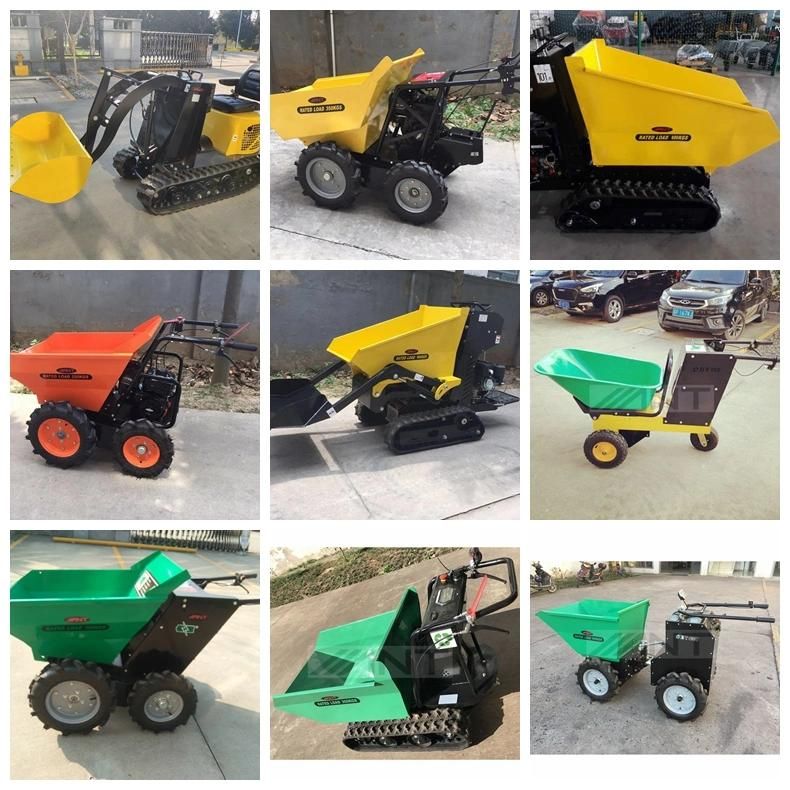

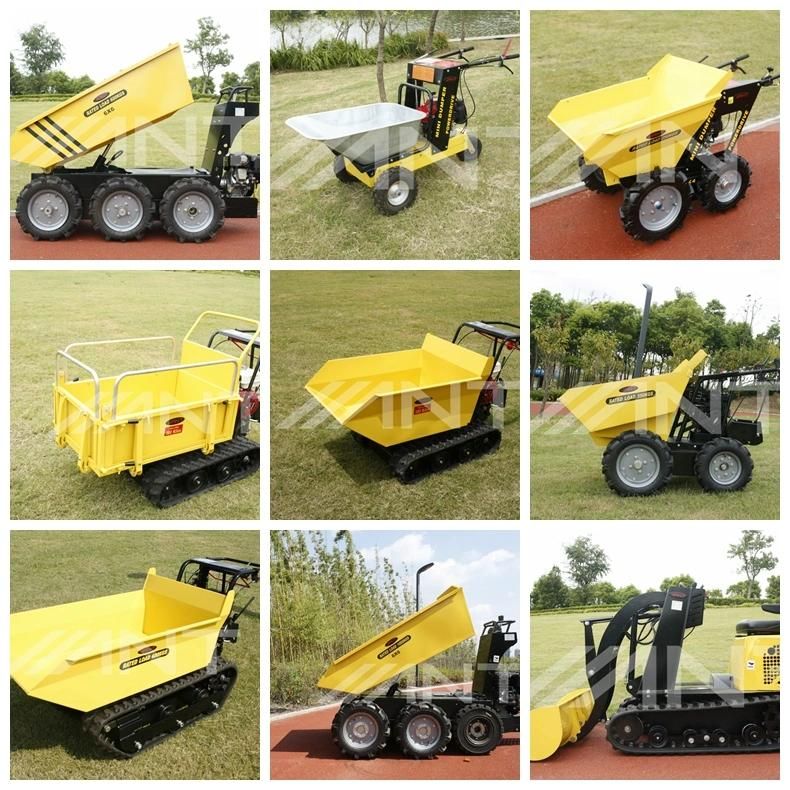

Other types of power barrow

Model	Weight	Dimension	Engine	Loading weight
BY150	86kg	1720*960*670mm	4HP gas engine	150kg
BY250	121kg	1700*890*1050mm	Honda GXV160 5.5HP	250kg
BY250S	121kg	1700*890*1050mm	Honda GXV160 5.5HP	250kg
BY250X(self-unloading)	121kg	1700*890*1050mm	Honda GXV160 5.5HP	250kg
BY300	131kg	1700*890*1050mm	Honda GXV160 5.5HP	300kg
BY300S	131kg	1700*890*1050mm	Honda GXV160 5.5HP	300kg
BY300X(self-unloading)	131kg	1700*890*1050mm	Honda GXV160 5.5HP	300kg
BY300C	175kg	1600*740*820mm	B&S 5.5HP	300kg
BY800	650kg	2170*900*1650mm	Honda GX390 13HP	800kg
BY800S	625kg	2170*900*1170mm	Honda GX390 13HP	800kg
BY800W	600kg	1740*900*1170mm	Honda GX390 13HP	800kg
BY1000(three sides unload)	600kg	2170*900*1550mm	Honda GX390 13HP	1000kg
BY1000M	800kg	2300*900*1470mm	Honda GX390 13HP	1200kg
