Highway Guardrail Pile Driver and Helical Piling Machine to Europe
Ji Ning Hengwang Mining Machinery Co., Ltd.- Type：Vibration Piling Machine
- Pressure Pile Driver Type：Hydraulic Pile Driver
- Pile Hammer Type：Hydraulic Hammer
- Power Source：Diesel
- Motor Power：40kw
- Noise：Without Noise
Base Info
- Certification：CE, ISO 9001:2000, ISO 9001:2008
- Condition：New
- Name：Guardrail Pile Driver
- Application：Guardrail, Fence, Highway
- Engine Power：40kw
- Pile：Round or Square Steel Pile
- Power Head Model：68#
- Drillig Diameter：0-250mm
- Drill Depth：2500mm
- Pile Diameter：50-260mm
- Pile Max.Length：2800mm
- Geology：Soil and Rock
- Transport Package：20" or 40" Container
- Specification：5000*2000*2700mm
- Trademark：Hengwang
- Origin：Shandong, China
- HS Code：8430100000
- Production Capacity：500 Sets Per Month
Description
Basic Info.
Certification CE, ISO 9001:2000, ISO 9001:2008 Condition New Name Guardrail Pile Driver Application Guardrail, Fence, Highway Engine Power 40kw Pile Round or Square Steel Pile Power Head Model 68# Drillig Diameter 0-250mm Drill Depth 2500mm Pile Diameter 50-260mm Pile Max.Length 2800mm Geology Soil and Rock Transport Package 20" or 40" Container Specification 5000*2000*2700mm Trademark Hengwang Origin Shandong, China HS Code 8430100000 Production Capacity 500 Sets Per MonthProduct Description
highway guardrail pile driver and helical piling machine to Europe
1, the host model: the domestic standard 20 loader.
2, construction geology: highway, railway guardrail pile driver, (plus air compressor can play rock).
3, the standard diameter: standard diameter 114-180mm, the largest aperture 200mm.
4, configuration air compressor: Recommended 8 cubic air compressor, for the duration requirements, please configure a large air compressor, powerful, fast.
5, the product advantages: four-wheel drive, turbocharged, powerful.
Pile driver Parameter
| Model | HW-930 |
| Diesel power(KW) | 40 |
| Pile diameter mm | 114-220 |
| Pile length m | 2.6-3.3 |
| Hydraulic system flow(L/Min) | 80-110 |
| Rated system pressure(Mpa) | 15 |
| wheel track (M) | 1620 |
| wheel base(M) | 2070 |
| Dimension(L*W*H) | 3200*2000*2900 |
| Weight(Kg) | 3400 |
| Pile hydraulic hammer weight((Kg) | 80 |
| Hydraulic hammer frequency(Bpm) | 500-900 |
| Hydraulic hammer working flow(L/min) | 40-70 |
| Hydraulic hammer working pressure(Mpa) | 11-14 |
| Drill power unit weight(Kg) | 60 |

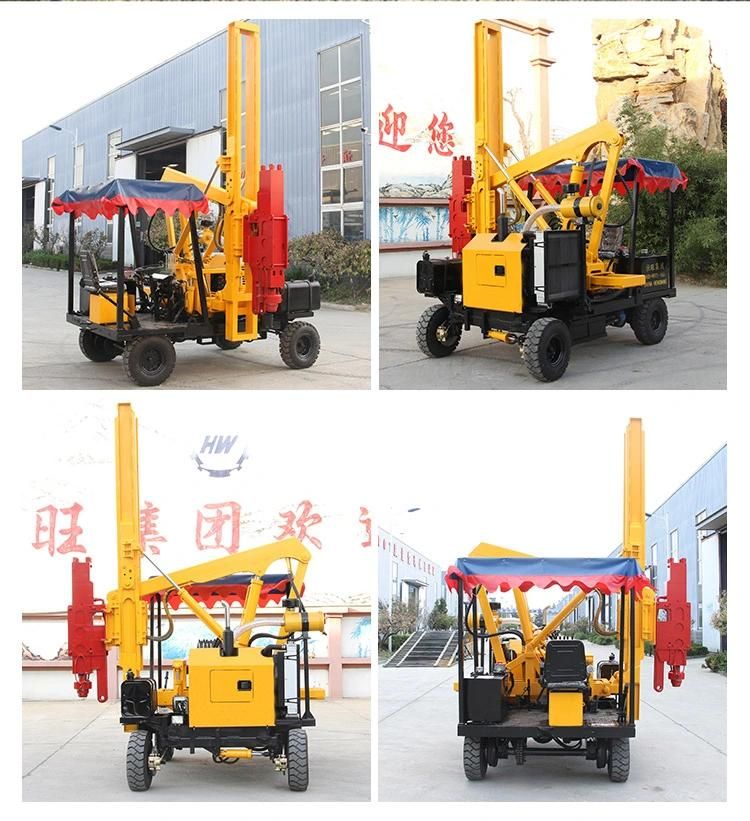

Machine pictures
