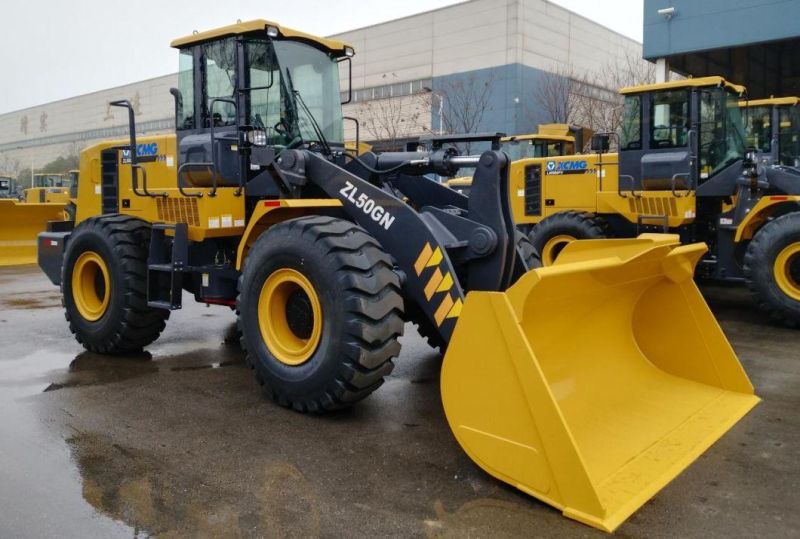

• Model NO.：ZL50GN
• Type：Medium-sized Loader
• Wheel Base：3300mm
• Machine Weight：17500kg
• Dump Clearance at Maximum Lift：3100~3780mm
• Rated Power：162kw
• Transport Package：Comply with Export Packaging Requirements
• Specification：8225*3016*3515mm
• Trademark：XCMG
• Origin：Xuzhou, Jiangsu, China
• Production Capacity：1000 Unit,Units Per Year

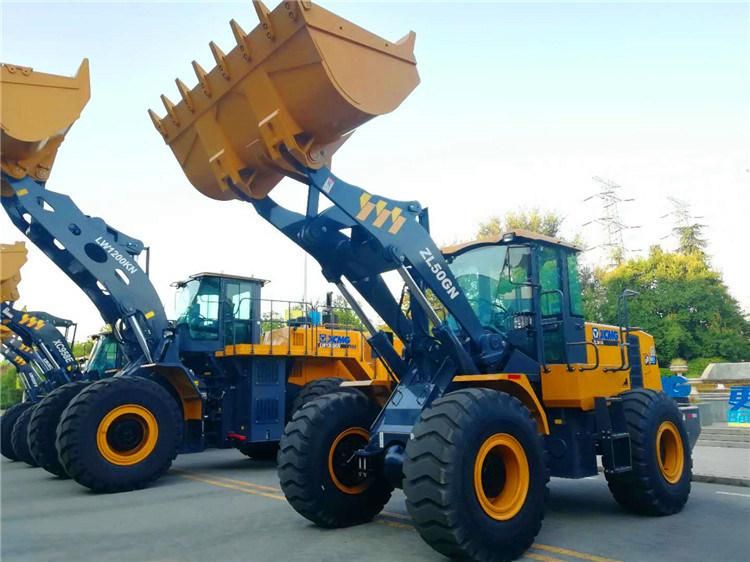

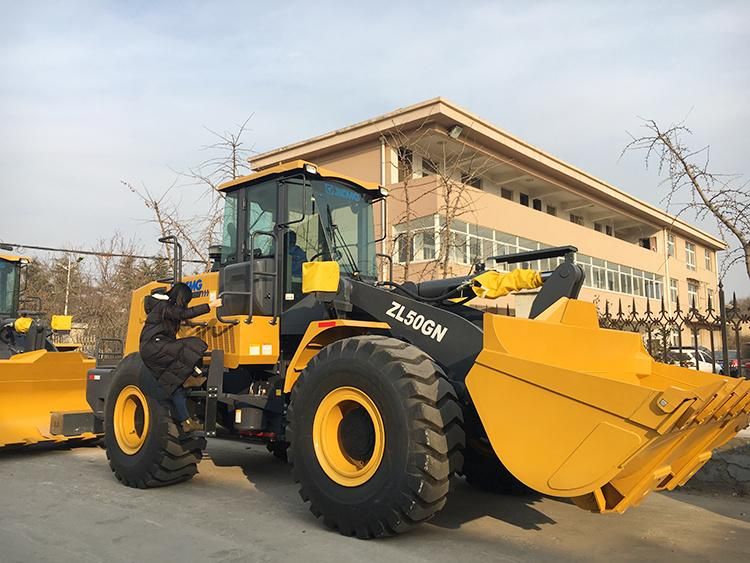

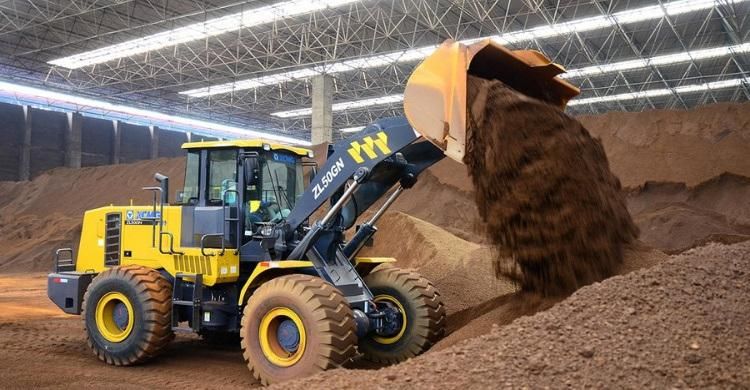

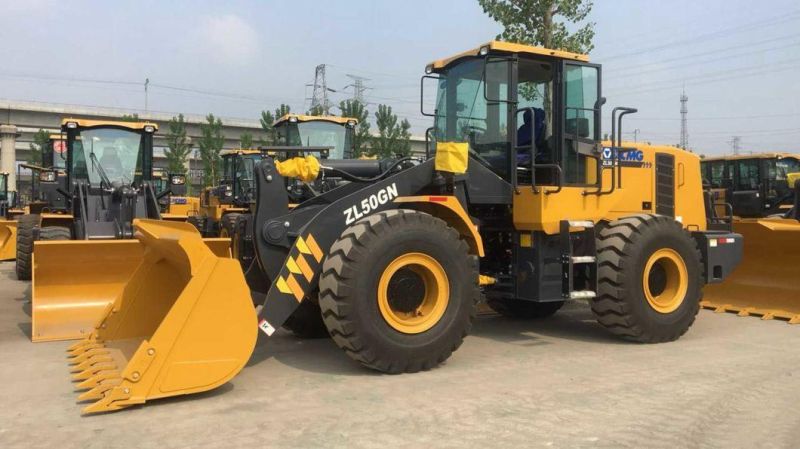

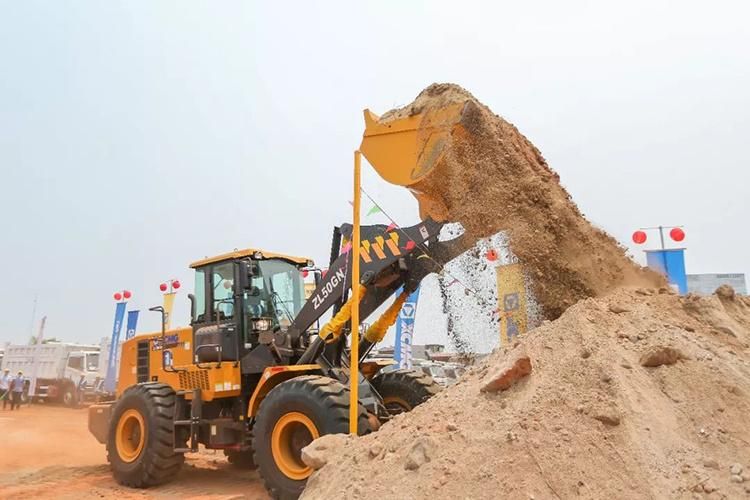

Product ParametersDescriptionUnitParameter valueRated operating loadkg5000Bucket capacitym³2.5~4.5Machine weightkg17500±300Dump clearance at maximum liftmm3100~3780Reach at maximum liftmm1100~1220Wheel basemm3300Treadmm2250Max.breakout forcekN175±5Max.horse powerkN160±5Hydraulic cycle time-raises≤6Total hydraulic cycle times≤10.5Min. turning radius over tyresmm5925±50Articulation angle°38Gradeability°30Tyre size 23.5-25-16PROverall machine dimension L×W×Hmm8225*3016*3515Model WD10G220E21Rated PowerkW162Travel Speed 1-gear(F/R)km/h13/17                       2-gear(F)km/h41Detailed Photos
