• Model NO.：GR100
• Walking Mode：Wheeled
• Type：Small Grader
• Operating Weight(Kg)：7000 Kg
• Drawbar Pull(Kn)：82
• Rated Power(Kw/Rpm)：75kw (2400r,Min)
• Travelling Speed ,Forward：5,8,11,17,24,38km,H
• Tractive Force(F=0.75)：39.2n
• Max. Gradeability：20%
• Working Hydraulic Pressure：16 MPa
• Maximum Lift Above Ground：450 mm
• Maximum Blade Position Angle：90
• Circle Reversing Rotation：360
• Engine Model：J-Xzgr100-4bt3.9
• Tire Inflation Pressure：300kpa
• Transport Package：Nude
• Specification：6880*2375*3150mm
• Origin：Jiangsu, China
• HS Code：8429209000
• Production Capacity：100,Month

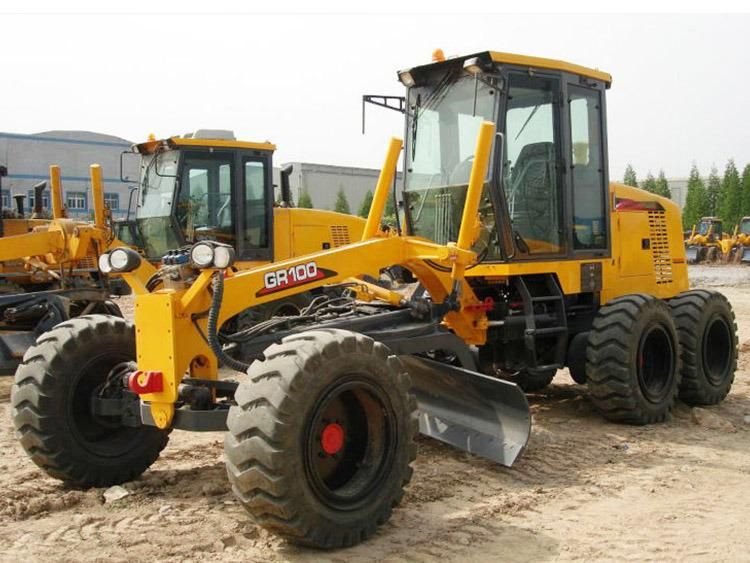

1.GR100 adopts Dong-feng Cum-mins 4BTA3.9-C100-II (SO11847) turbocharged diesel engine with large output torque and power reserve coefficient and low fuel consumption.
2.The torque converter has a large torque coefficient, a high efficiency, a wide effective area, and a good joint operation
characteristic with the engine.
3.The drive axle is a dedicated xugong axle.
4.Rear axle main drive is equipped with "NO-SPIN" without self-locking differential. When one wheel slips, the other wheel can still transmit its original torque.
5.The service brake is a dual-circuit hydraulic brake system that acts on the two rear wheels of the grader and is safe and
reliable.
6.The sealed cab is used to configure the air conditioning system. The interior parts are sleek and compact plastic parts, which fully reflects the needs of ergonomics.
