• Model NO.：600*125*62
• Material：Rubber and Steel
• Width：600mm
• Pitch：125mm
• Links：62(Can Be Customized)
• Length：7750mm
• Color：Black
• Exported Markets：Global
• Transport Package：Bare Packing or Wooden Pallets
• Specification：600*125*62
• Trademark：No Marks or As Buyer′s Requests
• Origin：Shanghai, China
• HS Code：8431499900
• Production Capacity：1000PCS,Month

Basic Info.

Model NO. 600*125*62 Material Rubber and Steel Width 600mm Pitch 125mm Links 62(Can Be Customized) Length 7750mm Color Black Exported Markets Global Transport Package Bare Packing or Wooden Pallets Specification 600*125*62 Trademark No Marks or As Buyer′s Requests Origin Shanghai, China HS Code 8431499900 Production Capacity 1000PCS/Month

Product Description

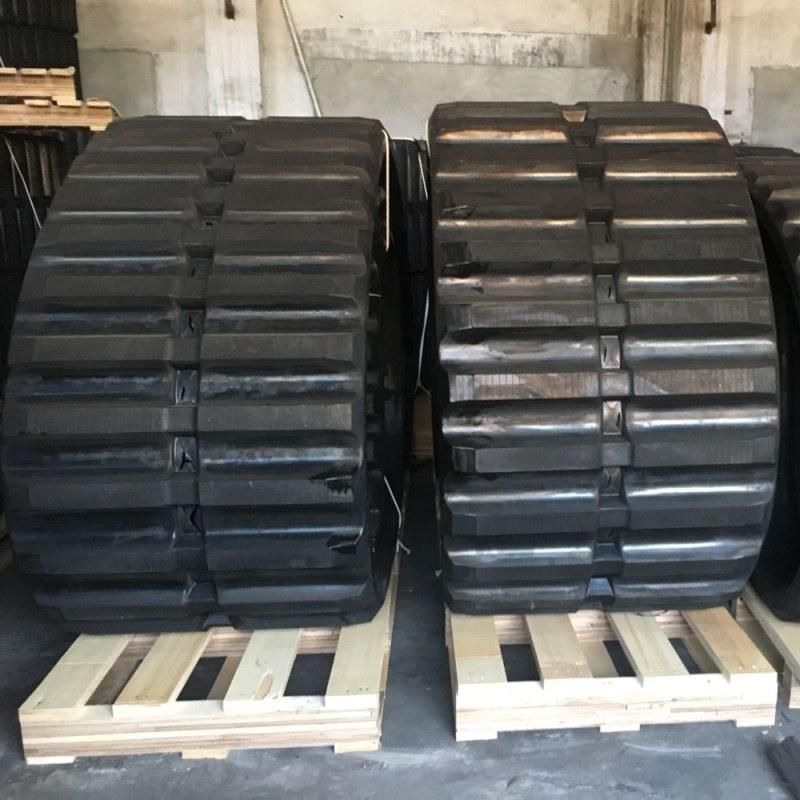

Hanix Rt800 Rubber Track 600X125X62 for Dumper:


Applicable machines	various kinds of dumpers
Material	rubber and steel
Specification	600*125*62
Installation position	Installed on the dumpers

Width: 600mm
Pitch: 125mm
Links: 62(Can Be Customized)
Over length: 7750mm
Warranty: Guarantee 12 months under normal use




Applicable models:


MODEL	ORIGINAL SIZE
RT1000 (HANIX)	600X125X62
RT800 (HANIX)	600X125X62
RT1000 (NISSAN)	600X125X62
RT800 (NISSAN)	600X125X62
LD400 (CATERPILLAR)	600X125X64
LD400 (MITSUBISHI)	600X125X64
MX110 (MOROOKA)	650X125X64

The characteristics of rubber tracks:

1. Rubber tracks cause less damage to roads than steel tracks, and less rutting on soft ground than steel tracks .

2. A benefit to equipment operating in congested areas, rubber tracks make less noise than steel tracks .

3. Rubber tracks permit machines to travel at a higher speed than steel tracks .

4. Rubber tracks insulated machine and operator from vibraion, extedin the service life of machine and decreasing operator's fatigue.

5. The ground pressure of rubbr tracks equipped machinery can be fairly low, about 0.14-2.30 kg/m2, a major reason for its use on wet and soft terrain.

6. The added traction of rubber tracked vehicles permits them to pull twice the load of wheeled vehicles of the same weight.

7. Rubber tracks' pulling performance being twice that of wheels, it permits the lighter vehicles equip with rubber track to do the same pulling work than that of wheeled vehicles.


The notices of using rubber tracks

1. Adjust the tension of the rubber crawler so that the height, the variable range is 10-20mm when the machine is lifted. Readjust when the tension decreases. (Be careful because the rubber crawler may come off if the tension is too low).

2. Avoid projection from the frame around the rubber crawler, especially on its inner circumference. (Rubber crawlers are easily deformed; If it comes into contact with the frame, an accident such the rubber being cut can occur).

3. Avoid sharp projections when traveling.

4. Avoid turning too fast on concrete roads with a high coefficient of frction because this can cause accidents such as cutting the rubber.

5. Be careful that no oil, etc adheres to the rubber track. If it does, wipe it off immediately.

6. When storing for long periods, keep indoors, away from direct sunshine and rain.

7. Replace as soon as possible when abrasion of sprockets is observed

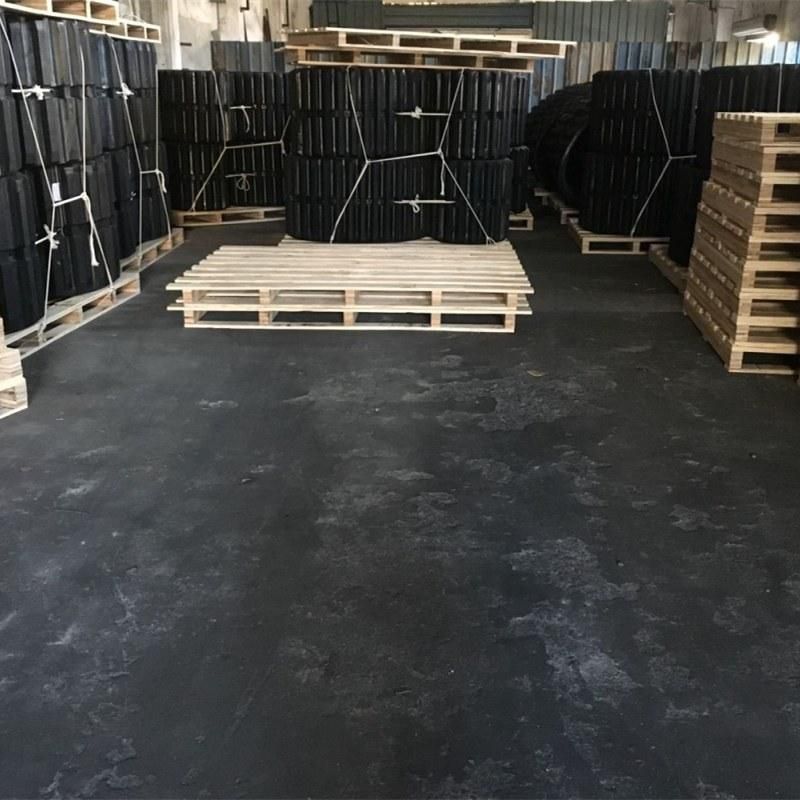

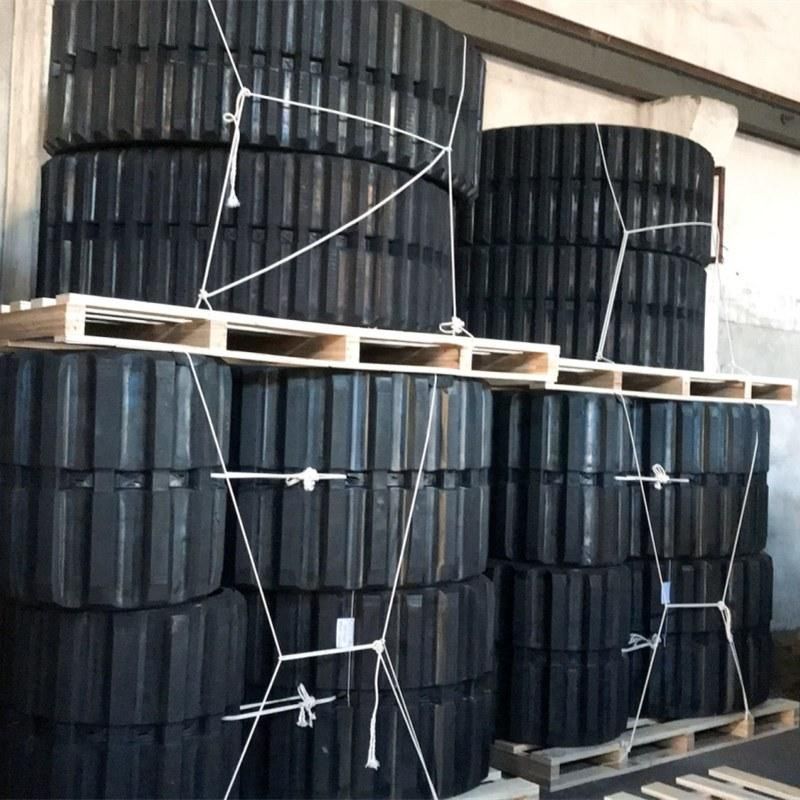

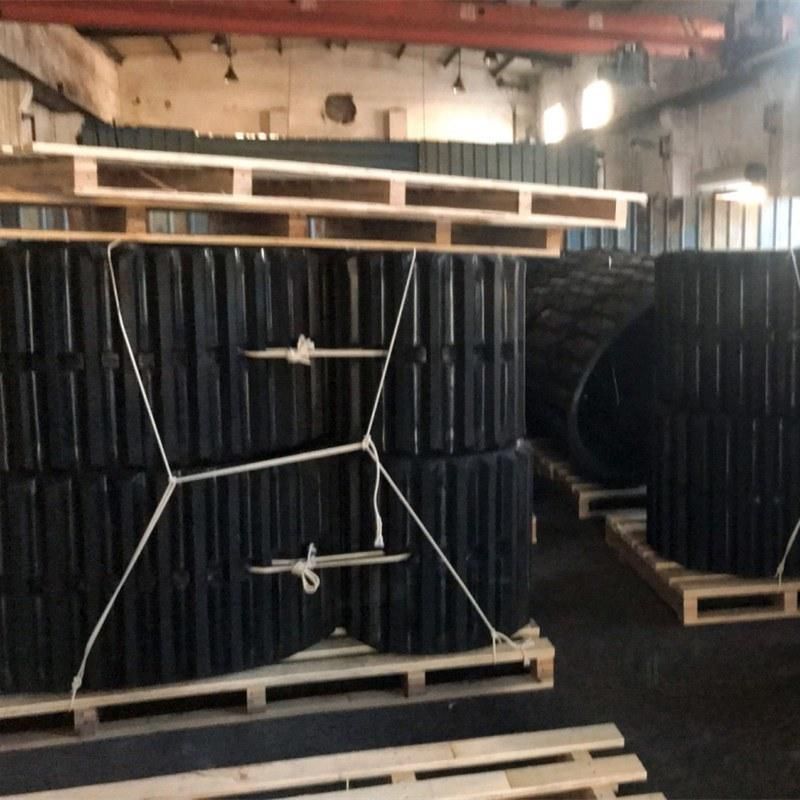

Warehouse:






Quality Control:

1.Ex works Inspection

2.Products Audits/Examination(Strict inspection according to customer's request)

3.Production Procedure Audit/Examination(Entire Procedure Control)

4.Raw material Inspection/Examination;Purchased Parts Inspection(Including All Purchased Material)

Rubber track warranty

2 year(18 months) or 1500 hours working time,If there is any quality problem,during the warranty period,we are responsible for the replacement of the new rubber track,just need to provide photos of the tracks as they sit on the machine and serial number on the tracks.

Company introduction:

Serving since 2000,POOYERT has been supplying the construction industry with premium grade replacement rubber track and rubber pads that can be widely applied in construction machinery,agricultural machinery and other specialized vehicles.

Made of all natural rubber and high quantity synthetic rubber compounds including carbon black,and continuous steel cords that are protected with thick vulcanized rubber,POOYERT leads the way in today's modem track manufacturing.POOYERT tracks are produces under strict quality guidelines and have ISO9001 Accredited Certification.
