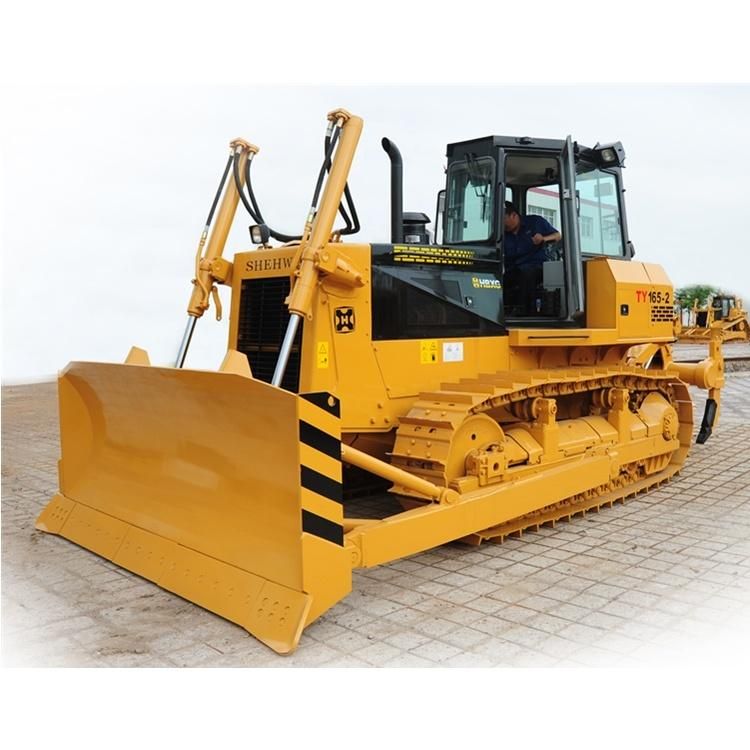

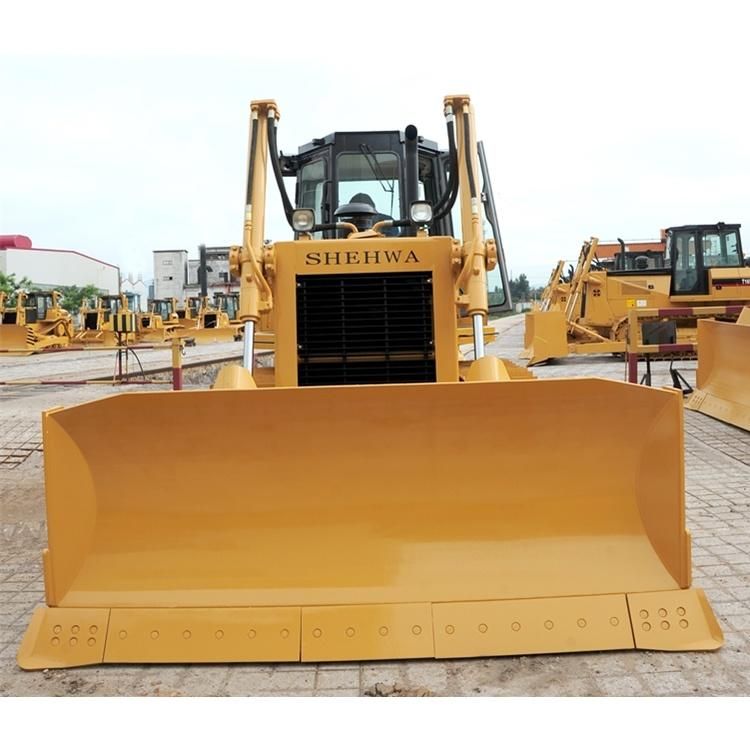

Hbxg 165HP Ty165-3 Hydraulic Transmission Bulldozer
Maxizm Construction Machinery (Qingdao) Co., Ltd.- Type：Universal Type
- Transmission：Power Transmission
- Walking Mode：Crawler
- Load and Unload Method：Front Discharge
- Engine Power：147~515kw
- Certification：ISO9001: 2000
Base Info
- Model NO.：TY165-3
- Condition：New
- Color：Yellow
- Product Name：Hbxg 165HP Ty165-3 Hydraulic Transmission Bulldoze
- Colour：Yellow-Color
- Keywords：Dozer Blade
- Key Words：Chinese Bulldozer
- Attachment：Bucket
- Dozer Attachment：Snow Blade
- Advantages：Maintenance Parts
- Application：Contruction
- Usage：Forestry Equipment
- Product：Chinese Brand
- Transport Package：Nude Package
- Specification：7751*3940*3549mm
- Trademark：HBXG
- Origin：Shandong
- Production Capacity：1000unit,Year
Description
TY165-3 Bulldozer
Unit
165HP
Model
TY165-3
L*W*H(Ripper not included)
mm
5447*3297*3160
Operating weight(Ripper not included)
kgs
17550
Engine Model
WD10G178E25
Rated Power
kw/rpm
131/1850
Gradeability(Longitudinal/Transverse)
°
30/25
Blade type
Straight tilt blade
Blade width
Dozing capacity
Max. drop below ground of blade
mm
m3
mm
3297
4.6
420
Max. lift height of blade
mm
900
Ripper type
Three shanks ripper
Max. digging depth of Ripper
mm
550
Max. lifting height of ripper
mm
510
Min. ground clearance
mm
352.5
Number of carrier roller(each side)
2
Number of track roller(each side)
6
Number of track shoe(each side)
38
Width of track shoe
mm
500
Track gauge
mm
1880
Ground lenth/Ground pressure
mm/mpa
2570/0.067
Pitch of track
mm
203
Forward speed
km/h
1st 0~3.32
2nd 0~6.26
3rd 0~11.4
Reverse speed
km/h
1st 0~4.0
2nd 0~7.57
3rd 0~13.87
