• Model NO.：SEM510
• Automatic Grade：Automatic
• Product Capacity：>400t,h
• Certification：ISO9001: 2000, CE
• Condition：New
• Rate Power：97.5kw
• Operating Weight：10000kg
• Grade Ability：45
• Static Linear Load：217 N,Cm
• Travel Speed 1st Gear：2200r,Min
• Diesel Model：4btaa3.9-C
• Keywords：Road Construction Euipments
• Unique Selling Point：Fully Hydraulic System
• Usage：Construction Sites
• Blade Capacity (M3)：11.7
• Compacting Width (mm)：3835
• Front Axle Weight (Kg)：13000
• Steel Drum Diameter (mm)：1700
• Oriental Vibration Amplitude：0.62 mm
• Drive Type：Hydraulic Transmission
• Transport Package：Nude
• Specification：5, 815*2, 290*3, 130 mm
• Trademark：Shantui
• Origin：China
• Production Capacity：5000

Basic Info.

Model NO. SEM510 Automatic Grade Automatic Product Capacity >400t/h Certification ISO9001: 2000, CE Condition New Rate Power 97.5kw Operating Weight 10000kg Grade Ability 45 Static Linear Load 217 N/Cm Travel Speed 1st Gear 2200r/Min Diesel Model 4btaa3.9-C Keywords Road Construction Euipments Unique Selling Point Fully Hydraulic System Usage Construction Sites Blade Capacity (M3) 11.7 Compacting Width (mm) 3835 Front Axle Weight (Kg) 13000 Steel Drum Diameter (mm) 1700 Oriental Vibration Amplitude 0.62 mm Drive Type Hydraulic Transmission Transport Package Nude Specification 5, 815*2, 290*3, 130 mm Trademark Shantui Origin China Production Capacity 5000

Product Description

10 Ton SEM510 Hydraulic Vibratory Single Drum Road Roller


Technical Features

High Efficiency

• Load sensing vibration hydraulic, propel system reduce system heat and fuel consumption
• Dual frequency and amplitude with close-center vibration hydraulic system, easy to operate and improve productivity
• Optimized travel speed with the vibration frequency
• Rear axle equipped with Limited Slip Differential (LSD) for better maneuverability

Safety

• New dashboard with 3 stage alarm monitoring
• Automatic Parking brake
• Neutral start protection

Reliability

• Advanced vibration system, full sealed housing to extend bearing life
• World class piston pump and motor for vibration and propel hydraulic system
• Anti dust adopt and switch for electric system capacity IP67

Technical parameters


tem	Parameters	Unit
Engine model	-
Rated power	97.5	kW
Rated speed	2200	r/min
Emission	China StageII
Composite Work Cycle Fuel Consumption (l/hour)	560/1400-1600	N.m/rpm
Machine Mass w/Std Config	10000	kg
Weight at Drum w/Std Config	5900	kg
Weight on Rear Axle	4100	kg
Static Linear Load	217	N/cm
Max. Grade Ability w/o vibbration	45	%
Articulated Angle	33±1	°
Turning Radius Inside Drum Edge	5990	mm
Compaction Width	2130	mm
Lo Range	0-5.5	km/h
Hi Range	0-12	km/h
Full Turn Time	6±0.5	s
Freqency-Hi/Lo	33/30	Hz
Amplitude-Hi/Lo	0.90/1.80	mm
Centrifugal Force-Hi/Lo	130/215	kN
Machine Dimensions[L*W*H]	5815*2290*3130	mm
Oscillation Angle	10±1	°
Wheelbase	2900	mm
Tread Width	1600	mm
Drum Width	2130	mm
Drum Diameter	1590	mm
Tire Pressure Setting	0.35	Mpa

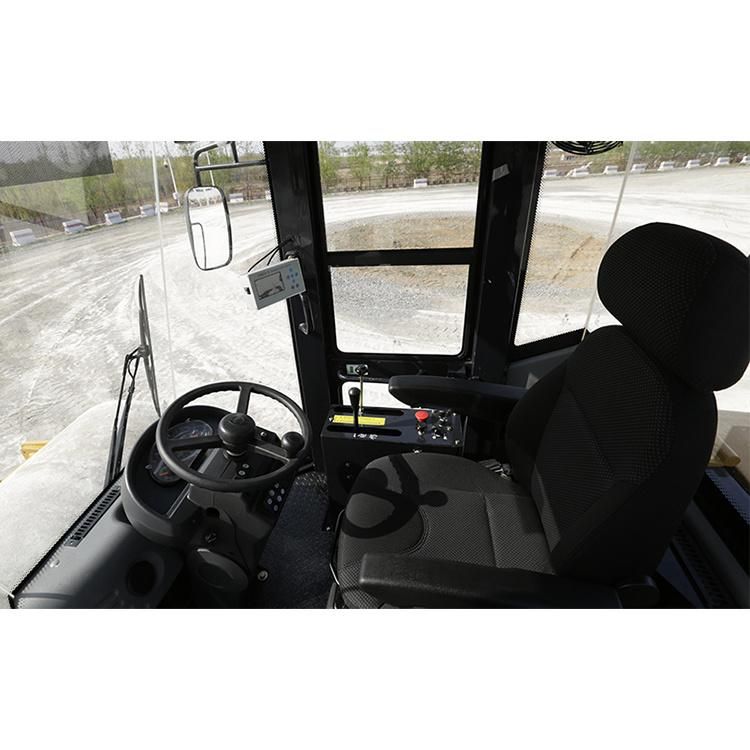

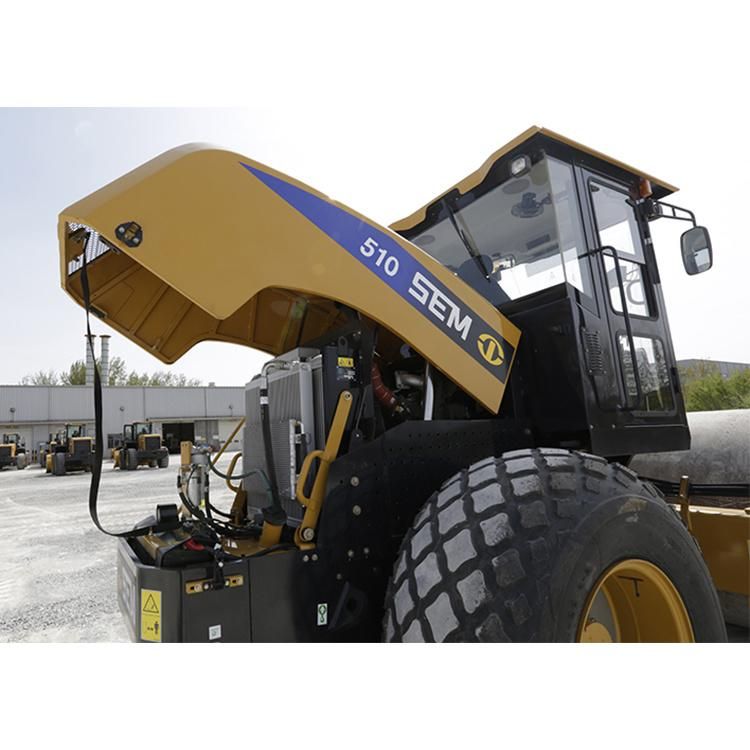

Detailed Images

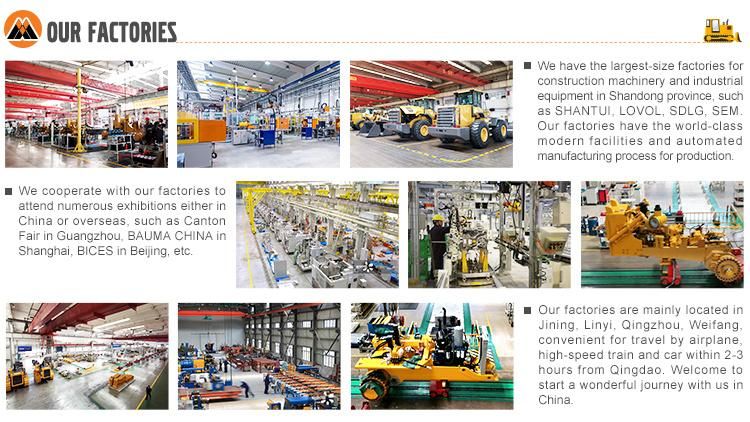

Company Profile
