• Model NO.：Xm130
• Transport Package：Nude
• Specification：5255*2480*3245mm
• Trademark：ORIEMAC
• Origin：Jiangsu, China
• HS Code：84292090
• Production Capacity：5000PCS,Year

Model
XM130K
Max. milling with
mm
1320
Max. milling depth
mm
315
Milling wheel
Number of tools
112
Drum diameter with tools
mm
980
Engine
Model
6CTA8.3-C260
Rated power
kW
194
Rated speed
rpm
2100
Specifications
Operating speed
m/min
0~30
Travel speed
km/h
0~7
Ground clearance
%
50
Ground clearance
mm
≤200
Operating weight
kg
20000
Volume
Fuel tank
L
280
Hydraulic oil tank
L
160
Water tank
L
780
Conveyor
Width
mm
600
Measurement
Overall machinery LxWxH
mm
5255×2480×3245
Conveyor LxWxH
mm
7020×1030×900
Travel mode
Tire

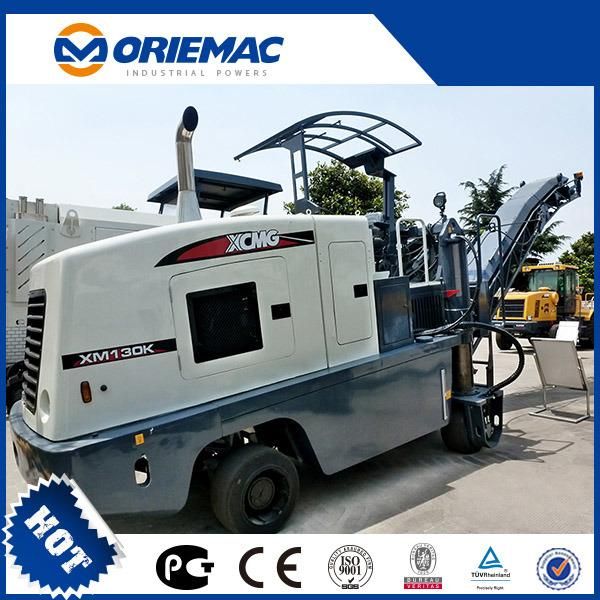

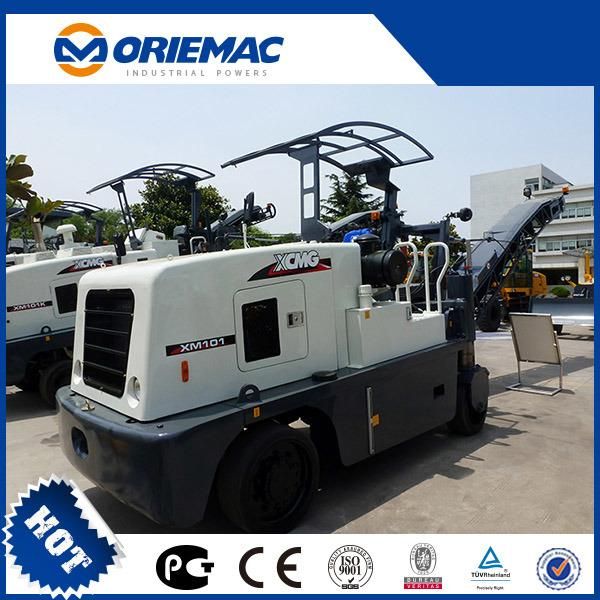

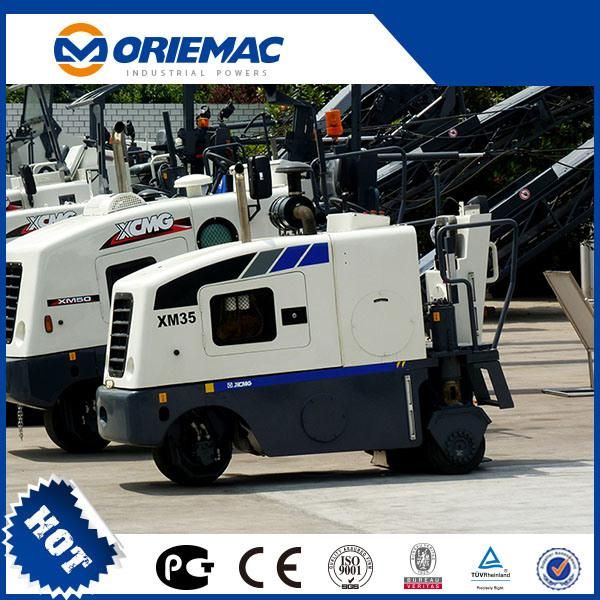

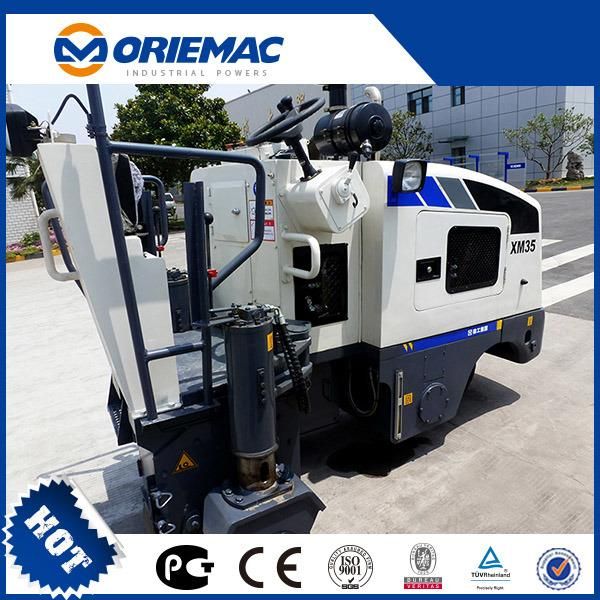

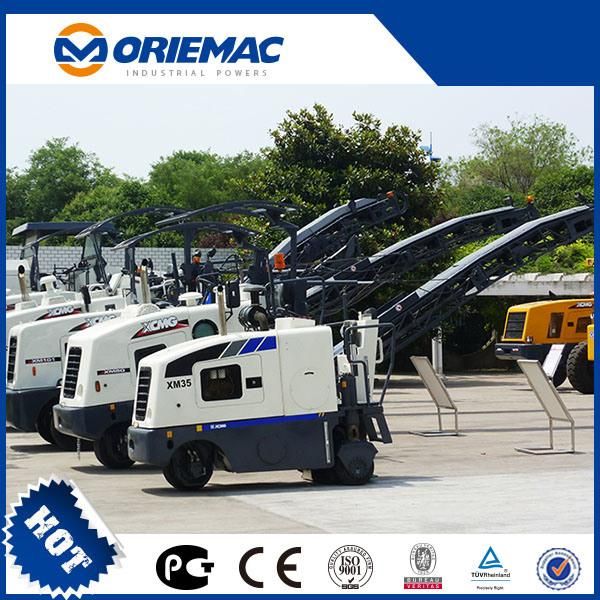

Product Pictures
