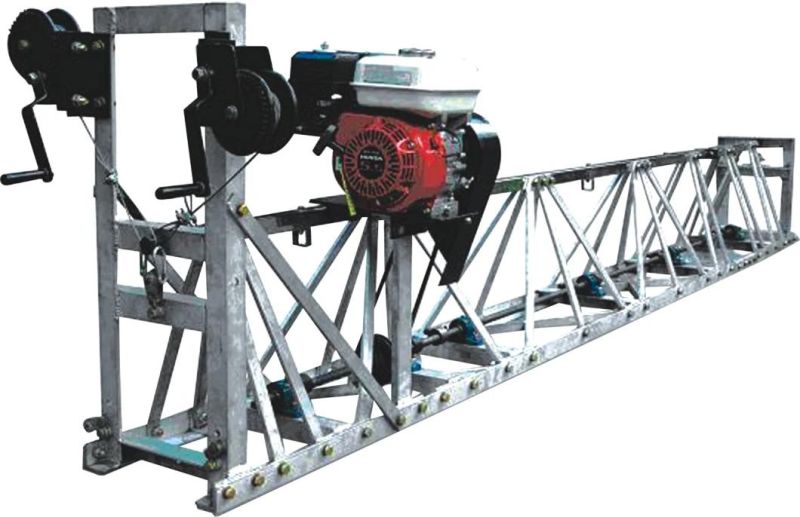

Concrete Vibrator Truss Screed (ZP90)

Ningbo Ace Machinery Co., Ltd.
  • Type：Compacting Equipment
  • Shotcrete Type：Semi-Dry
  • Machining Process：Welded Molding Machine
  • Structure：Cylinder Type
  • Productivity：75m²,h
  • Feeding Height：1370mm

Base Info

  • Model NO.：ZP90
  • Vibrating Amplitude：1.3mm
  • Certification：ISO9001: 2000, CE
  • Condition：New
  • Color：Gray
  • Product Name：Concrete Vibrator Truss Screed
  • Engine：Honda Gx270
  • Power：9.0HP
  • Working Width：405mm
  • Working Depth：260mm
  • Frequency：70Hz
  • Length：6~9mtr
  • Transport Package：Hob with Carton
  • Specification：ZP90
  • Trademark：KZW
  • Origin：Ningbo, China
  • HS Code：84306100
  • Production Capacity：500 PCS,Month

Description

405*500mm,   405*1000mm,  405*2000mmLength (mm)6000mm(MAX)9000mm(MAX)12000mm(MAX)Note: The chosen length of machine should be 500mm longer than real construction width.

Concrete Vibrator Truss Screed (ZP90)
Concrete Vibrator Truss Screed (ZP90)Concrete Vibrator Truss Screed (ZP90)
