Gasoline Engine Concrete Vibrator (ZXH) Machine for Construction

Ningbo Ace Machinery Co., Ltd.
  • Type：Concrete Vibrator
  • Shotcrete Type：Semi-Dry
  • Machining Process：Assembly
  • Structure：Rotor Type
  • Productivity：75m²,h
  • Feeding Height：1370mm

Base Info

  • Model NO.：ZXH
  • Vibrating Amplitude：1.0mm
  • Certification：ISO9001: 2000, CE
  • Condition：New
  • Color：Yellow
  • Product Name：Gasoline Engine Concrete Vibrator
  • Engine Model：Robin Ey20
  • Power：5.0HP

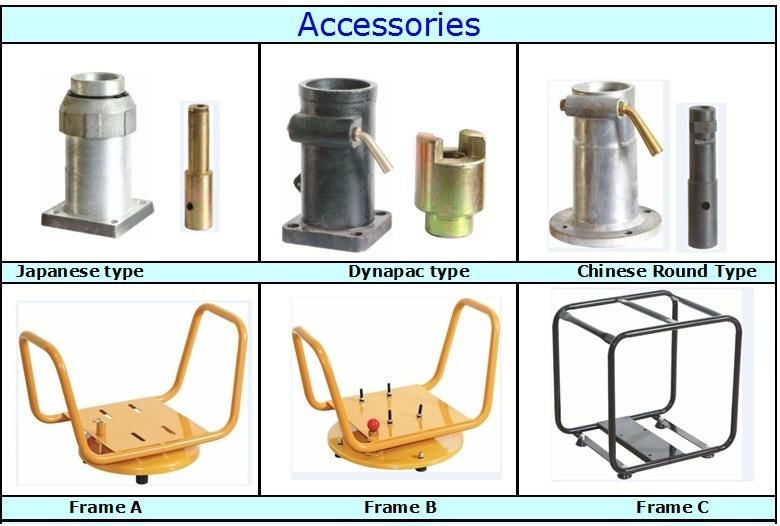

  • Coupling：Japanese Type
  • N.W.：21kgs
  • Packing Size：51*39*43cm
  • Transport Package：carton
  • Specification：Robin Engine
  • Trademark：KZW
  • Origin：China
  • HS Code：84306100
  • Production Capacity：5000 pcs,month

Description

ItemGasoline engine concrete vibratorModelZXRZXRCEngine ModelROBIN EY20Robin copy RB20Engine type4-stroke 25° Single-cylinder with Air-cooledBorex stroke1-67*52mm1-67*52mmDisplacement183cm3183cm3Compression Ratio8.5:18.5:1Max power5hp/3600rpm5hp/3600rpmRecommded power using3.5hp /3600rpm3.5hp  /3600rpmFuel Tank capacity3.8L3.8LFuel consumption230g/hp-hr (313g/kwh)230g/hp-hr (313g/kwh)packing size53*39*53cm53*39*53cmN..W/G.W.20kgs/22kgs20kgs/22kgs

Concrete vibrator shaftModel¢(mm)ZX35ZX-38ZX-45ZX-50ZX-60ZX-70Diameter of head¢(mm)353845505070Length of headL (mm)380420420480410450Vibrating Frequency(HZ)183185185200200200Vibrating Ampitude(mm)0.9111.21.151.151.35Dia of flexiable hoseD(mm)303032363636Diaof flexiable shaftD(mm)101010131313Weight (6mtr)(kg)141516202124packing sizeCM75*75*5.5
