• Model NO.：M920
• Type：Small Loader
• Category：Construction,Farming,Forestry Machine
• Engine：Yanmar,Kohler,Yunnei
• Power：50-75 Kw
• Bucket Capacity：1.0 M3
• Driving Speed：0-24km,H
• Weight：1600-3000kg
• 1 St Common Choice：Loader with Bucket and Forklift
• Forestry Choice：Loader with Log Grabber, Wood Chipper
• Construction Choice：Loader with Hammer and Concrete Mixer
• Gardening Choice：Loader with Lawn Mower, Flail Mower, Hedge Trimmer
• Transport Package：Nude Packing
• Specification：2690X1240X2285mm
• Trademark：STEEL CAMEL
• Origin：Shandong
• HS Code：8429510000
• Production Capacity：800 Sets Per Year

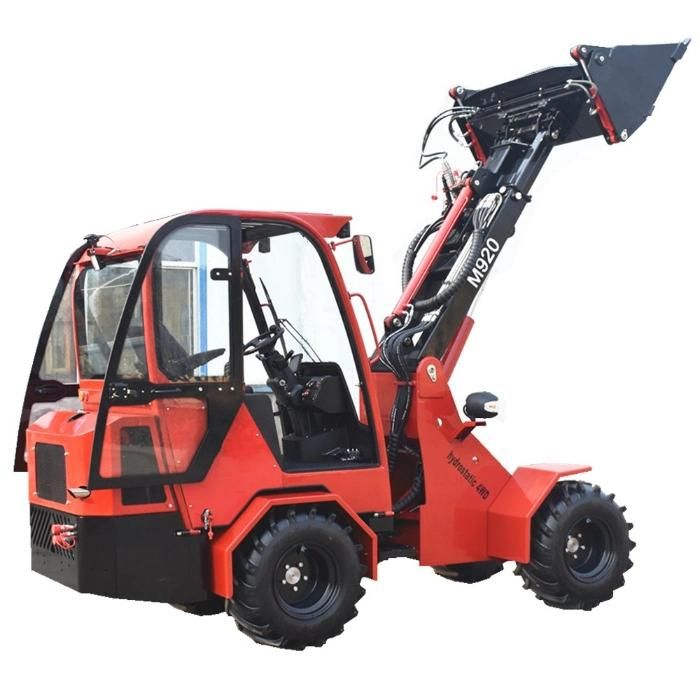

M920 forestry loader Dimension with cabin (LxWxH)3600X1500X2300mmMax. lifting height (boom retract) 3200mmMax. lifting height (boom extend) 3900mmPulling force 19kNBucket capacity1 cbmMax. loading capacity2000kgMin. turning radius2800mmTurning angle45⁰Min. ground clearance 330mmSpeed0-12~24 km/hWeight with bucket and counterweight2300 kgStandard tire31X15.5-15Tire pressure2.8 barOil tank capacity80LPressure200barWorking oil flow50L/minx2Tracking oil flow120L/minOil model(mineral oil)L-HL46Fuel tank capacity52LBattery60Ah, 12VEngineKohler/Yanmar, 74hp, 4 cylinder, diesel Standard configuration: Closed cabin with heating and fan, hydraulic quick coupling, telescopic boom, boom floating, self levering, flexible articulation, standard bucketOptions Open ROPS canopy3 point hitch with hydraulic ptoNormal boom without telescopic 8/16km/h two speed wheel motorRear hydraulic output with separate controlTrailer hook3 point hitch Bobcat coupling plateAir conditionerMulti-way couipler

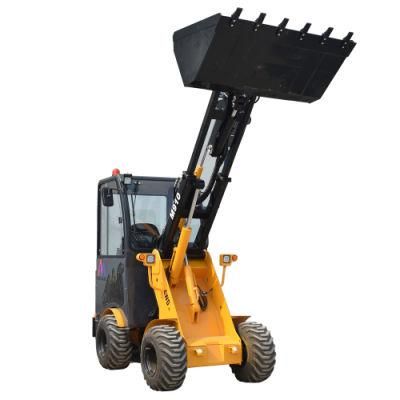

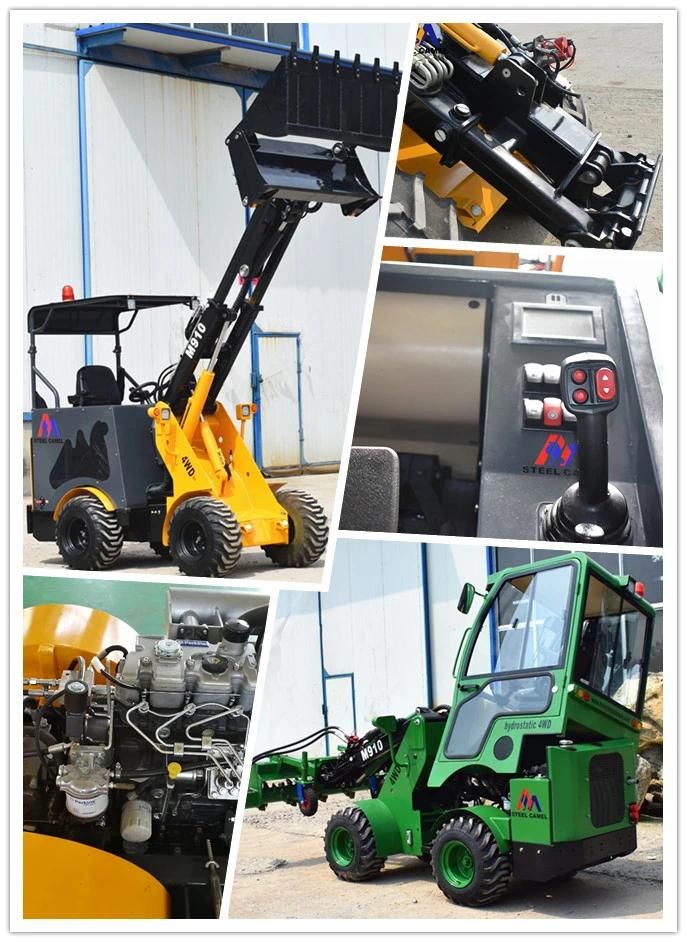

Advantages of M910 multifunction wheel loader:

Items	STEEL CAMEL loader	Other loader
Driving system	Full hydostatic 4WD One piston pump+4 hydraulic motors combine its driving system	Hydraulic/Mechanical driving Axle+torque converter+transmission shaft axle+gearbox motor
Working system	Twin pump for working devices Can choose the flow to be one pump's or twin pumps'	Single pump, no option
Independent system	Yes. The driving system and working system are independent closed system, can give max. output even when the loader is steady	No. The driving system and working system share some circuit, the output is relative with the driving speed
Boom	Telescopic	No-telescopic
Boom floating	Standard	Option for extra charge
Hydraulic quick coupling	Standard	Depends
Electric output on boom	Standard	Not available
Components	Perkins/Cummins engine, Italy pump and valves, UK seals	At most have an oversea engine, the rest are all local parts
Rear hydraulic output	Standard	Not available
3 point hitch	Available as option	Not available
Tiltable cabin	Standard	Not availabl

Loader+Tractor, one Multi-purpose helper for all your works

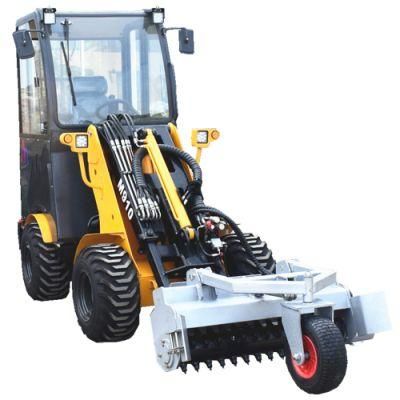

Front part is loader, with telescopic boom, hydraulic output, quick hitch and coupling system for various attachments, like bucket, fork, grapple, auger, hammer, lawn mower, etc.

Rear part is tractor, with hydraulic output, 3-point hitch, hydraulic PTO, for rotary tiller, flail mower, plough, harrow, trailer, etc.

STEEL CAMEL series machines are widely used in farming, agriculture, landscaping, gardening, construction, municiple, etc.

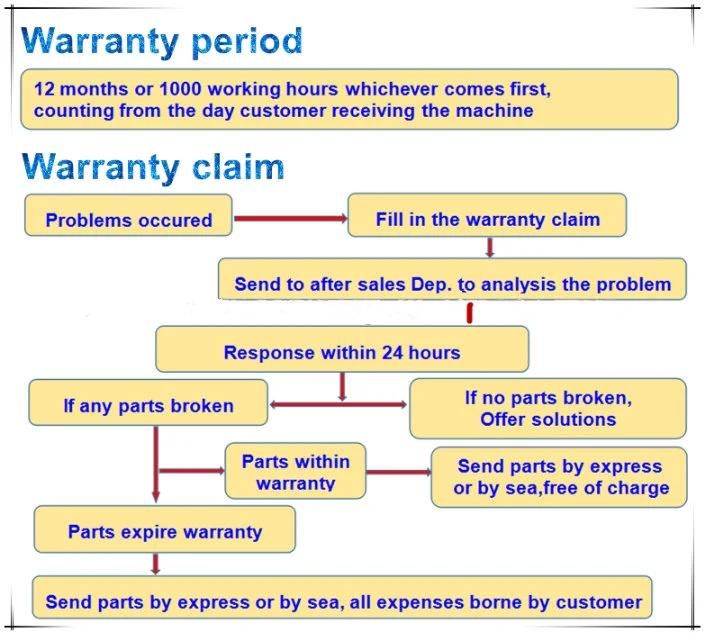

Loader warranty:




Contact me for more details now:

With more than 10 years' experience of production and exporting, I'm ready to be your reliable consultant about products and importing procedure anytime. Any of your inquiry will be treated seriously with top attention, looking forward to hearing from you.



Anna Guan/Marketing director
**************************************
Shandong Honest Machinery Co., Ltd
