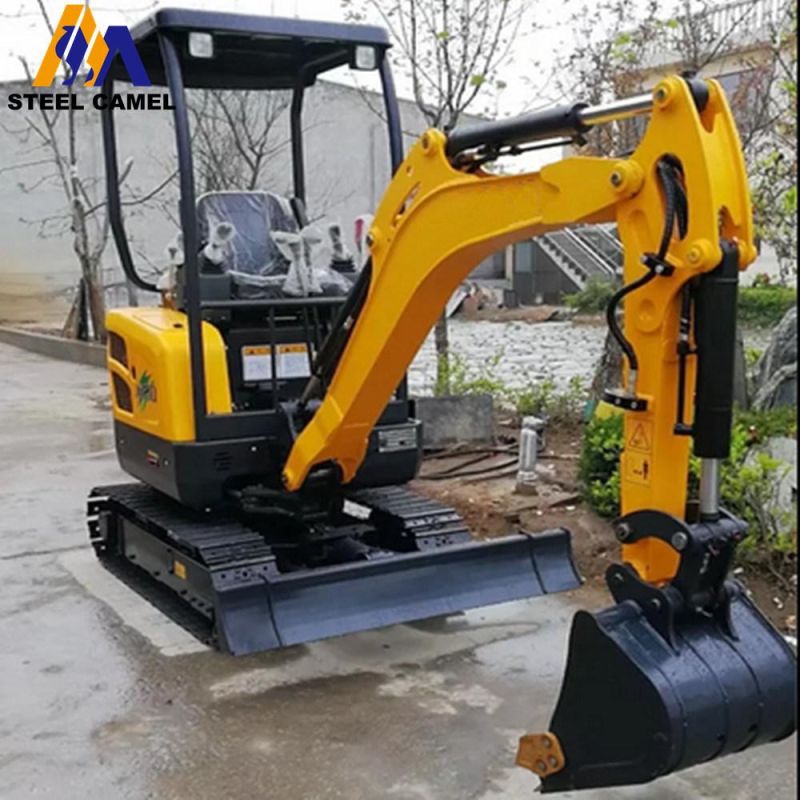

2.2 Ton Hydraulic Excavator with Small Towable Backhoe
Shandong Honest Machinery Co., Ltd.- Type：Crawler Excavator
- Usage：Special Excavator, Marine Excavator, Mining Excavator, GM Excavator
- Bucket：Backhoe
- Transmission：Hydraulic Transmission
- Drive Type：Internal Combustion Drive
- Bucket Capacity：0.1~0.5m³
Base Info
- Model NO.：SC22
- Size：Small-Scale
- Certification：CE, ISO9001: 2000
- Condition：New
- Name：Small Backhoe
- Weight：1.8 Ton, 2 Ton, 2.2 Ton, 6ton, 6.5ton, 7 Ton
- Rotating Degree：360 Degree Rotating
- Engine：Yuchai,Laidong,Kubota,Cummins,Xinchai
- Rated Power：18~100kw
- Attachments：Quick Hitch Adapter, Rock Hammer, Auger, Forklift
- Color：Yellow,White,Red,Customized
- Service：Engineers Available,Oversea Third Party
- Warranty：1 Year or 1000 Working Hours
- Delivery Time：Fast Delivery Within 10 to 30 Days
- Transport Package：Container
- Specification：0.06cbm, 1.8 ton
- Trademark：STEEL CAMEL
- Origin：Shandong
- HS Code：8429521200
- Production Capacity：2000 Sets Per Year
Description
SPECIFICATIONS FOR 2.2 TON CRAWLER EXCAVATOR
EngineEmission Standard Tier 3/ Stage III Brand LAIDONG Model 3TE30 Power /Rotation speed 22.1kw(30HP)@2350rpm Number of cylinder 3
Main performance parametersStandard Bucket capacity 0.1m3 Max. Bucket digging force 13.3KN Max. Arm digging force 9.3KN Hydraulic system pressure 20Mpa Machine weight 2200kg Overall dimension (L*W*H) 4080*1300*2280mm
Working rangeMax. Digging height 3700mm Max. Digging depth 2450mm Max. Digging radius 4370mm Min. swing radius 2015mm Boom swing angle(Left) 70° Boom swing angle(Right) 50°
SC22 Excavator Main Features
1.High Output, The work equipment, undercarriage and frame have been reinforced to meet the rigorous requirements for mining applications.
2.Excellent Performance: The main pump can perfectly match the engine output power
3.The engine meets Stage III/Tier 3 emission standards further reducing fuel consumption.
4.Superior reliability: After 3000 hours operations, the reliability is considered leading level.
5.Ultra low maintenance costs: Filter replacement and maintenance at your fingertips. The easy access reduces maintenance costs.
Swing boom
Maximum Digging height 3700mm
Maximum Dumping height 2290mm
Maximum Digging depth 2450mm
Maximum Vertical digging depth 2280mm
Maximum Digging radius 4370mm
Minimum swing radius 2015mm
Maximum Lifting height of blade 240mm
Maximum Cutting depth of blade 310mm
Boom swing angle(Left) 70°

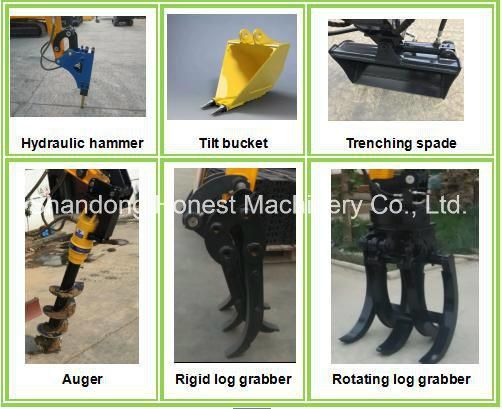

Boom swing angle(Right) 50° Various attachments
Hydraulic hammer
Tilt bucket
Trenching spade
auger
rigid log grabber
rotating log grabber
customized attachments

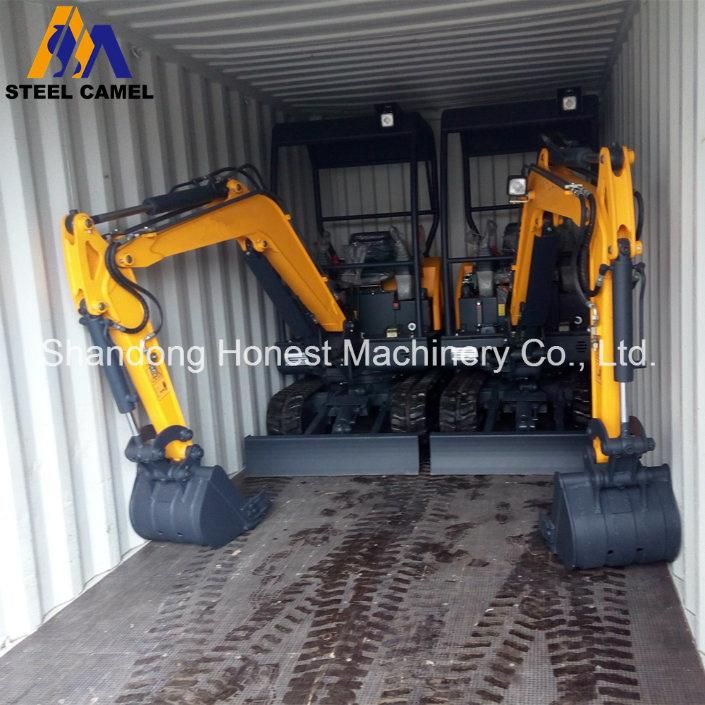

Excavator loading:
4 sets/20'GP; 8 sets/40'HQ
