2m Milling Width Asphalt Road Cold Milling Machine Xm200
Oriemac Machinery & Equipment (Shanghai) Co., Ltd.- Type：Cold Milling Machine
- Object：Hardware
- Moving Type：Semi-Fixed
- Mixing Method：Intermittent Compulsory
- Automatic Grade：Semi-Automatic
- Certification：ISO9001: 2000, CE
Base Info
- Model NO.：Xm200
- Condition：New
- Engine Model：Weichai
- Rated Power /Speed：447,2100kw,Rpm
- Operating Speed：0-30m,Min
- Operating Weight：32500kg
- Max.Milling and Mixing Width：2000mm
- Max.Milling and Mixing Depth：320mm
- Transport Package：RO-RO,Bulk,Container
- Specification：7130*2500*3000mm
- Origin：China
- HS Code：8459590000
- Production Capacity：1000 Set Per Month
Description
MODEL
Unit
XM200
Engine
Engine model
Weichai
Rated power /speed
Kw/rpm
447/2100
Performance parameters
Operating speed
m/min
0-30
Travel speed
Km/h
0-4.5
Gradeability
%
80
Ground clearance
mm
≤320
Operating weight
Kg
32500
Operating
parameters
Max.milling and mixing width
mm
2000
Max.milling and mixing depth
mm
320
Number of tools
168
Milling drum diameter
mm
980
complete dimension(L*W*H)
mm
7130*2500*3000

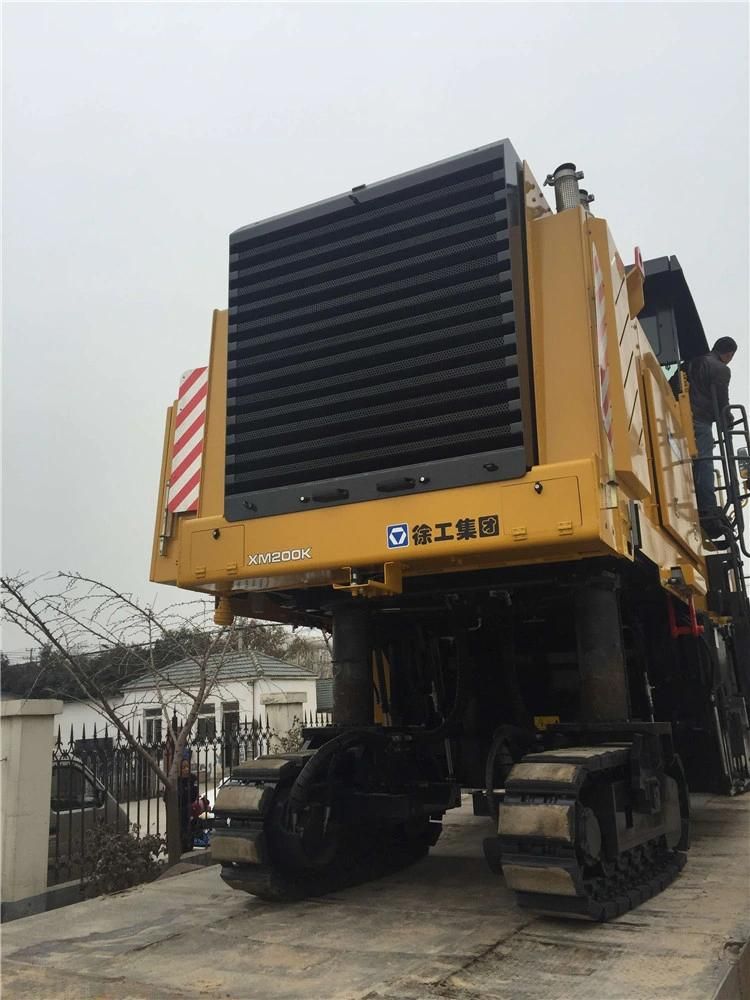

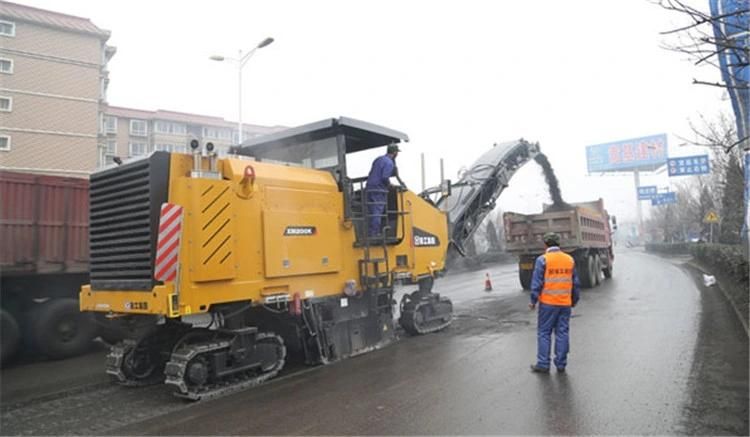

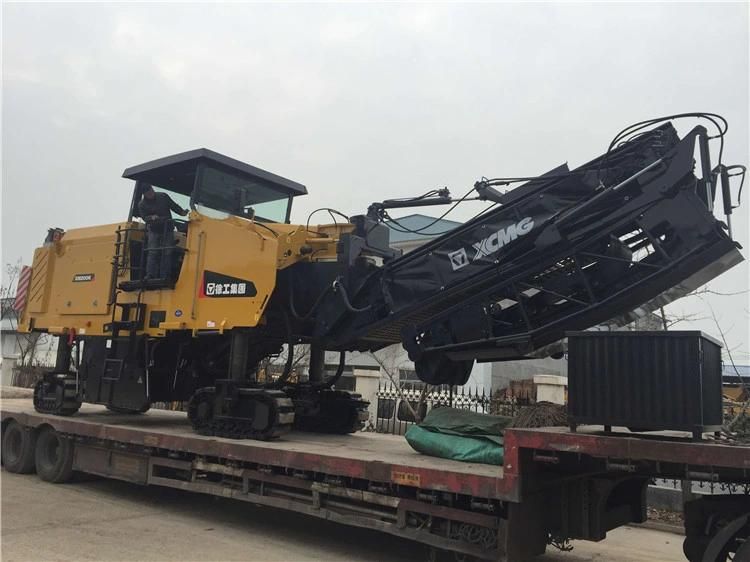

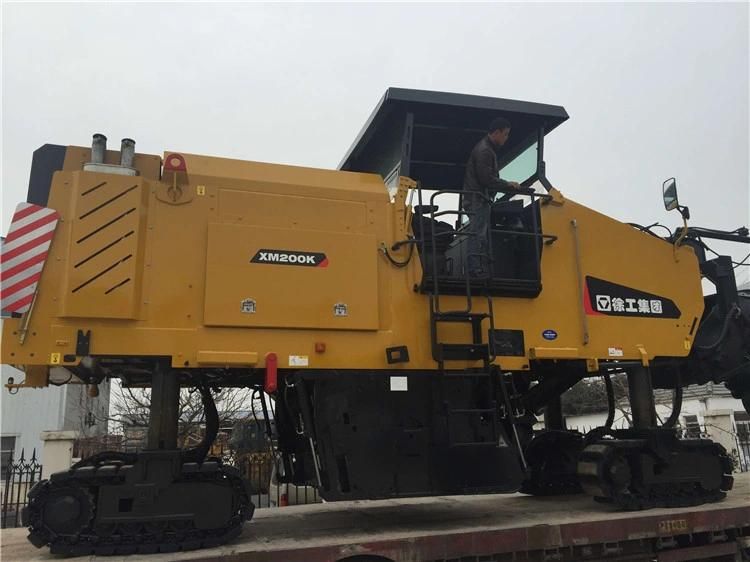

| Product Show |
