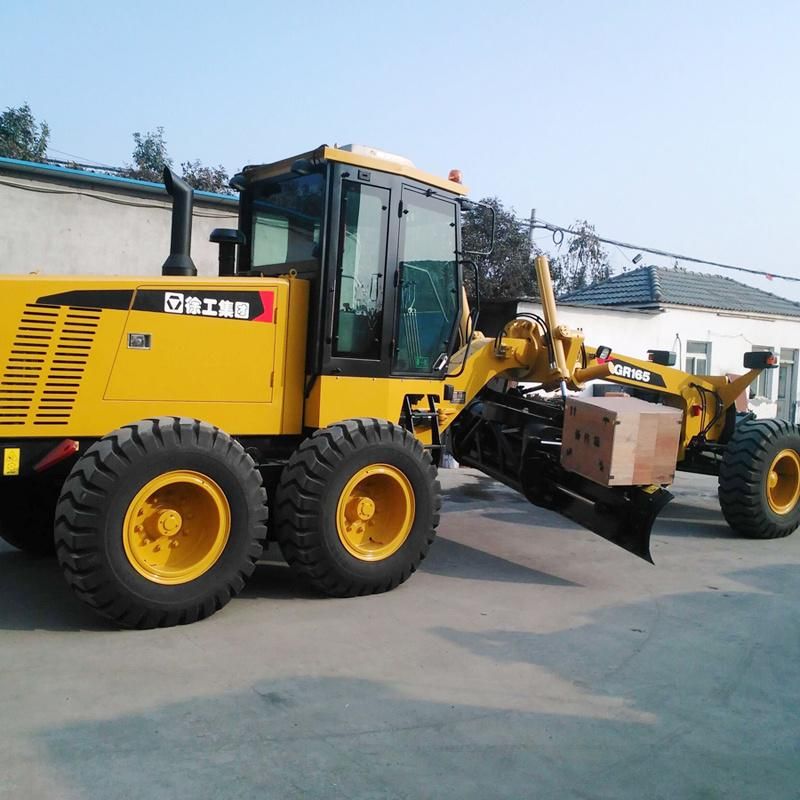

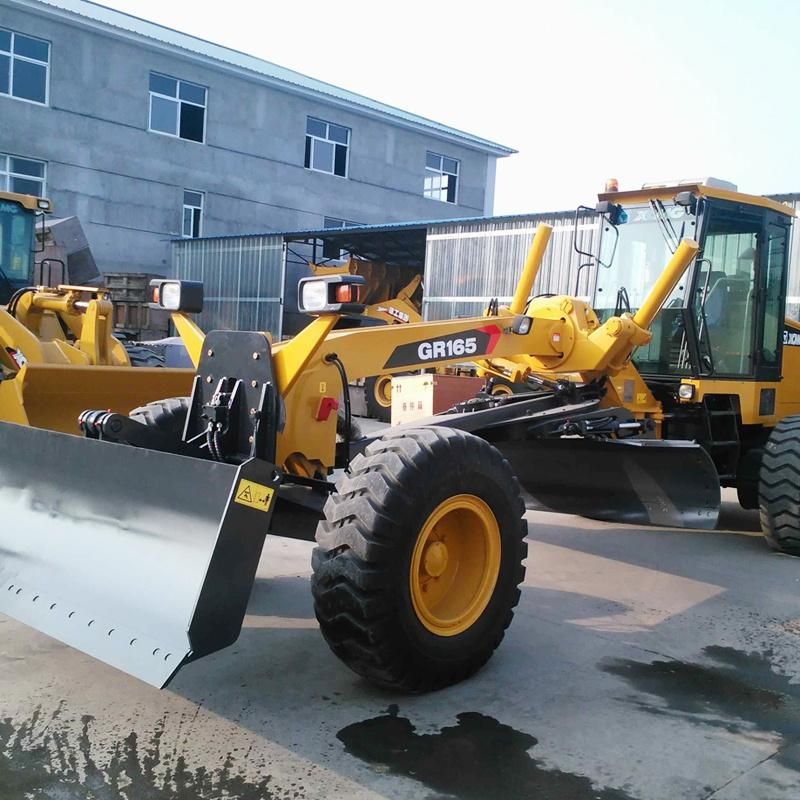

China Oriemac 160HP Motor Grader with Ripper Gr1653 Motor Grader in China

Oriemac Machinery & Equipment (Shanghai) Co., Ltd.
  • Certification：ISO
  • Condition：New
  • Application：Railway, Mine, Farmland, Highway
  • Transmission：Power
  • Walking Mode：Wheeled
  • Type：Medium-sized Grader

Base Info

  • Model NO.：GR1653
  • Engine Model：Sc7h180.1g3
  • Rated Power/Speed：128,2000kw,Rpm
  • Total Weight(Standard)：14500kg
  • Tractive Force(F=0.75)：77kn
  • Max. Gradeability：25%
  • Min. Turning Radius Using Articulation：7.3
  • Color：Yellow
  • Transport Package：Nude
  • Specification：8900X2625X3420mm
  • Trademark：ORIEMAC
  • Origin：Xuzhou
  • Production Capacity：100unit,Month

Description

km/hReverse speed5,11,23 Tractive force(f=0.75)77KNMax. gradeability25%Tire inflation pressure260kPaWorking hydraulic pressure20 MPaTransmission pressure1.3~1.8MPaMax. steering angle of front wheels±48° Max. lean angle of front wheels±17° Max. oscillation angle of front axle±15° Max. oscillation angle of balance boxfront15°,reverse15° Frame articulation angle±27° Min. turning radius using articulation7.3mMax. lift height450mMax. cutting depth500mMax. blade position angle90° Blade cutting angle28°-70° Circle reversing rotation360° Moldboard width X height3965*610mm
