• Model NO.：Ground Racks-YY
• Teeth Type：Spur Teeth or Helical Teeth
• Module：0.4-8
• Material：Stainless Steel
• Transport Package：Wooden Case
• Trademark：EPT
• Origin：Zhejiang China
• Production Capacity：5000 Piece,Pieces Per Month

Basic Info.

Model NO. Ground Racks-YY Teeth Type Spur Teeth or Helical Teeth Module 0.4-8 Material Stainless Steel Transport Package Wooden Case Trademark EPT Origin Zhejiang China Production Capacity 5000 Piece/Pieces Per Month

Product Description

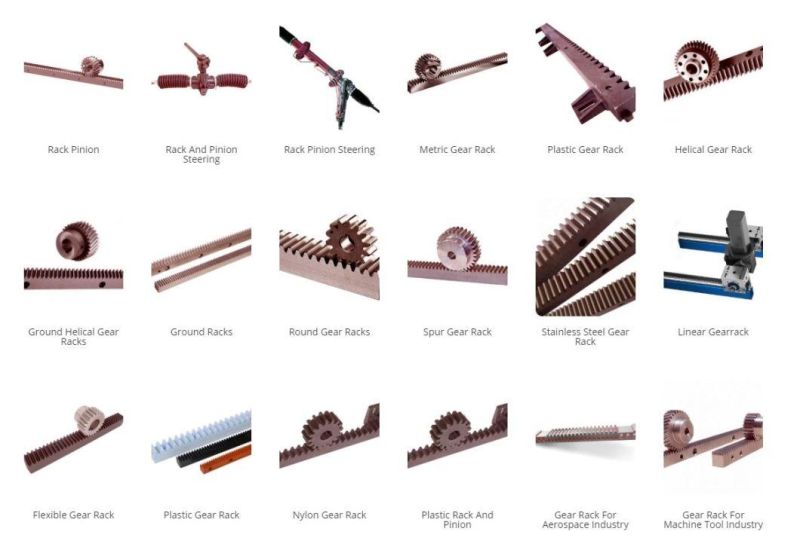

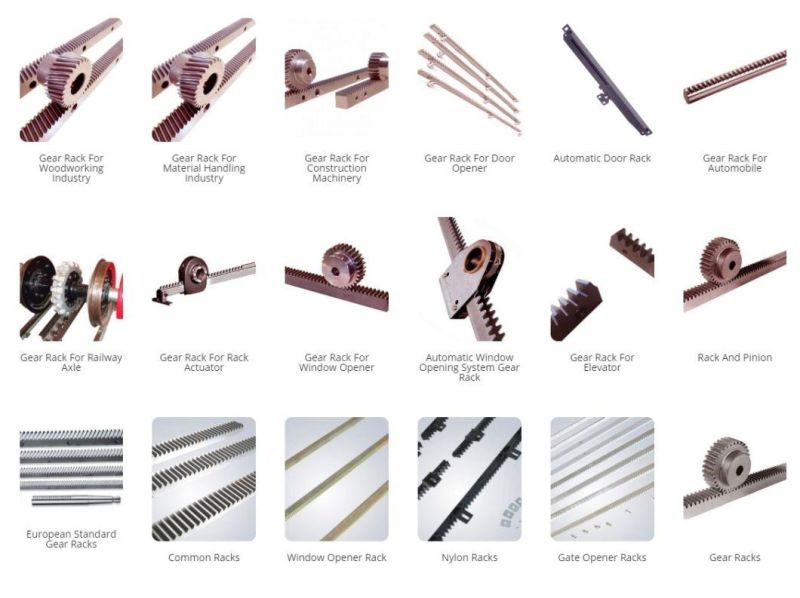

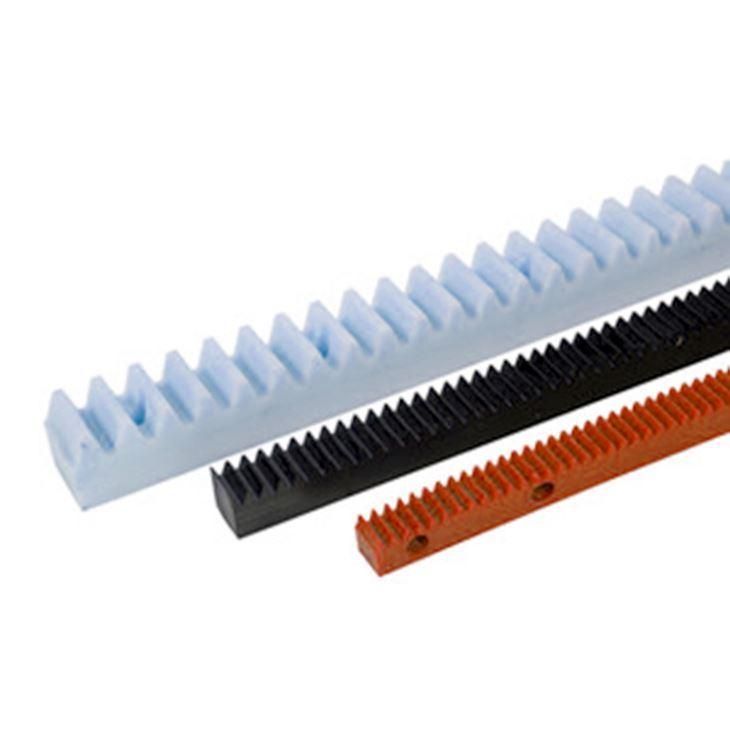

Ground Racks Spur Helical Pinion Steering Plastic Spur Stainless Steel Linear Flexible Nylon for Aerospace Industry Machine Tool Woodworking Best Ground Racks

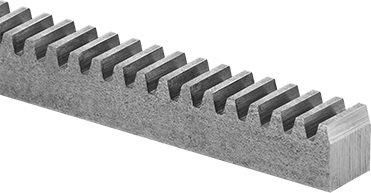

Ground Racks

Series CHTGH-Q6 Helical Teeth Ground Racks

Quality Grade DIN 6

Material 45C (Medium Carbon Steel)

Right Hand Angle 19°31'42"

Hardness HRC 50~55°

Ground on all sides after hardening.



Total Pitch Error:

GTf /1000 <=0.036 mm

GTf /2000 <=0.047 mm ( <=0.024/1000 mm)



EPT Precision Helical Tooth Ground Rack, standard product specifications from module M1.5 to M12, offers lengths of 1000mm and 2000mm. The demand for precision in various industries is more and more accurate, so the use of 2 meters long racks becomes more and more extensive, which can not only reduce the man-hours for installing the machine, but also reduce the gap tolerance between the racks. Make the total error of the entire installation line lower.
