Cheap Price 220HP Mini Bulldozer Price
QINDING MACHINERY TOOLS (SHANDONG) CO., LTD.- Type：Universal Type
- Transmission：Hydraulic Transmission
- Walking Mode：Crawler
- Load and Unload Method：Front Discharge
- Engine Power：147~515kw
- Certification：CE, ISO9001: 2000
Base Info
- Model NO.：QD220Y
- Condition：New
- Color：Yellow
- Product Name：Cheap Price 220HP Mini Bulldozer Price
- Key Word：Mini Bulldozer
- Model：Qd220y
- Engine：Cummins Qsnt-C235
- Rated Power：175kw
- Horsepower：220HP
- Weight：26300kg
- Transport Package：RO-RO

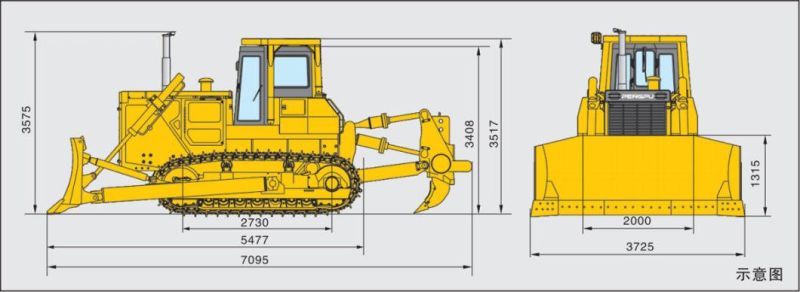

- Specification：5085x3416x3254.5
- Trademark：QINDING
- Origin：Shanghai, China
- HS Code：843149
- Production Capacity：150units , Month
Description
Floating seals are used in all track rollers,carrier rollers,sprocket and front idlers

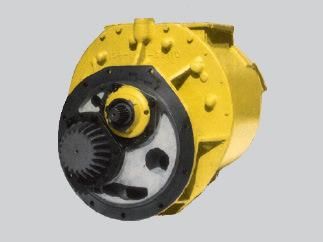

Gear Box
Hydraulic controlled gearshift is realized by operating the control valve, and without having to stop the machine,when operated with the torque converter to save operator effort.
The transmission is combined with four planets lines and a rotary lock-up clutch, multiple disc clutch, hydraulic controlled release, forced lubrication, with 3 speeds forward and 3 speeds backward

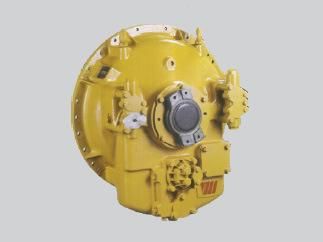

Torque Converter
The hydraulic torque converter for is a newly developed product with the improvement made to the material, process and layout based on introduced Japan KOMATSU technology. It features simple architecture, easy maintenance, low noise, excellent reliability, stepless speed regulating which ensure perfect match to the machine for an outstanding traction and a stable transmission.

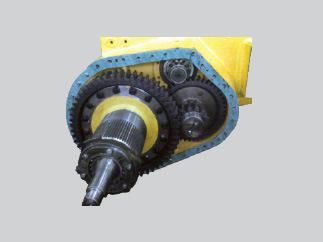

The Final Driving
The final drive uses triangle Spline and tip relief, crowned gear drive for enhanced balance and the stability during power transmission, lower noise, excellent reliability and added life.
TRACKType Sealed single grouse Track pitch (mm) 216 Track width (mm) 945 Number of track shoes (each side) 45 Length of track on ground (mm) 3480 Ground clearance (mm) 450 Ground pressure (Mpa) ≤0.038 Track gauge (mm) 2250 Blade type Straight tilt blade Angle U blade Width×Height (mm) 3725×1315 4365×1055 3800×1343 Max.lift above ground (mm) 1210 1210 1210 Max.drop below ground (mm) 540 535 540 Pitch adjustment (°) 55 55 55 Max.tilt (mm) 735 500 735 Blade capacity(m³) 5.45 4.9 6.81
>>>Our Service

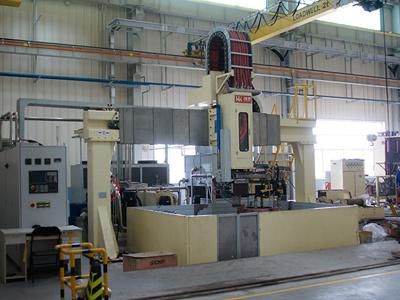

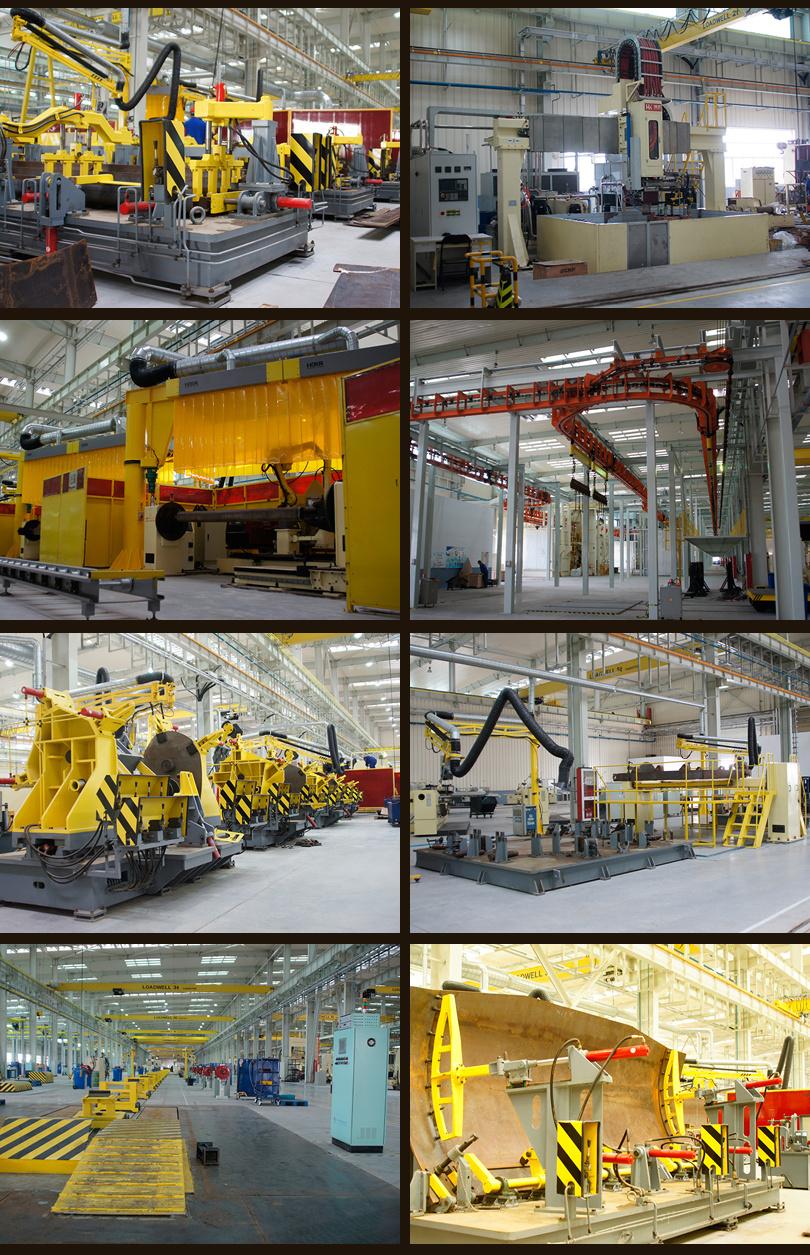

>>>Our workshop
>>>Contact us
Nancy
----------------
QINDING MACHINERY & TOOLS (SHANDONG) CO., LTD.
Add: No. 100, Lingong Road, Linyi City, Shandong Province, China
Tel: 86-539-853 6876
Mobile: 86-13235390332
Hydraulic controlled gearshift is realized by operating the control valve, and without having to stop the machine,when operated with the torque converter to save operator effort.
The transmission is combined with four planets lines and a rotary lock-up clutch, multiple disc clutch, hydraulic controlled release, forced lubrication, with 3 speeds forward and 3 speeds backward
Torque Converter
The hydraulic torque converter for is a newly developed product with the improvement made to the material, process and layout based on introduced Japan KOMATSU technology. It features simple architecture, easy maintenance, low noise, excellent reliability, stepless speed regulating which ensure perfect match to the machine for an outstanding traction and a stable transmission.
The final drive uses triangle Spline and tip relief, crowned gear drive for enhanced balance and the stability during power transmission, lower noise, excellent reliability and added life.
>>>Key parameter
TRACK>>>Our Service
