• Model NO.：OKW-1T
• Size：Small-Scale
• Certification：CE, ISO9001: 2000
• Condition：New
• Engine：Diesel Engine
• Power：8.6 Kw
• Cooling Type：Air Cooling
• Max Digging Depth：1400 mm
• Max. Digging Radius：2400 mm
• Width of Bucket：40 Cm
• Capacity of Bucket：0.025 Cbm
• Machine Weight：1000 Kgs
• Max. Travel Speed：1.5km,H
• Color：Yellow , Black or as Your Request
• Transport Package：Export Wooden Case
• Specification：6 CBM
• Trademark：OUKE
• Origin：Jining, China
• HS Code：8429521200
• Production Capacity：50 Unit, Month

Basic Info.

Model NO. OKW-1T Size Small-Scale Certification CE, ISO9001: 2000 Condition New Engine Diesel Engine Power 8.6 Kw Cooling Type Air Cooling Max Digging Depth 1400 mm Max. Digging Radius 2400 mm Width of Bucket 40 Cm Capacity of Bucket 0.025 Cbm Machine Weight 1000 Kgs Max. Travel Speed 1.5km/H Color Yellow / Black or as Your Request Transport Package Export Wooden Case Specification 6 CBM Trademark OUKE Origin Jining, China HS Code 8429521200 Production Capacity 50 Unit/ Month

Product Description

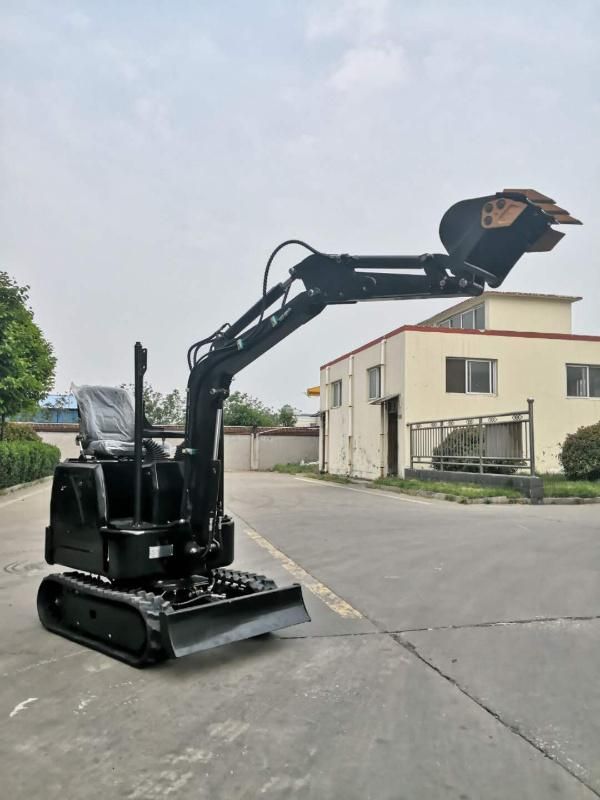

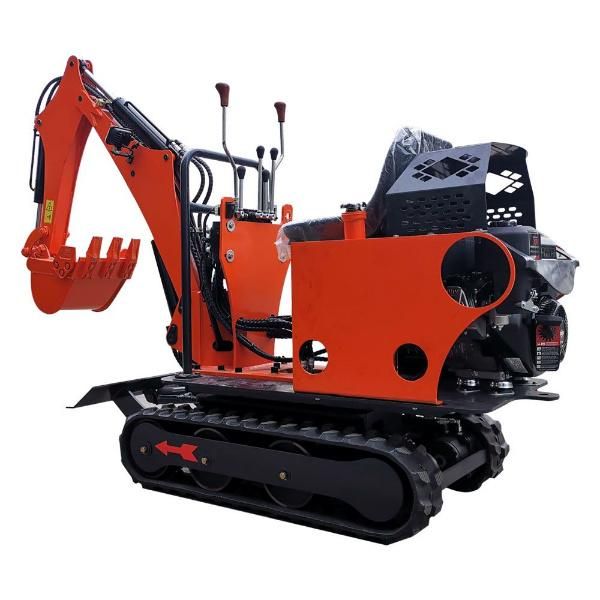

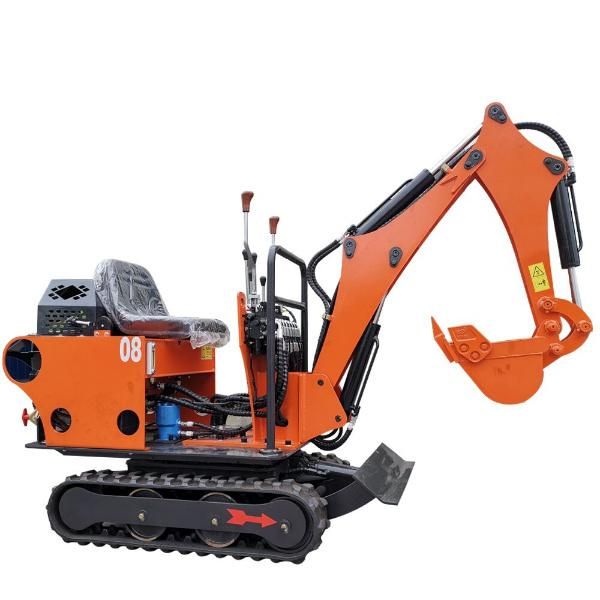

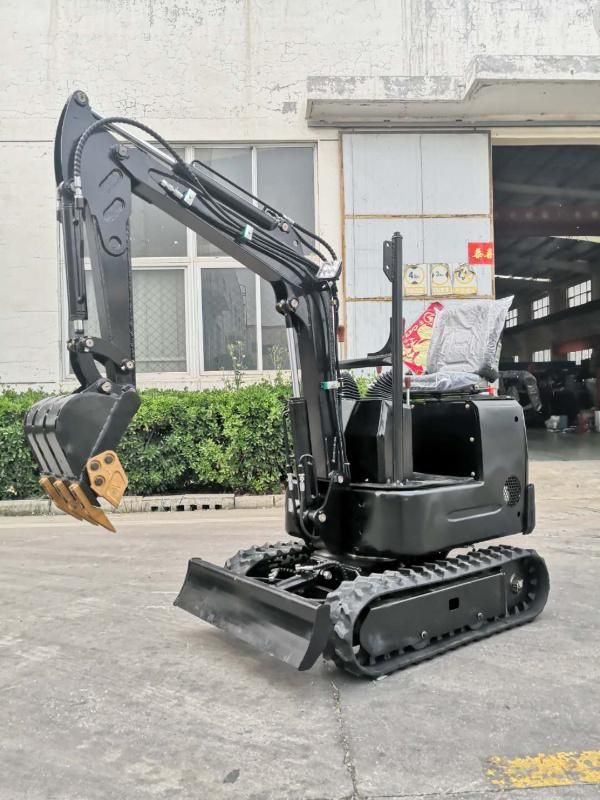

                 800KG 1000 KG Mini Crawler Excavator

Excavator Application:  Excavators, also known as excavating machinery, are earthmoving machines that use buckets to excavate materials above or below the surface of the carrier and into the transport vehicle or to the stockyard.
The materials excavated by the excavator are mainly soil, coal, sediment and pre-pulled soil and rock. From the development of construction machinery in recent years, the development of excavators is relatively fast, and excavators have become one of the most important construction machinery in engineering construction.

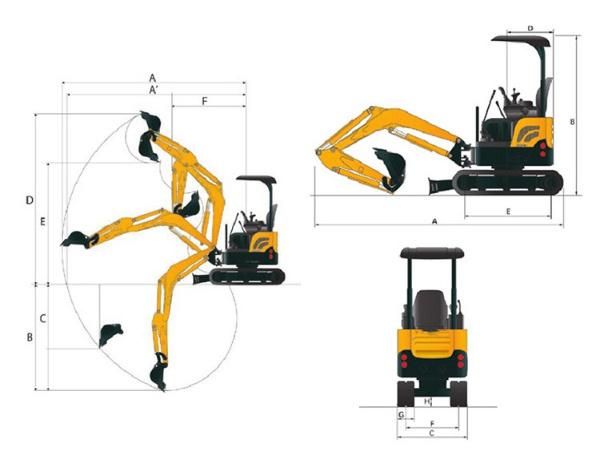

Model	OK- 1 T	OK- 1.2 T	OK- 1.5 T	OK- 2.0 T
Digging bucket capacity	0.02 CBM	0.02 CBM	0.06 CBM	0.08 CBM
Dimension	2770*950*1500 mm	2800*1000*1500 mm	3635*1050*2320 mm	4082*1200*2128 mm
Weight	1000 kg	1180 kg	1450 KG	2000 KG
Power	8.6 KW / 12HP	24HP	15 KW / 20 HP	18 KW
Engine	Diesel engine -Single cylinder	Diesel engine -double cylinder	Yanmar- three cylinder	Diesel engine- three cylinder
Cooling type	Air cooling	Air cooling	Water cooling	Water cooling
Wheel base	770 mm	910 mm	1150mm	1150 mm
Length of track	1230 mm	1230 mm	1400mm	1620 mmm
Width of track	180 mm	180 mm	230mm	230mm
Plateform ground cleanrance	380 mm	380 mm	460 mm	460 mm
Max. Digging height	2490 mm	2490 mm	2390 mm	3714 mm
Max. Dumping height	1850	1850	2010 mm	2488 mm
Max. Digging radius	2400 mm	2400 mm	3500 mm	4023 mm
Max. Digging depth	1400 mm	1400 mm	1880 mm	2150 mm
Max. Vertical digging depth	1320 mm	1320 mm	1800 mm	2000 mm
Min. Rotation radius	1190 mm	1190 mm	1125 mm	1200 mm
Tail turning radius	733 mm	733 mm	1125 mm	1200 mm
Max. Travel speed	1.5km/h	1.5km/h	2 km/h	2 km/h
Working pressure	18MPA	18MPA	20.5MPA	20.5 MPA
