• Model NO.：SWD7S
• Condition：New
• Color：Yellow
• Blade Type：Straight
• Blade Width：4365mm
• Track Width：945 mm
• Operating Weight：26.3 Ton
• Warranty：One Year
• Engine Make：Cummins
• Transport Package：Nude
• Specification：ISO9001
• Trademark：SINOWAY
• Origin：China
• HS Code：84314990
• Production Capacity：2000 PCS Per Year

Basic Info.

Model NO. SWD7S Condition New Color Yellow Blade Type Straight Blade Width 4365mm Track Width 945 mm Operating Weight 26.3 Ton Warranty One Year Engine Make Cummins Transport Package Nude Specification ISO9001 Trademark SINOWAY Origin China HS Code 84314990 Production Capacity 2000 PCS Per Year

Product Description

SINOWAY SWD7S Wetland Bulldozer Main Advantages

1 Cummins electronically controlled engine meets the third stage emission requirements of national non-road machinery. It is intelligent, efficient, versatile and low maintenance cost.
2 Hydraulic mechanical torque converter uses external shunt machinery and hydraulic output, which has the characteristics of hydraulic transmission that can automatically adapt to the change of load and good mechanical transmission performance, and improves transmission efficiency.
3 Power shift gearbox adopts planetary wheel structure, which has high transmission efficiency. The gearbox clutch adopts multi-plate wet type, oil pressure combination, spring separation, pressure oil lubrication and cooling clutch.
4 Steering and braking clutch are adjustable-free, wet multi-plate clutch. Brake clutch is often combined and steering clutch is often separated. A lock brake device is designed to keep the whole machine in braking state when starting the engine, which enhances the safety of the whole machine.
5 The final drive is a two-stage planetary deceleration mechanism, which is installed outside the steering and braking clutch. The combined chain teeth have compact structure. When repairing the final transmission, it is not necessary to open the crawler and the walking frame, so it is convenient to repair, disassemble and assemble.
6 The driving sprocket is separated from the walking frame and arranged on the same axis as the final drive and steering brake clutch. The tracked track is triangular, eliminating the impact load directly transmitted from the ground to the driving sprocket, and increasing the service life of the transmission system by 30%.
The modular design of transmission parts reduces the link of assembly station and facilitates disassembly and maintenance.

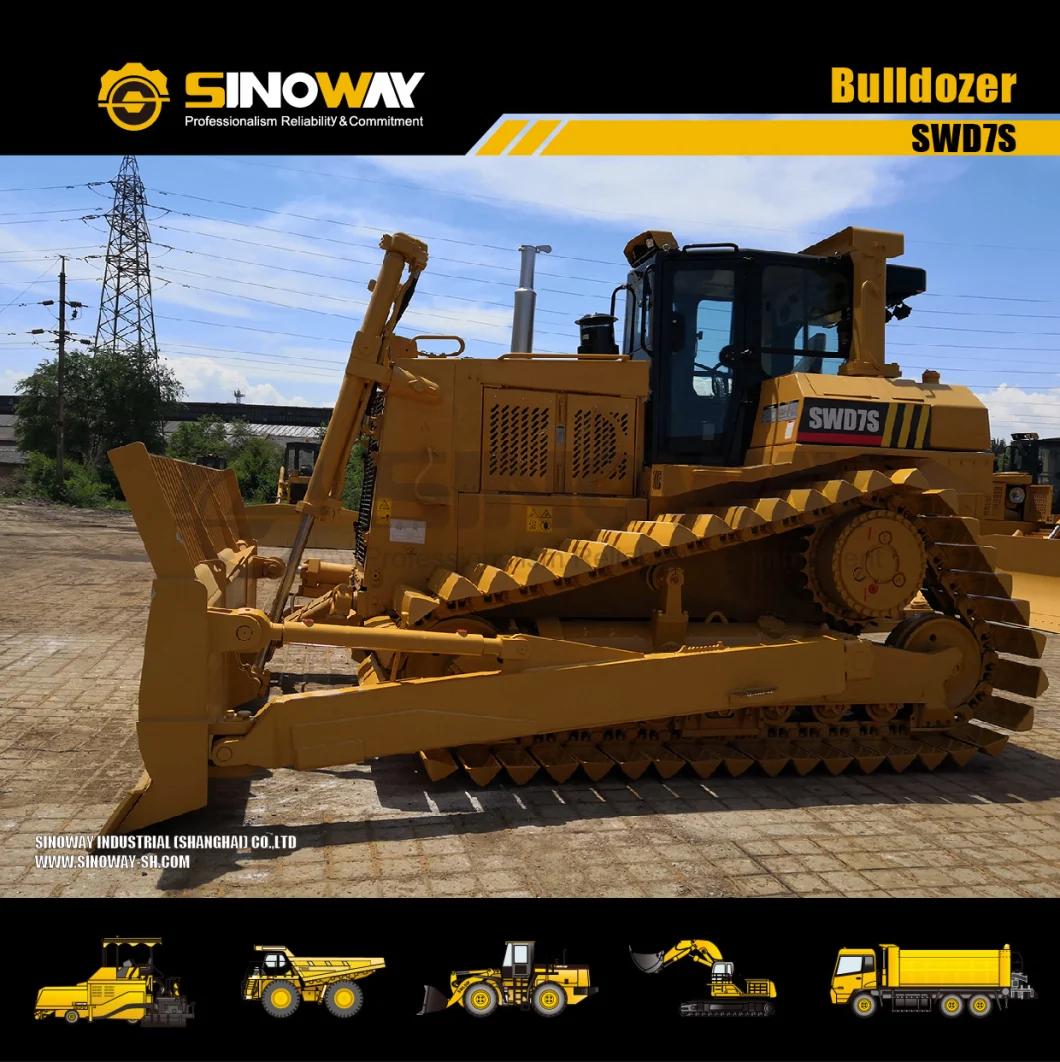

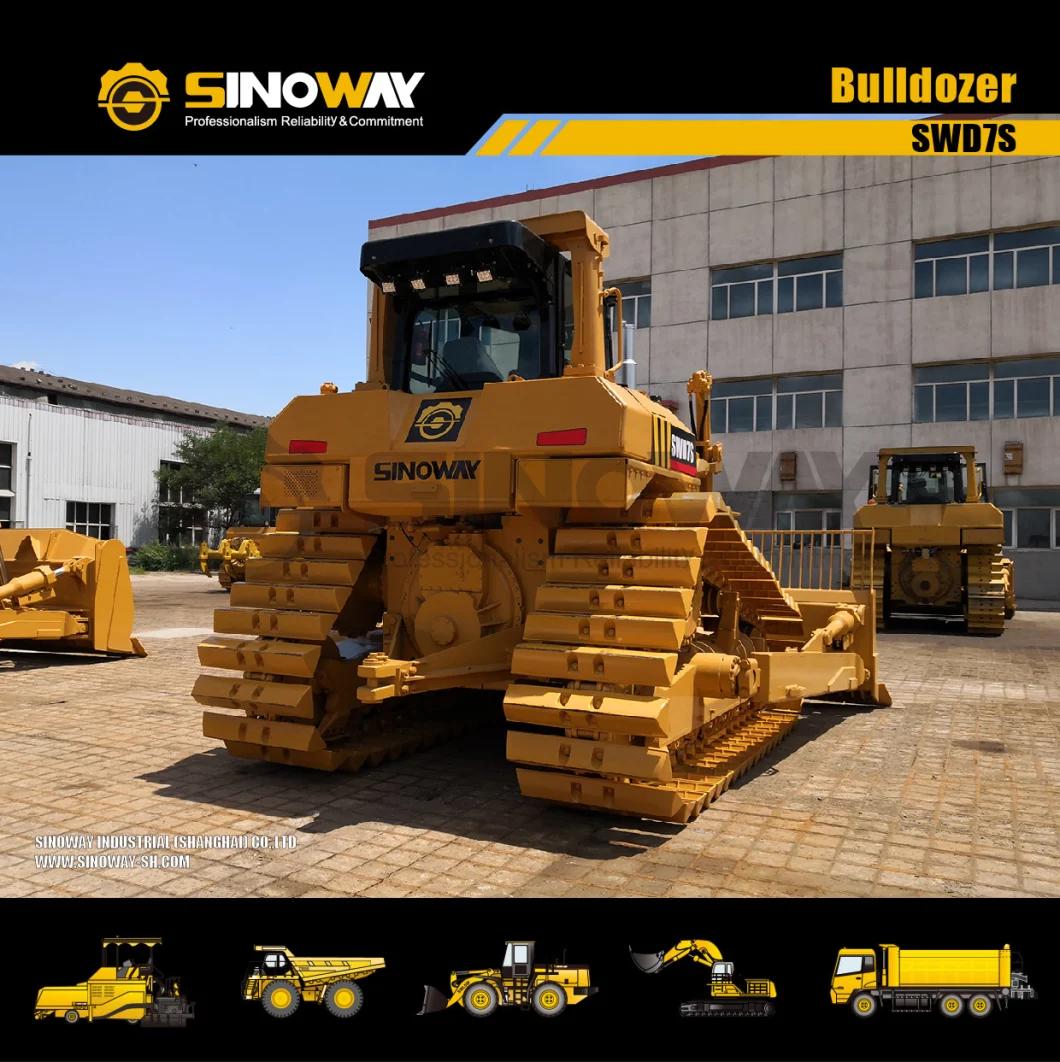

Machine Show







Specifications


Engine
Model	Cummins
Type	Six-cylinder,water-cooled turbocharged,mechanical injection
Rated power	169KW
Rated speed	1800rpm
Implement Hydraulic System
Hydraulic flow rate	194L/min
Hydraulic pressure	18.6MPa
Pump type	High pressure gear pump
Control valve	Hydraulic operated pilot control
Under Carriage System
Sprocket	Elevated
Number of track rollers (each side)	7
Number of carrier rollers (each side)	(4 single, 3 double)
Number of front idler (each side)	12
Track type	Single grouser
Track tension	Hydraulic
Track pitch	220mm
Track width	760mm
Number of track shoes (each side)	46
Track length on ground	3655mm
Ground clearance	404mm
Main Technical Specification
Operating weight(without ripper)	24500Kg
Ground pressure(without ripper)	0.0053MPa
Grade ability	58%
Overall dimensions (L×W×H, without ripper)	6220×4382×3482mm
Max. tractive force	280KN
Working Equipment
Blade type	Side-tipping
Width	4382mm
Height	1350mm
Max. digging depth	500mm
Max. lift above ground	1170mm
Tilting angle	9°
Blade capacity	7.4m3
Transmission System
Torque converter	Power separating hydraulic mechanical type
Transmission assembly	Integrated bevel gear, multiple stage planetary gear box, speed changing control valve,
Final drive	Two stage planetary reduction gear mechanism
Gear shifts(Forward/Reverse)	F3/R3
Travelling speed(km/h)
Forward/Reverse I	3.9/4.8
Forward/Reverse II	6.5/8.2
Forward/Reverse III	10.9/13.2
Main Features
Special elevated sprocket, triangle shaped track
Power separating hydraulic-mechanical torque
converter
Assembly-designed transmission, easy service
and maintenance
Three-stage alarm electron monitor system
Pivot-type articulating system
ROPS cab
Steering Clutch And Brake
Steering clutch
Oil-type, free-adjustment, multiple disc, pressed
hydraulically
Steering brake
Pressed by spring, separated hydraulically,
costant meshed type
Service Capacities
Fuel tank	450L
Water tank	118L
Implement oil tank	100L
Optional
Angle, U-blade
Air conditioner

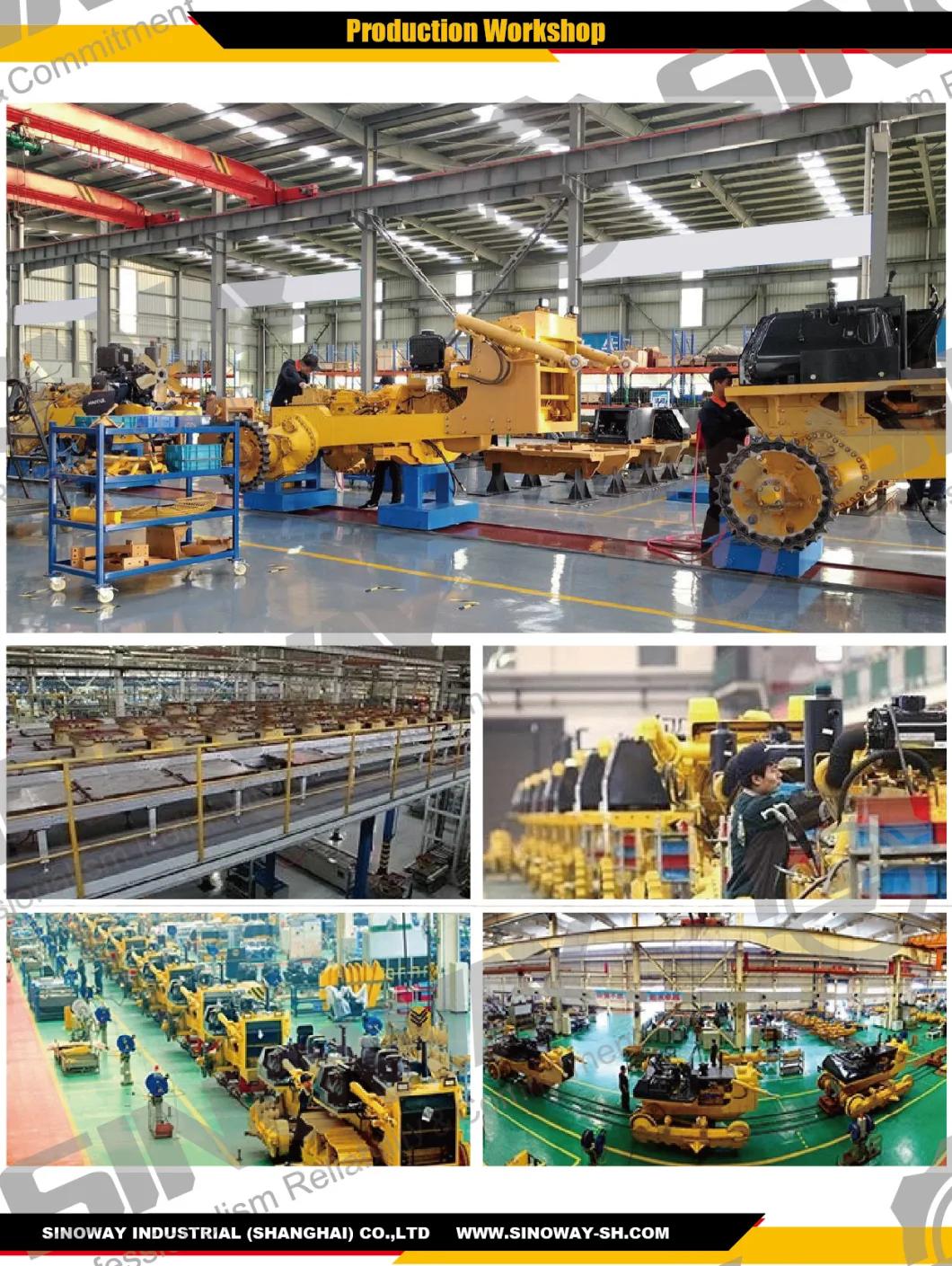

Production Line
