Zoomlion 56m Mobile Stationary Concrete Truck Mounted Pumps
Sinomada Heavy Industry (Changsha) Co., Ltd.- After-sales Service：Free Spare Parts
- Warranty：1 Year
- Type：Concrete Pump
- Shotcrete Type：Semi-Dry
- Machining Process：Hydraulic
- Structure：Cylinder Type
Base Info
- Model NO.：56X-6RZ
- Productivity：240m²,h
- Feeding Height：1400mm
- Vibrating Amplitude：2.6mm
- Certification：ISO9001: 2000, CE
- Condition：New
- Color：White
- Stroke Length：1700 mm
- Filling Height：1540 mm
- Pumping Frequency：24,15min-1
- Hopper Capacity：550L
- Transport Package：Nude
- Specification：10740x2500x3886 mm
- Trademark：ZOOMLION
- Origin：China
- HS Code：87059090
- Production Capacity：100 Units, Month
Description
Distribution valve
S-valve
Max. Concrete Output
m3/h
180
Max. Concrete Pressure
bar
90
Delivery Cylinder
mm
260
Stroke Length
mm
2100
Strokes
1/min
27
Hopper Capacity
L
600
Filling height
mm
1540
Hydraulic System
Closed
Hydraulic oil cooling
Double fans
High/Low Press. Switch
Manual
Lubrication on pump
Automatic
Lubrication on hopper
Automatic
GPS Data Manage
Optional
Boom Control Valve
Proportional
Number of Arms
6
Folding System
RZ
Max. Reach Vertical
m
56
Max. Reach Horizontal
m
50.8
Max. Reach Depth
m
40.2
Min. Unfolding Height
m
14.1
End Hose Length
m
3
Pipeline
DN125/5.5
Slewing Range
±350°
Slewing Motors
2 motors
Remote Control System
Radio
Water Pump
20L/min, 60bar
Tool kits with box
Standard

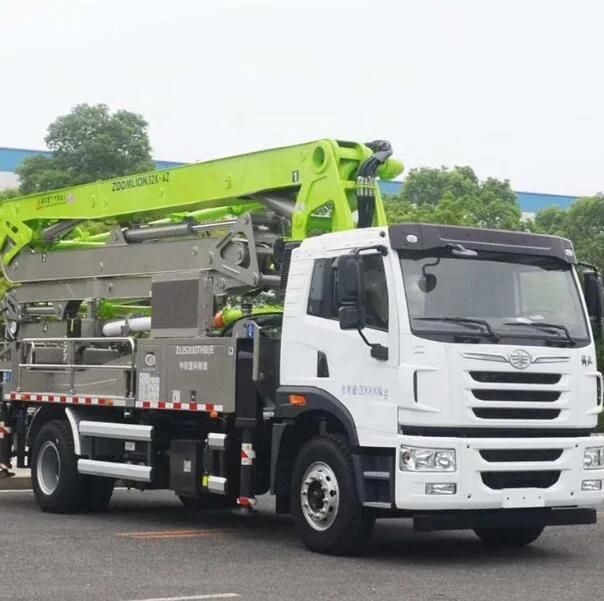

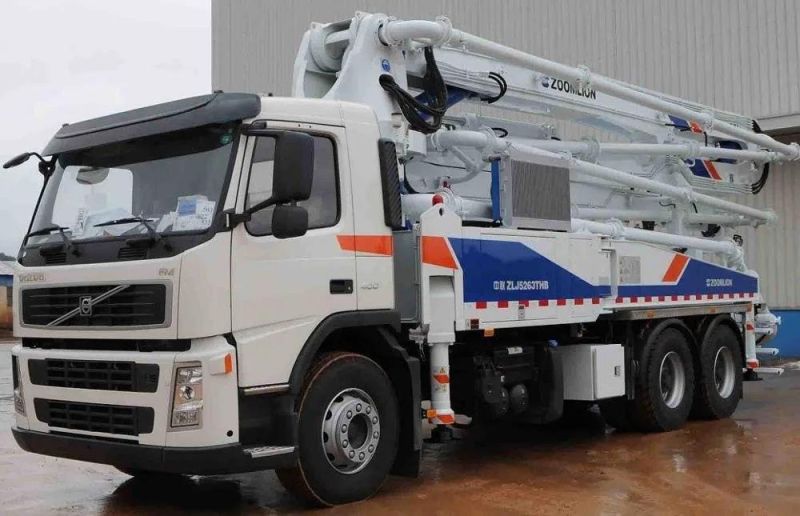

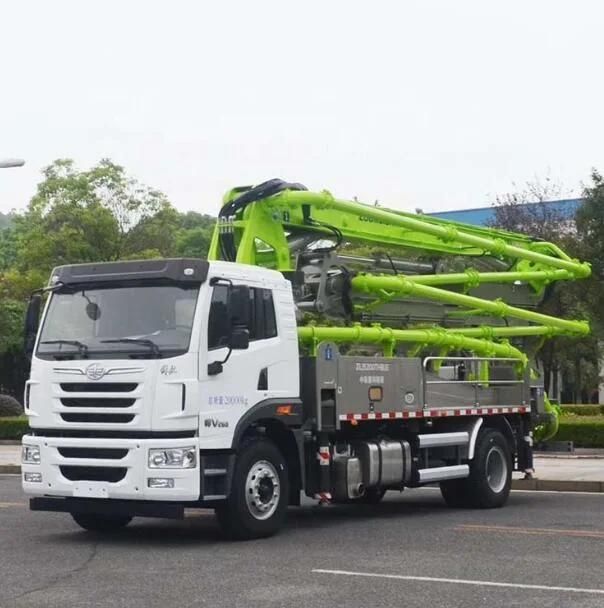

Construction Case Picture Truck Mounted Pump
