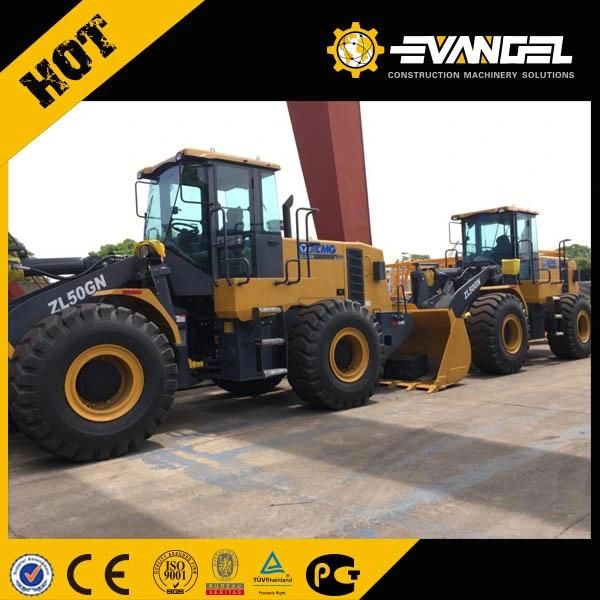

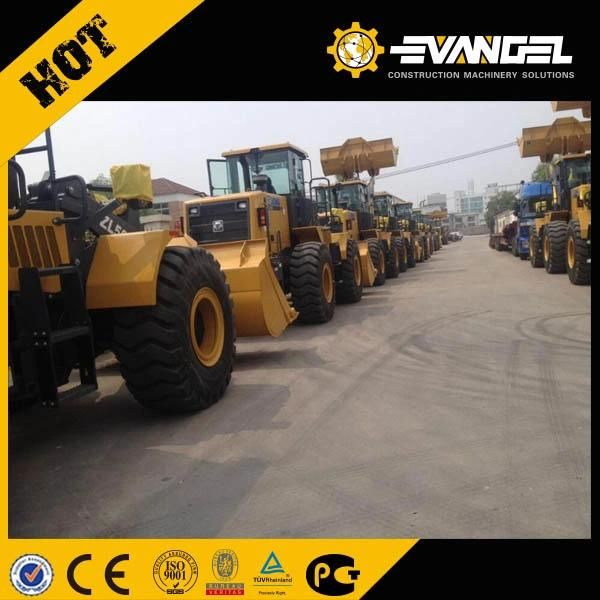

5 Ton 3m3 Wheel Loader Zl50gn Front End Loader for Sale
Evangel Industrial (Shanghai) Co., Ltd.- Certification：TUV, UL, ISO, RoHS, CE
- Condition：New
- Rated Load：5 Ton
- Transmission：Hydraulic Transmission
- Load and Unload Mode：Front Discharge
- Walking Mode：Wheeled
Base Info
- Model NO.：ZL50GN
- Type：Medium-sized Loader
- Bucket Capacity：3m3
- Dimension(Long * Breadth * High)：8300X3016X3362 mm
- Usage：Universal Type
- Scraper Type：Tractor-Scraper
- Load and Unload Method：Front Discharge
- Engine Power：147~515kw
- Color：Yellow
- Transport Package：Nude Package
- Specification：ISO, CE
- Trademark：Evangel
- Origin：Jiangsu, China
- HS Code：8429510000
- Production Capacity：50units,Month
Description
Contact Person: Adela Huang
Mobile: +86-15800954269
5 Ton Wheel Loader Zl50gn Shovel Loader for Sale
Main Specification:
* Rated load: 5 tons
* Bucket capacity : 3.0m3
* Dumping height: 3100mm
Main configuration
* Weichai engine WD10G220E23 or Shangchai SC11CB220G2B1
* Pilot control for ZL50GN/ZL50G,
* Planetary gearbox
Optional parts: rocket bucket,light bucket,fork
Parameter
Model
ZL50GN
Bucket capacity
3.0M3
Rated load
5000kg
Rated time
6 secretary
Total cycling time
11secretary
Max.drawing force
165Kn
Max.breakout force
170Kn
Articulation angle
35.
Min.turn radius
6400mm
Climb ability
30
Wheel base
3300mm
Tread
2250mm
Dumping clearance
3090mm
Dumping reach
1130mm
L×W×H
8165×3016×3485mm
Operating weight
17.5t
