Engine:

Make: SINOTRUK

Diesel:4-Stroke direct injection diesel engine 6-cylinder in-line with water cooling,

turbo-charging and intercooling

Engine model: STEYR, Euro II,WD615.47

Maximum output:371hp at 2200 rpm according to DIN

Maximum torque:1750Nm at 1100-1600 rpm

Displacement:9.726L

Bore:126mm

Stroke:130mm

Compression ratio:17.5:1

Specific fuel consumption:198g/kWh

Engine oil filling quantity:19L

Cooling system filling quantity(long-term filling):40L

Thermostat with80ºC opening begin

Twin cylinder air compressor

Rigid fan

Clutch

Φ430diaphragm spring clutch A-type,hydraulically operating with air assistance

Transmission

HW19710  10 Forward& 2 Reverse

Driving axle

HC16   Pressed axle housing, single reduction with hub reduction and with

differential locks between axles and wheels

Front Axle

Steering with double T-cross section beam

Chassis

Frame: U-profile parallel ladder frame with section of 300×80×8mm and reinforced

subframe, all cold riveted cross members

Fuel tank:350 L capacity with locking fuel cap, fitted to the off side of the chassis

Steering

Model ZF8098, hydraulic steering with power assistance

Ratio: 20.2-26.2

Braking System

Service brake: dual circuit compressed air brake

Parking brake(emergency brake):spring energy, compressed air

 operating on rear wheels

Auxiliary brake: engine exhaust valve brake

Wheel & Tyres

12.00-20 Bias tires

No.tire: 10+1 spare

Cab

HOWO 76 one sleeping bed, Air conditioning .Standard cab,

Electrical System

Operating voltage:24V,negative grounded

Starter:24V.7.5Kw

Alternator: 28V,1500W

Batteries:2*12V,165Ah

Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light

Instrument Panel

Active check central controller with indicators,

Dimensions in mm

Wheel base                                          3825+1350

Front wheel track                                          2022

Rear wheel track                                           1830

Front overhang                                            1500

Rear overhang                                             1300

Approach angle(°)                                           16

Departure angel(°)                                           33

Overall length                                             8775

Overall width                                              2496

Overall height                                              3958

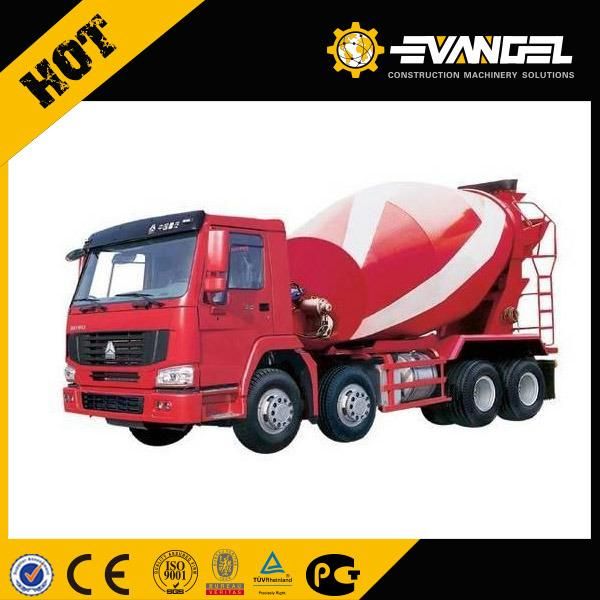

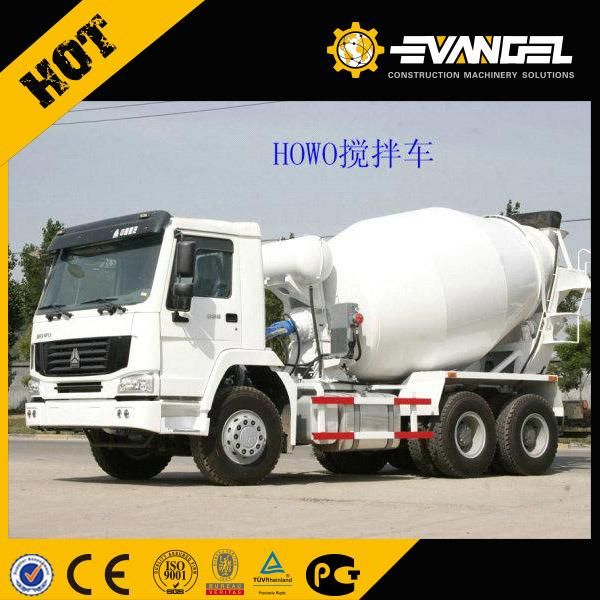

Mixer Body

Mixer Body

Agitating capacity:                                         14m3

Drum rotating speed:                                     0~18 r/min

Drum slope:                                             11 degree

Water tank volume:                                        400L

Discharge remain ratio:                                     <0.2%

Weight in kg

Kerb weight                                              13420

Gross weight                                             25000

Front axle loading capacity                                  9000

Rear axle loading capacity                                 2x16000

Performance

Maximum driving speed(km/h)                                 90

Maximum gradeability(%)                                     30
