• Model NO.：260X109X37
• Pitch：109mm
• Length：4033mm
• Transport Package：Pallet or Bare Package
• Specification：260X109X37
• Trademark：PY
• Origin：Shanghai China
• HS Code：8431499900
• Production Capacity：3000PC,Month

Basic Info.

Model NO. 260X109X37 Pitch 109mm Length 4033mm Transport Package Pallet or Bare Package Specification 260X109X37 Trademark PY Origin Shanghai China HS Code 8431499900 Production Capacity 3000PC/Month

Product Description

SIZE MAY FIT

Please confirm the size before order

PC10	260X109X37
PC10 AVANCE R	260X109X37
PC10.5	260X109X37
PC10.6	260X109X37
PC10R.8	260X109X37
PC12UU.2	260X109X37

Characteristics

1). Rubber track with Less damage to the ground surface
2). Low noise
3). High running speed
4). Less vibration
5). Low ground contack specific pressure
6). High tractive force
7). Light weight
8). Anti-vibration

Extreme Durability & Performance

Our joint free track structure, Special designed tread pattern, 100% virgin rubber,and one piece forging insert steel result extreme durability & performance and longer service life for construction equipment use. Gator Track tracks perform a high level of reliability and quality with our latest technology in mold tooling and rubber formulation.

Specification & application:

Rubber Track Size We Can Supply:

size width*pitch	links	size width*pitch	links	size width*pitch	links
130*72	29-40	250*109	35-38	B350*55K	70-88
150*60	32-40	260*52.5	74-80	350*56	80-86
150*72	29-40	260*55.5K	74-80	350*72.5KM	62-76
170*60	30-40	Y260*96	38-41	350*73	64-78
180*60	30-40	V265*72	34-60	350*75.5K	74
180*72	31-43	260*109	35-39	350*108	40-46
180*72K	32-48	E280*52.5K	70-88	350*109	41-44
180*72KM	30-46	280*72	45-64	Y320*107K	39-41
180*72YM	30-46	V280*72		400*72.5N	70-80
B180*72	31-43	Y280*106K	35-42	400*72.5W	68-92
H180*72	30-50	300*52.5N	72-98	Y400*72.5K	72-74
T180*72		300*52.5W	72-92	KB400*72.5K	68-76
V180*72K	30-50	300*52.5K	70-88	400*72.5KW	68-92
190*60	30-40	300*52.5KW	72-92	400*73	64-78
190*72	31-41	E300*52.5K	70-88	400*74	68-76
200*72	34-47	KB300*52.5	72-92	400*75.5K	74
200*72K	37-47	KB300*52.5N	72-98	Y400*107K	46
Y200*72	40-52	JD300*52.5N	72-98	400*78
230*48	60-84	300*53K	80-96	K400*142	36-37
230*48A	60-84	300*55	70-88	400*144	36-41
230*48K	60-84	300*55YM	70-88	Y400*144K	46-41
230*72	42-56	300*55.5K	76-82	450*71	76-88
B230*72K	34-60	300*71K	72-76	DW450*71	76-88
230*72K	42-56	300*72	36-40	450*73.5	76-84
V230*72K	42-56	BA300*72	36-46	450*76	80-84
W230*72		300*109N	35-42	450*81N	72-80
230*96	30-48	300*109W	35-44	450*81W	72-78
230*101	30-36	K300*109	37-41	KB450*81.5	72-80
250*47K	84	300*109WK	35-42	K450*83.5	72-74
250*48.5K	80-88	320*52.5	72-98	Y450*83.5K	72-74
250*52.5	72-78	320*54	70-84	K450*163	38
250*52.5N	72-78	B320*55K	70-88	485*92W	74
250*52.5K	72-78	Y320*106K	39-43	K500*71	72-76
250*72	47-57	350*52.5	70-92	500*92	72-84
B250*72	34-60	E350*52.5K	70-88	500*92W	78-84
B250*72B	34-60	350*54.5K	80-86	K500*146	35
250*96	35-38

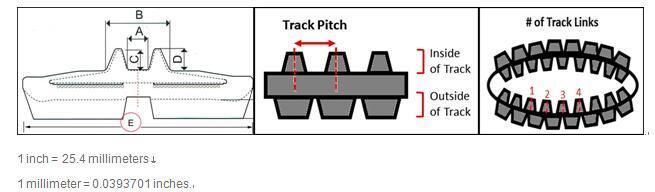

How to confirm a replacement rubber track size:

First try to see if the size is stamped along the inside of the track.
If you can't find the rubber track size stamped on the track, Pls inform the blow information to us:

1. The make, model, and year of the vehicle
2. The Rubber Track Size = Width(E) x Pitch x Number of Links (described below)

Product Warranty
All our rubber tracks are made with a serial Number, we may trace the product date against the serial Number.

It's normally 1 year factory warranty from production date, or 1200 working hours.

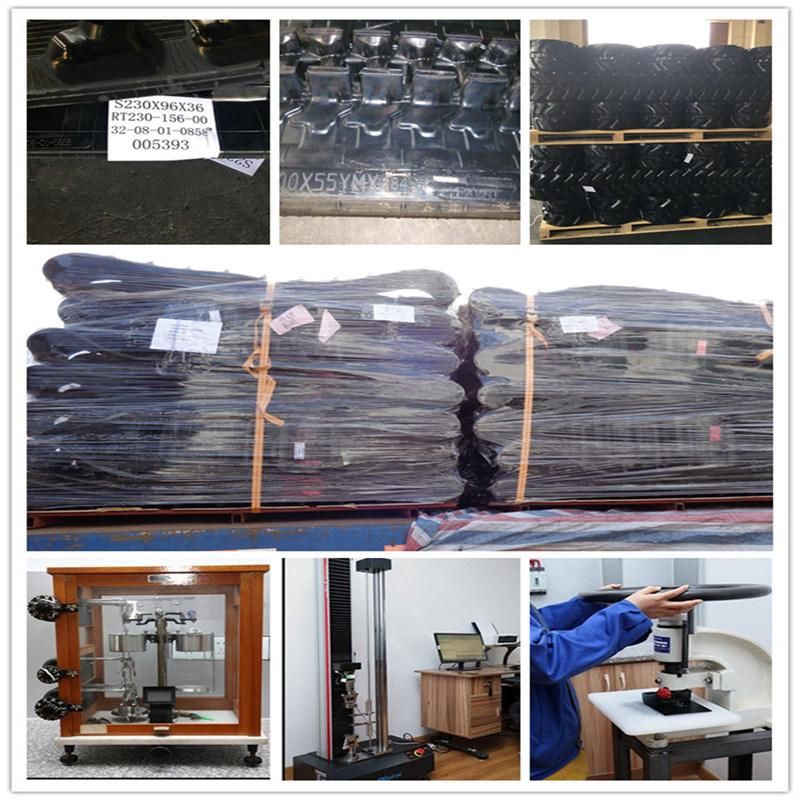

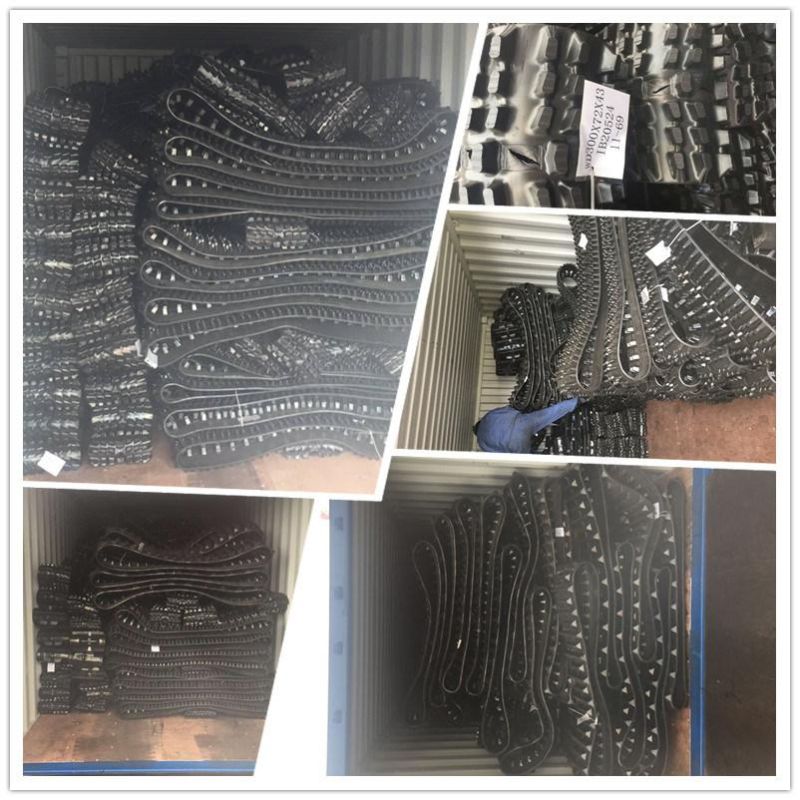

Other photos for reference
