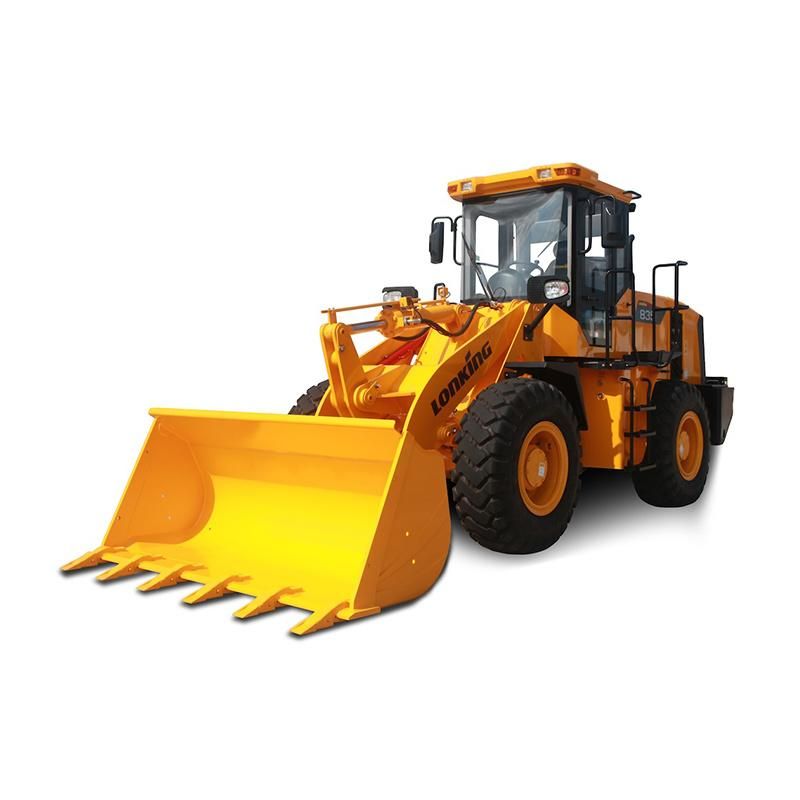

• Model NO.：Cdm833
• Type：Medium-sized Loader
• Bucket Capacity (M3)：1.7
• Rated Payload(Kg)：3000
• Operating Weight(Kg)：10760
• Traction Force(Kn)：97
• Breakout Force(Kn)：100
• Engine：Weichai Wp6g125e22
• Rated Power(Kw/Rpm)：92,2200
• Peak Torque(Nm/Rpm)：500,1400-1600
• Tire：17.5-25 L-3 12pr Tt
• Steering Pump：Gear Pump
• Transport Package：Nude Packing
• Specification：2300 X 2105X 1780mm
• Origin：Jiangsu, China
• HS Code：84295100
• Production Capacity：1000,PCS

Overall Data Bucket Capacity (m3)1.7Rated Payload(Kg)3000Operating Weight(Kg)10760±300Traction Force(kN)97±3Breakout Force(kN)100±3Travel speeds (km/h): IIIIII Forward6.512.032.0 Reverse6.812.533.5 EngineWEICHAI WP6G125E22Rated Power(kW/rpm)92/2200Peak Torque(Nm/rpm)500/1400-1600Starting Voltage(V)24Drive Train Torque ConverterSingle-stage, Single-turbine, 3-elementTorque Ratio3.5TransmissionCountershaft Powershift TransmissionGear3F/3RPressure of Transmission(MPa)1.2~1.5Main ReducerSpiral bevel, 1-stage ReductionFinal ReducerPlanetary ReductionTire17.5-25 L-3 12PR TTBrake System Service BrakeSingle Circuit Caliper,Dry BrakeSetting Pressure (MPa)0.78Parking BrakeFlexible Shaft Controlled CaliperEmergency BrakeFlexible Shaft Controlled Caliper Steering System TypeHydraulic Load Sensing SystemCylinders-bore×Stroke(mm)2-80×315Steering PumpGear PumpSystem Pressure(MPa)14Flowrate(L/min/rpm)88/2200Steering Angle±35°Hydraulic System Lift Cylinders-bore×Stroke(mm)2-125×784Tilt Cylinder-bore×Stroke(mm)1-140×553Model of Implement PumpGear PumpFlowrate(L/min/rpm)176/2200System Pressure(MPa)16Pilot Control System Pressure (MPa)2.5Hydraulic Cycle Time, Rated Load in Bucket(in second):Raise(Loaded)DumpLower(Empty)Total5.51.33.710.5Electrical SystemSystem Voltage(V)24Battery (2 in series)(Ah)105Lamp Voltage(V)24Service Refill Capacity Fuel Tank(L)200Hydraulic Tank(L)173Crankshaft(L)17Transmission(L)36Front Axle(L) /Rear Axle(L)18.5/18.5Air Conditioning System Heating Capacity(W)5800 (±10%)Cooling Capacity(W)4500 (±10%)
