• Model NO.：LG946L
• Rated Operating Load：4000kg
• Rated Capacity：2.3m3
• Operating Weight：13000kgs
• Max.Dumping Height：2950mm
• Dumping Distance：1050mm
• Engine：Weichai Wp6g175e201
• Rated Power：129kw
• Transmission System：Sdlg Transmission
• Hydraulic System：Pilot Control,Load-Sensing Steering
• Lifting Arm：Standard
• Braking System：Dual Braking Pedal
• Cooling/Heating System：A,C
• Transport Package：Nude Packing
• Specification：7295*2766*3340mm
• Origin：Jiangsu, China
• HS Code：84295100
• Production Capacity：1000,PCS

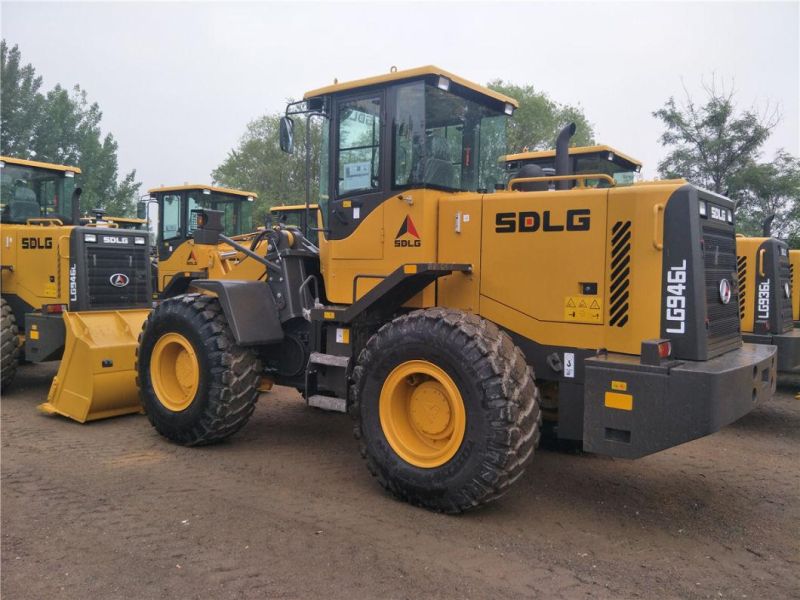

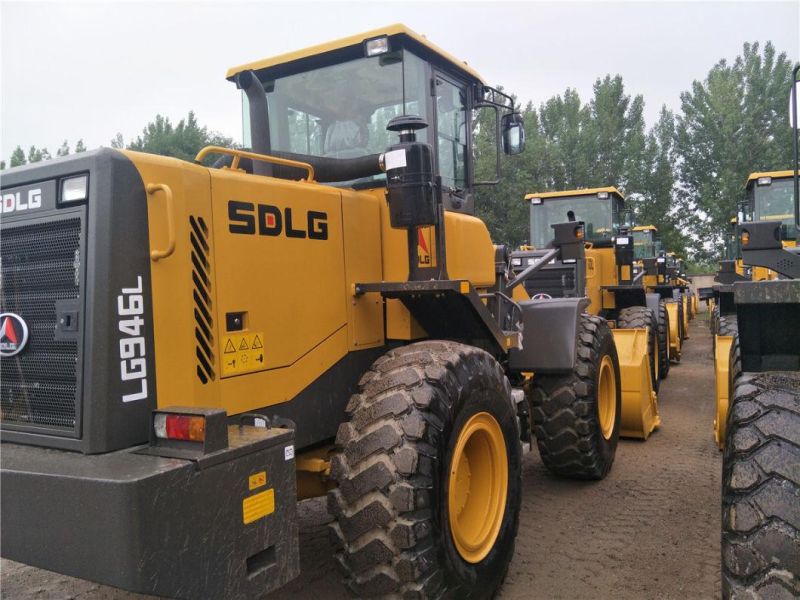

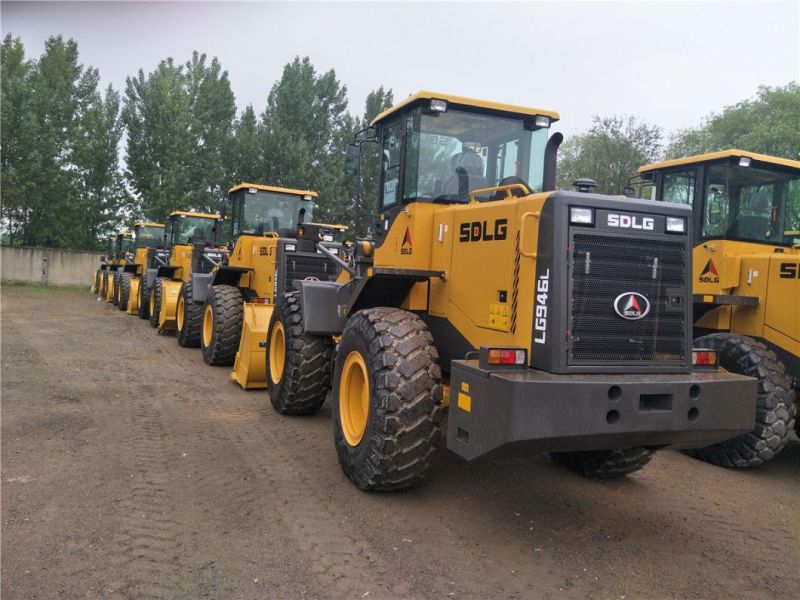

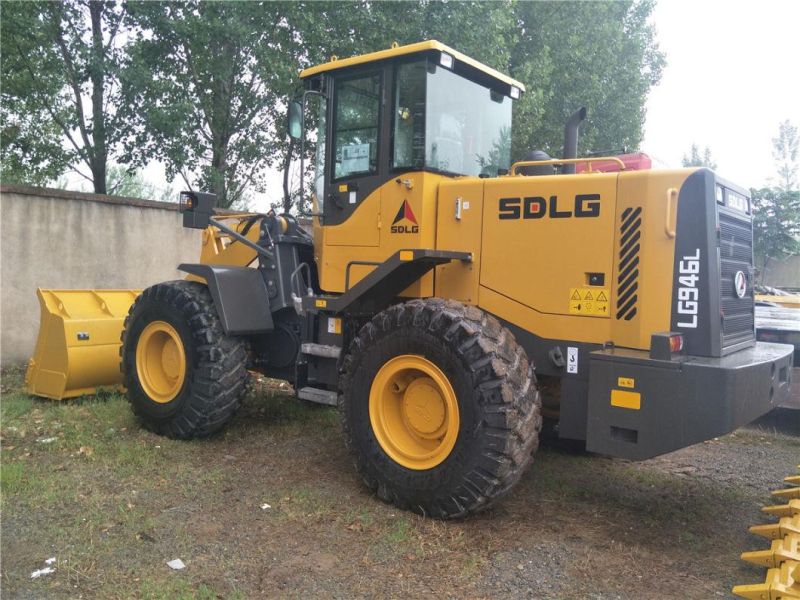

SDLG LG946L Main ConfigurationRated Load4000kgs(4Ton)Operating Weight13000kgsStandard Bucket2.3m3Overall Dimension(L*W*H)7295*2766*3340mmMax.dumping height2950mmDumping distance1050mmEngineWeichai WP6G175E201Rated Power129kWAxleSDLG reinforced axleTransmission systemSDLG TransmissionHydraulic systemPilot control,load-sensing steeringLifting armStandardControl valve2-spool valveBraking SystemDual braking pedalCabPilot control valve (split type)Cooling/Heating systemA/COthersStarting InterlockingEngine tachometerFuel tank lockHose for inflating tyreTiltable steering columnRadioOptional ConfigurationQuick Hitch System, FOPS&ROPS Cabin , Large Bucket
