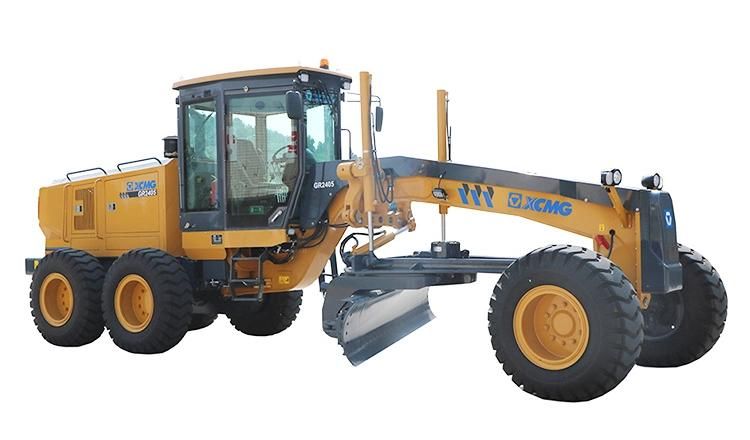

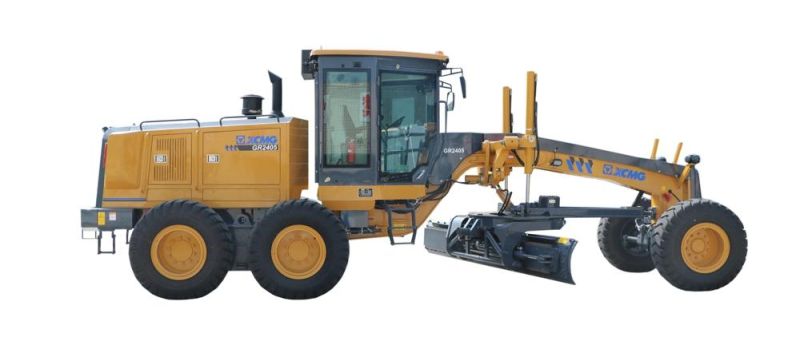

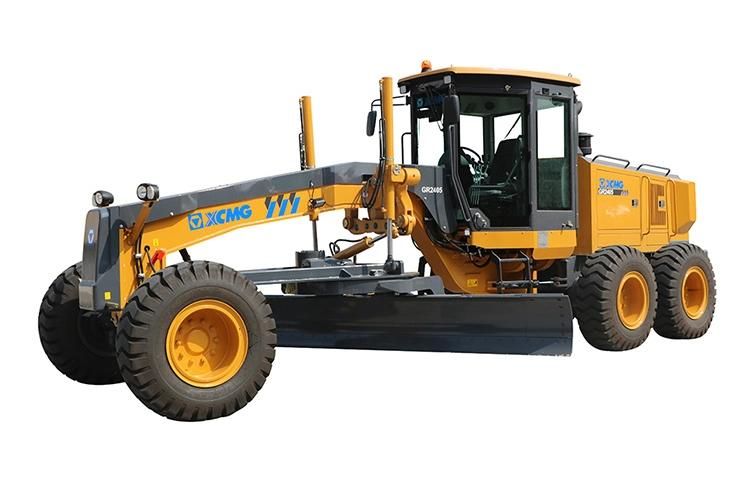

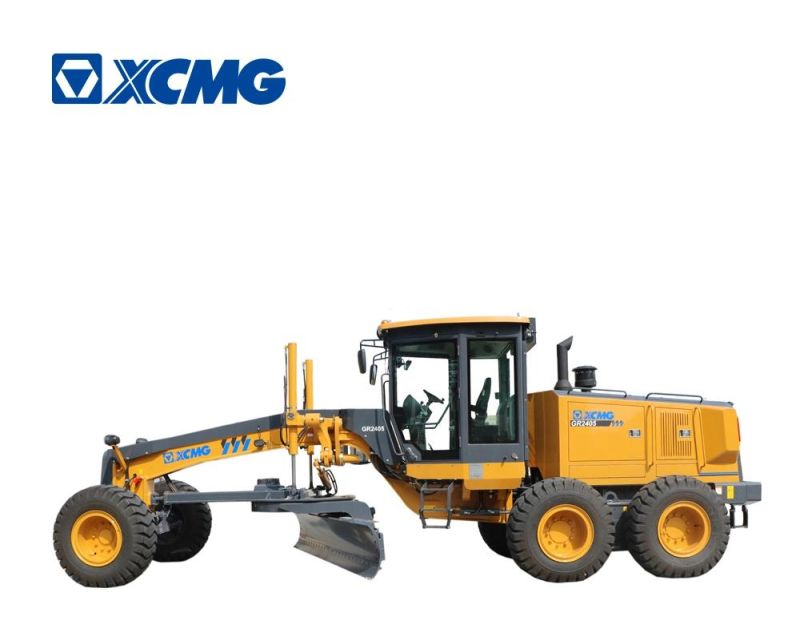

• Model NO.：GR2405
• Forward Speed：38km,H
• Reverse Speed：23km,H
• Rated Power/Speed：178kw,2200rpm
• Engine Brand：Cummins
• Ground Clearance (Front Axle)：586mm
• Working System Pressure：22MPa
• Minimum Turning Radius：7.3m
• Maximum Lift Height：480mm
• Maximum Cutting Depth：715mm
• Specification：8015*2380*3050mm
• Trademark：XCMG
• Origin：Jiangsu, China
• Production Capacity：10000 Unit,Units Per Year

Product ParametersItemGR2405Basic parametersEngine modelQSB6.7Rated power/speed178kW/2200rpmOverall dimension (standard)9300x2625x3470Total weight (standard)16700 kgTire specification17.5-25Ground clearance (front axle)586mmTread2156mmSpace of front and rear axles6447 mmSpace of middle and rear wheels1538 mmPerformance parametersForward velocity5,8,11,18,25,40km/hReverse speed5,11,25km/hTractive effort f=0.75≥86 kNMaximum gradeability≥25%Tire inflation pressure260kPaWorking system pressure22MPaTransmission pressure1.85-2.2MpaWorking parametersMaximum steering angle of front wheel±48°Maximum slant angle of front wheel±17°Maximum oscillating angle of front axle±15°Maximum oscillating angle of equilibrium box±15°Maximum steering angle of frame±25°Minimum turning radius7.3mScrape knifeMaximum lift height480mmMaximum cutting depth715mmMaximum tilt angle90°Cutting angle29°-69°Angle of revolution360°Length & chord height3965x610mmOil filling amountCoolant50LFuel tank270LEngine24LTransmission38LBalancing box60LDrive axle36LHydraulic oil190LCase
