1m3 3m3 Diesel Small Mobile Mini Concrete Mixer Truck for Morocco
JINING HENGWANG CONSTRUCTION MACHINERY CO., LTD.- After-sales Service：Provide
- Warranty：One Year
- Type：Concrete Mixing Truck
- Shotcrete Type：Wet
- Machining Process：Hydraulic
- Structure：Spiral Type
Base Info
- Model NO.：1.2cbm
- Productivity：10cbm,H
- Feeding Height：2500mm
- Vibrating Amplitude：0.8mm
- Certification：ISO9001: 2000, CE
- Condition：New
- Color：White and Green
- Actual Mixing Capacity：1.2cbm
- Rotary Drum Capacity：1.4cbm
- Slump of Concrete：70-260mm
- Tank Capacity：540L
- Reducer Ratio：01:10
- Rated Power：58kw
- Max Torque：255,1500-1800 380,1500-1800 N.M,R,Min
- Max Running Speed：24km,H
- Min Steering Radius：5000mm
- Climbing Capacity：26
- Tire：23.5,70-16
- Driving Way：4×4
- Weight：4580kg
- Maximum Load Capacity：2800kg
- Whole Machinery Weight：7380kg
- Transport Package：Nude Package
- Specification：6100*1850*3000mm
- Trademark：HW
- Origin：China
- HS Code：8705400000
- Production Capacity：300sets,Month
Description
The main performance parameters of the chassis and the engine
Engine type / displacement
L
CF4B68G-Z-13B2/CF4C100T-Z-13B2
model
Straight injection type four-stroke water-cooled supercharged diesel engine
Rated power
kw/r/min
58KW/2400
Max torque
N.m/r/min
255/1500-1800 380/1500-1800
Max running speed
km/h
24
Min steering radius
mm
5000
Climbing capacity
%
26
Tire
23.5/70-16
Driving way
4×4
Weight
kg
4580
Maximum load capacity
kg
2800
Whole machinery weight
kg
7380

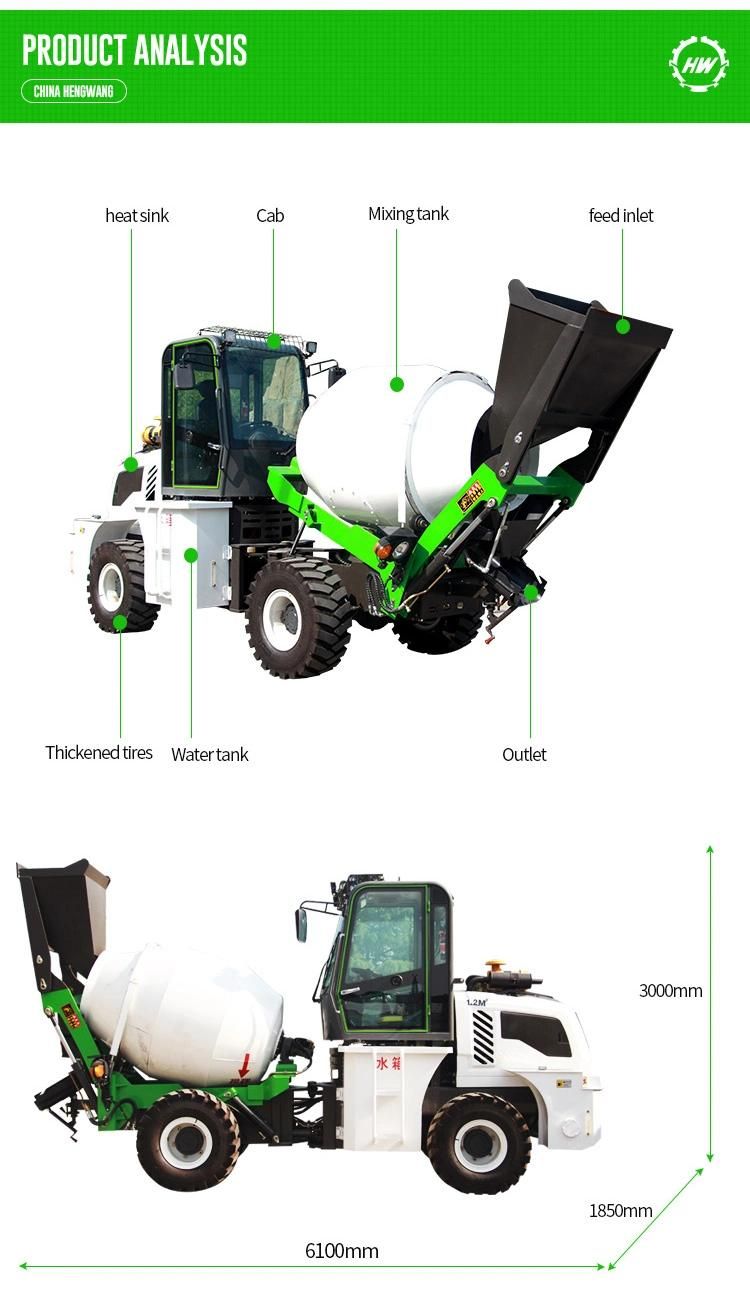

Overall size(L*W*H)
mm
6100*1850*3000

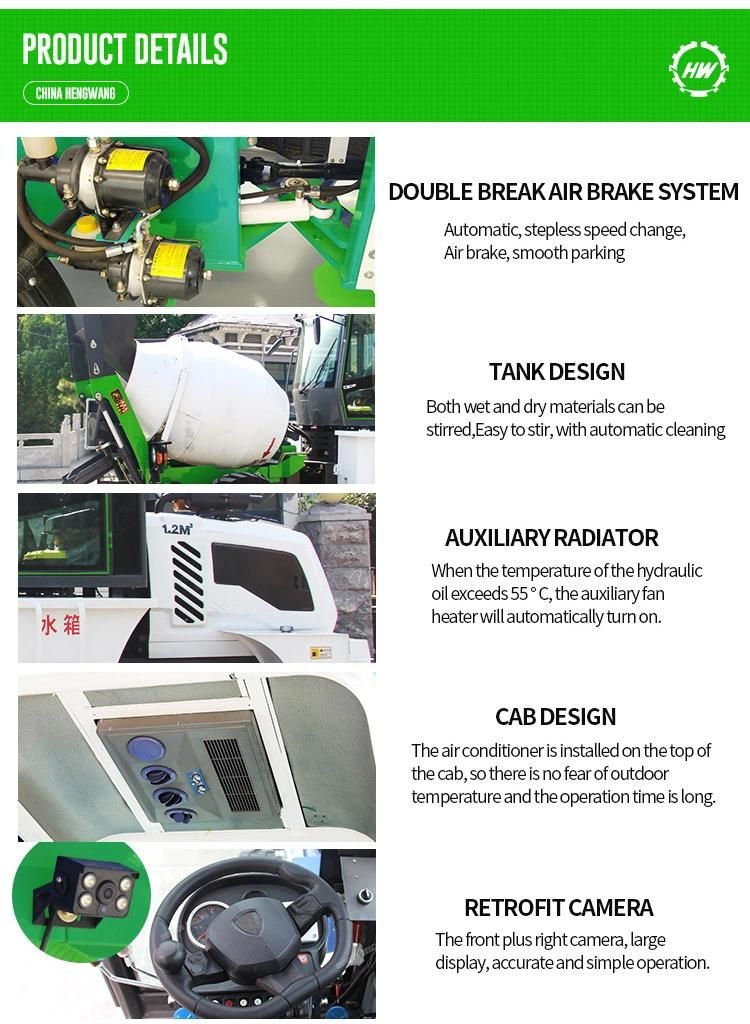

Self loading mobile concrete cement mixer truck 1.2cbm product details:
The wide cabin windscreen and the specially designed loading arms dramatically improve visibility during casting operations. This high-productivity self loading concrete mixer is price-worth, easy to use, features excellent daily performance
Main Feature :
* Italy Leading Design,Automatic Feeding Mixing System
* Simple And Convenient Operation
* High Efficiency Output,Save Time And Labor,Save Cost
* The Perfect Combination Of Mixing Truck And Loading Car* 180 Degrees With A Rotary Stirring Tank,Two-Way Unloading
Packing & Shipping :Note : 1 unit HWJB200 is in one 40 ft Container .
Application:
Company Information:
