Manufacturer 2cbm Cement Mortar Price Trucks Volumetric Self Loading Concrete Mixer Truck with Pump
JINING HENGWANG CONSTRUCTION MACHINERY CO., LTD.- After-sales Service：Provide
- Warranty：One Year
- Type：Concrete Mixing Truck
- Shotcrete Type：Wet
- Machining Process：Hydraulic
- Structure：Spiral Type
Base Info
- Model NO.：2.0cbm
- Productivity：16cbm,H
- Feeding Height：2500mm
- Vibrating Amplitude：0.8mm
- Certification：ISO9001: 2000, CE
- Condition：New
- Color：White and Blue
- Actual Mixing Capacity：2.0cbm
- Rotary Drum Capacity：2.3cbm
- Slump of Concrete：70-260mm
- Tank Capacity：540L
- Reducer Ratio：01:10
- Rated Power：76kw
- Max Torque：255,1500-1800 380,1500-1800 N.M,R,Min
- Max Running Speed：24km,H
- Min Steering Radius：4250mm
- Climbing Capacity：26
- Tire：23.5,70-16
- Driving Way：4*4
- Weight：4880kg
- Maximum Load Capacity：3000kg
- Whole Machinery Weight：6480kg
- Transport Package：Nude Package
- Specification：6700*2300*2900
- Trademark：HW
- Origin：China
- HS Code：8705400000
- Production Capacity：300sets,Month
Description
The main performance parameters of the chassis and the main performance parameters of the engine
Engine type / displacement
L
CF4B68G-Z-13B2/CF4C100T-Z-13B2
model
Straight injection type four-stroke water-cooled supercharged diesel engine
Rated power
kw/r/min
76KW/2400
Max torque
N.m/r/min
255/1500-1800 380/1500-1800
Max running speed
km/h
24
Min steering radius
mm
4250
Climbing capacity
%
26
Tire
23.5/70-16
Driving way
4×4
Weight
kg
4880
Maximum load capacity
kg
3000
Whole machinery weight
kg
6480
Overall size(L*W*H)
mm
6700*2300*2900
The wheelbase
mm
2250
Bucket capacity
m³
0.45/0.55
Self Loading concrete mixer truck 2.0cbm
Product Details

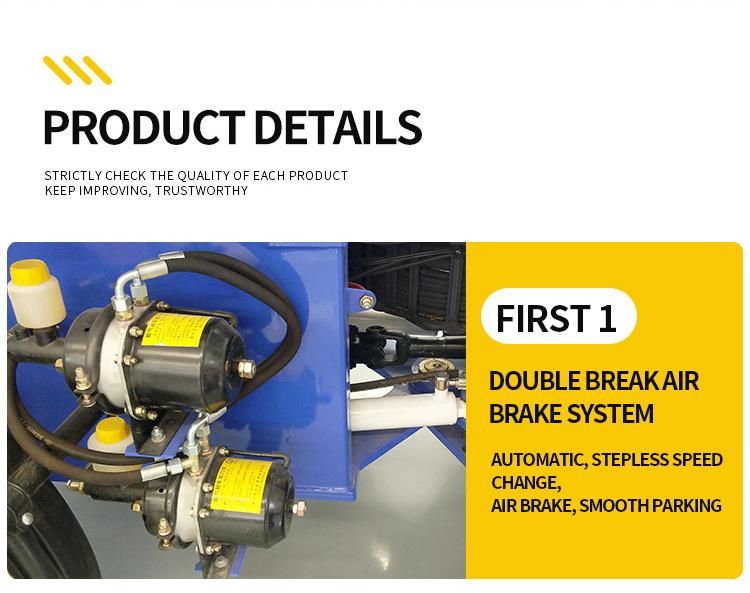

Mixer truck adapted air brake, more safety.

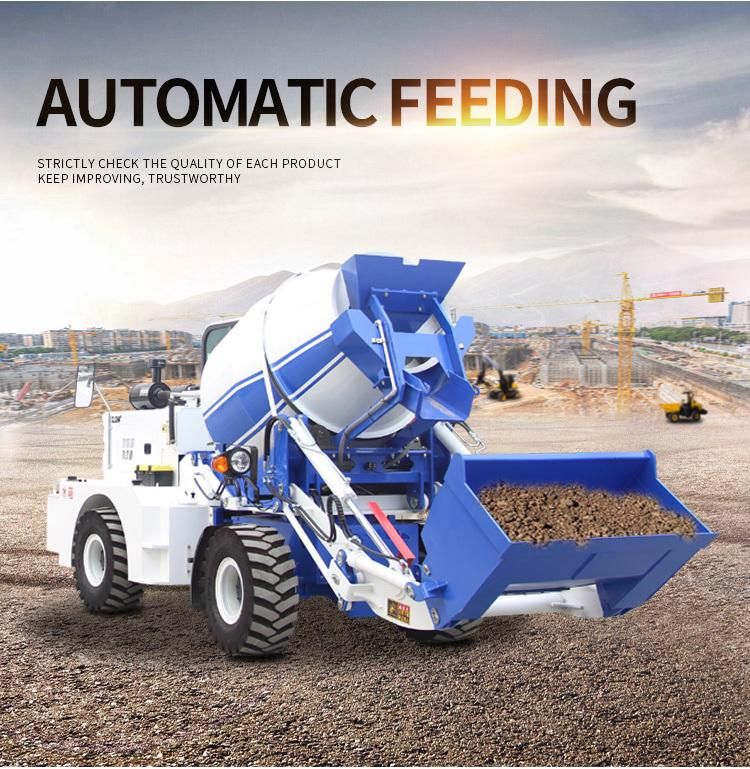

Automatic feeding concrete mixer truck Product details
Construction Site
Company Profile
Certifications
