Durable Automatic Self Loading Mini Concrete Mixer Truck
JINING HENGWANG CONSTRUCTION MACHINERY CO., LTD.- After-sales Service：Provide
- Warranty：One Year
- Type：Concrete Mixing Truck
- Shotcrete Type：Wet
- Machining Process：Hydraulic
- Structure：Spiral Type
Base Info
- Model NO.：3.5m3
- Productivity：25cbm,H
- Feeding Height：3000mm
- Vibrating Amplitude：0.8mm
- Certification：ISO9001: 2000, CE
- Condition：New
- Color：White and Blue
- Actual Mixing Capacity：3.5cbm
- Rotary Drum Capacity：3.6cbm
- Slump of Concrete：70-260mm
- Tank Capacity：540L
- Reducer Ratio：01:24
- Rated Power：91kw
- The Wheelbase：3000mm
- Max Running Speed：24km,H
- Min Steering Radius：4500mm
- Climbing Capacity：26
- Tire：16,70-20
- Driving Way：4*4
- Weight：7500kg
- Maximum Load Capacity：7800kg
- Whole Machinery Weight：15300kg
- Transport Package：Nude Package
- Specification：6650*2600*3200mm
- Trademark：HW
- Origin：China
- HS Code：8705400000
- Production Capacity：300sets,Month
Description
The main performance parameters of the chassis and the main performance parameters of the engine
Engine type / displacement
L
CF4C100T-Z-13B2
model
Straight injection type four-stroke water-cooled supercharged diesel engine
Rated power
kw/r/min
91KW/2600
Max torque
N.m/r/min
380/1500-1800
Max running speed
km/h
24
Min steering radius
mm
4500
Climbing capacity
%
26
Tire
16/70-20
Driving way
4×4
Weight
kg
7500
Maximum load capacity
kg
7800
Whole machinery weight
kg
15300
Overall size(L*W*H)
mm
6650*2600*3200
The wheelbase
mm
3000
Bucket capacity
m³
0.6
Product Details
The concrete output is 3.5m3 per Batch, 18 m3 per Hour. The wide cabin and the specially designed loading arms dramatically improve visibility during casting operations. This high-productivity self loading concrete mixer is price-worth, easy to use, features excellent daily performance

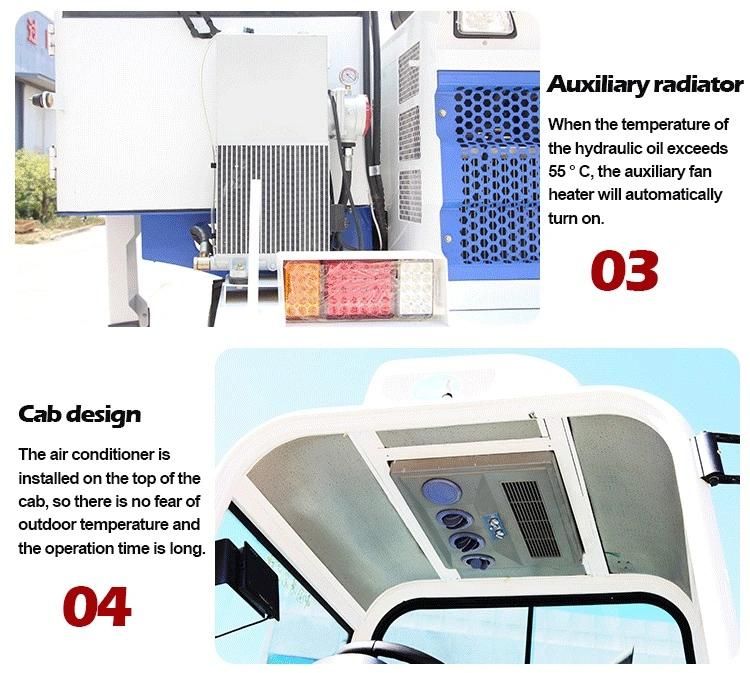

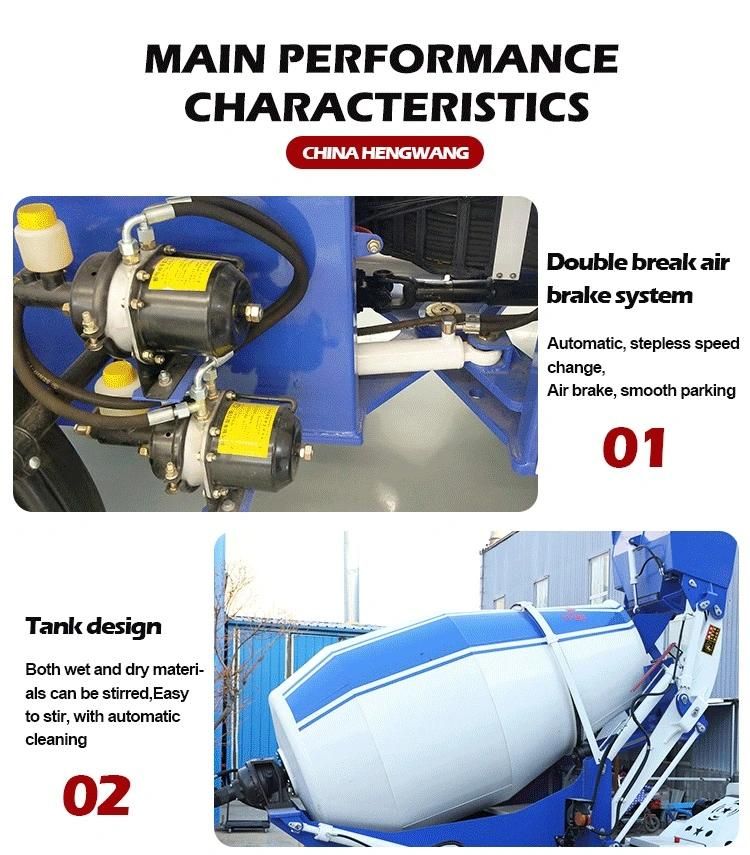

Automatic feeding concrete mixer truck Product details

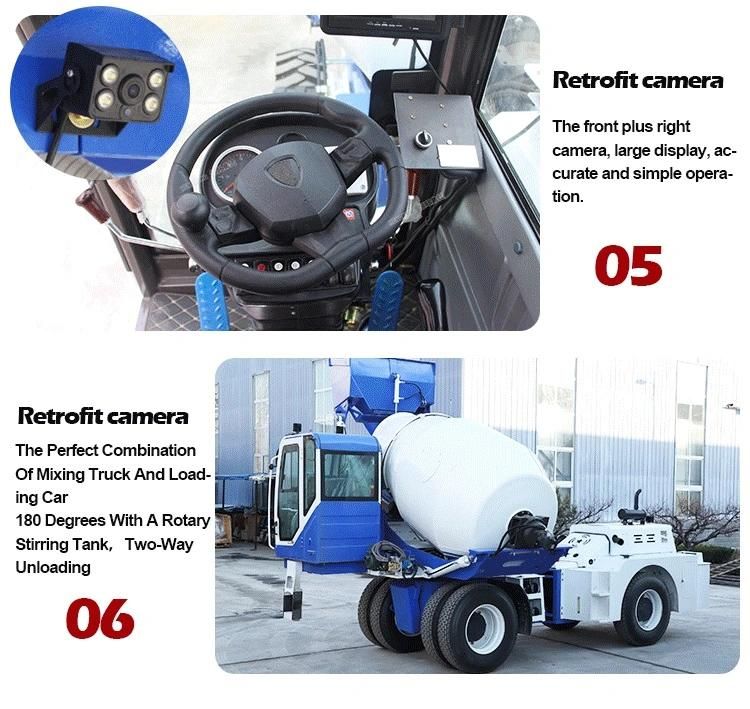

Self Loading concrete mixer truck 3.5cbm

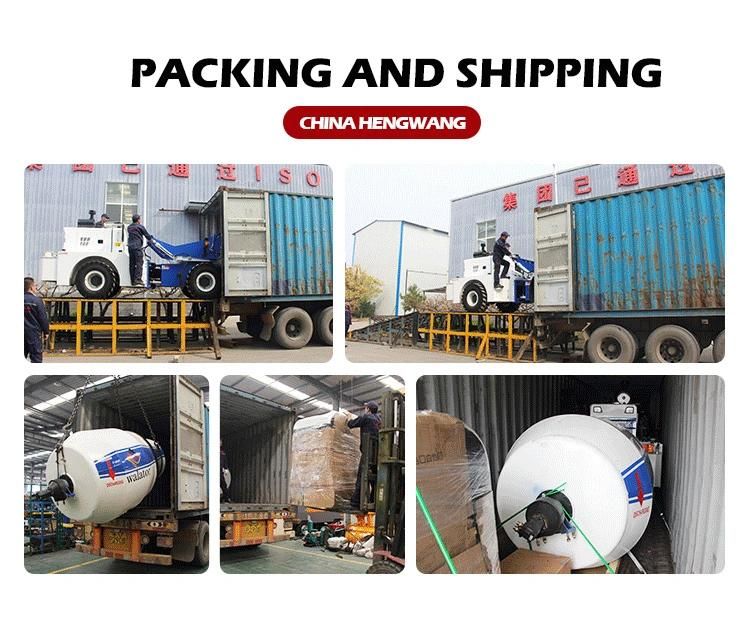

Shipping & Packing :One set of 3.5cbm concrete mixer truck can be loaded in 40HQ container
Our company :
Certificate :
Exhibition:
