Hot Model 2cbm Mini Cargo Truck Mixer for Concrete
JINING HENGWANG CONSTRUCTION MACHINERY CO., LTD.- After-sales Service：Provide
- Warranty：One Year
- Type：Concrete Mixing Truck
- Shotcrete Type：Wet
- Machining Process：Hydraulic
- Structure：Spiral Type
Base Info
- Model NO.：2.0cbm
- Productivity：16cbm,H
- Feeding Height：2500mm
- Vibrating Amplitude：0.8mm
- Certification：ISO9001: 2000, CE
- Condition：New
- Color：White and Blue
- Actual Mixing Capacity：2.0cbm
- Rotary Drum Capacity：2.3cbm
- Slump of Concrete：70-260mm
- Tank Capacity：540L
- Reducer Ratio：01:10
- Rated Power：76kw
- Max Torque：255,1500-1800 380,1500-1800 N.M,R,Min
- Max Running Speed：24km,H
- Min Steering Radius：4250mm
- Climbing Capacity：26
- Tire：23.5,70-16
- Driving Way：4*4
- Weight：4880kg
- Maximum Load Capacity：3000kg
- Whole Machinery Weight：6480kg
- Transport Package：Nude Package
- Specification：6700*2300*2900
- Trademark：HW
- Origin：China
- HS Code：8705400000
- Production Capacity：300sets,Month
Description
The main performance parameters of the chassis and the main performance parameters of the engine
Engine type / displacement
L
CF4B68G-Z-13B2/CF4C100T-Z-13B2
model
Straight injection type four-stroke water-cooled supercharged diesel engine
Rated power
kw/r/min
76KW/2400
Max torque
N.m/r/min
255/1500-1800 380/1500-1800
Max running speed
km/h
24
Min steering radius
mm
4250
Climbing capacity
%
26
Tire
23.5/70-16
Driving way
4×4
Weight
kg
4880
Maximum load capacity
kg
3000
Whole machinery weight
kg
6480
Overall size(L*W*H)
mm
6700*2300*2900
The wheelbase
mm
2250
Bucket capacity
m³
0.45/0.55

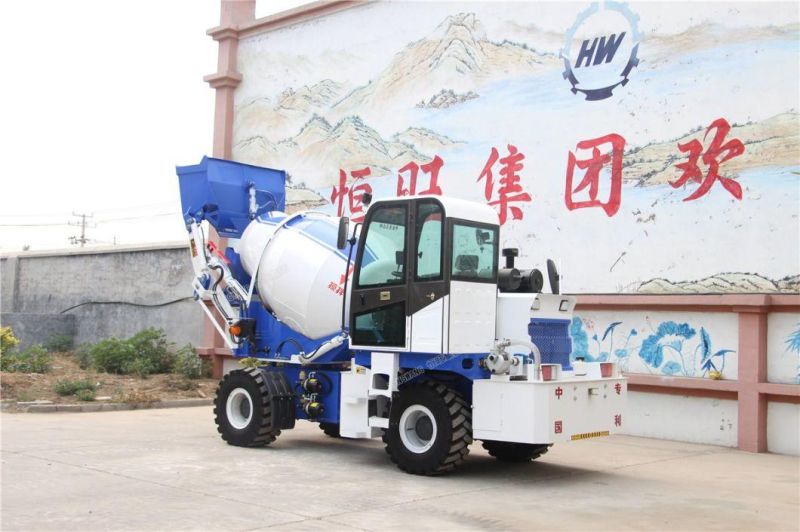

Self Loading concrete mixer truck 2.0cbm

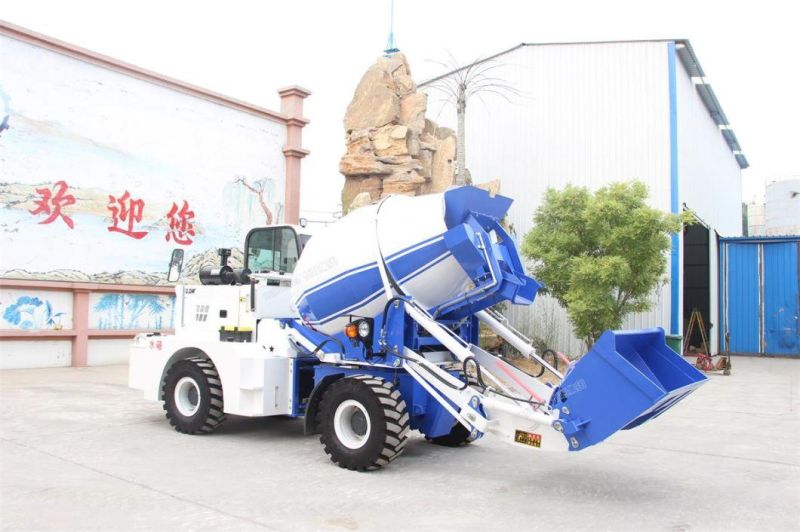

2CBM mixer drum capacity self loading concrete mixer truck with loading bucket

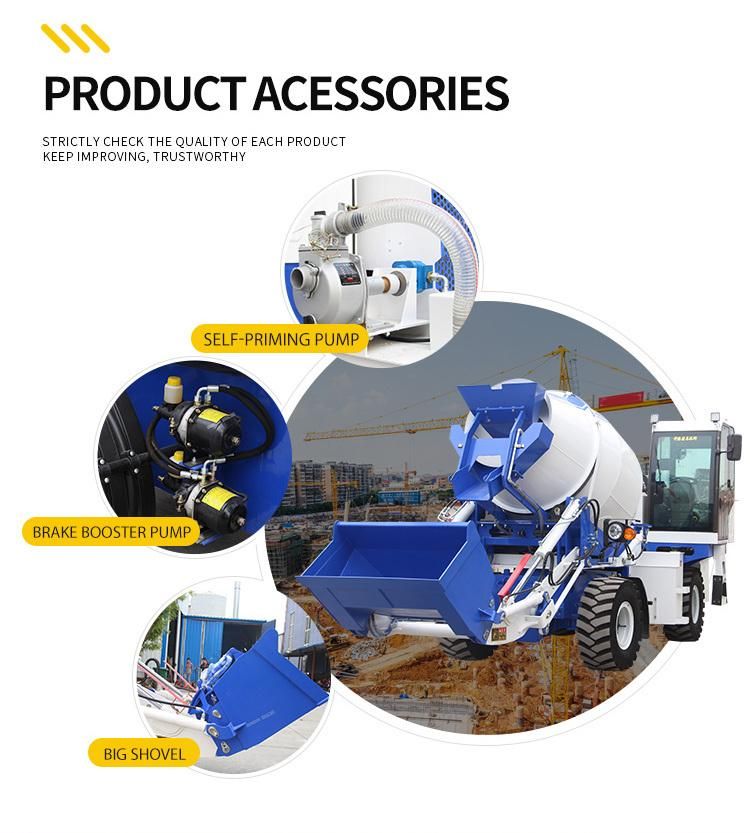

Product Details

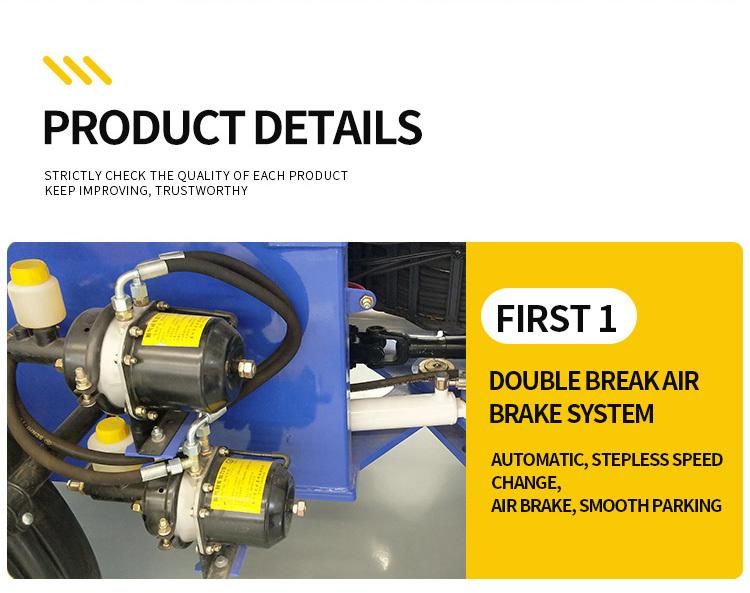

Mixer truck adapted air brake, more safety.

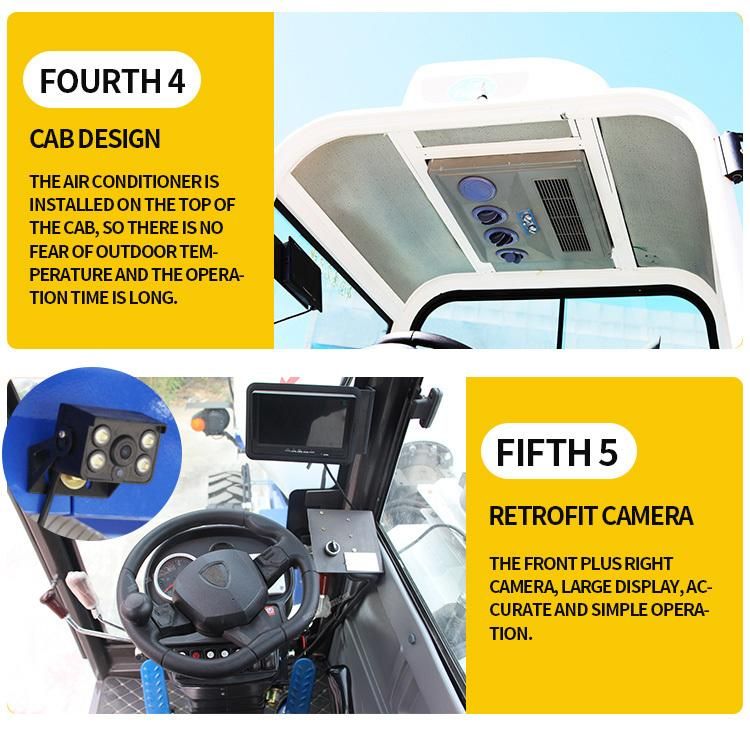

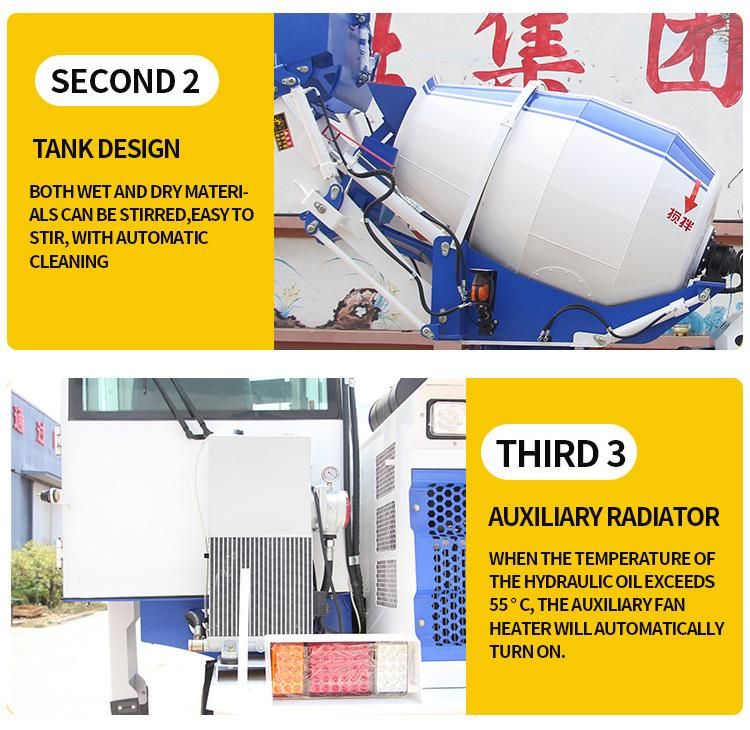

Automatic feeding concrete mixer truck Product details

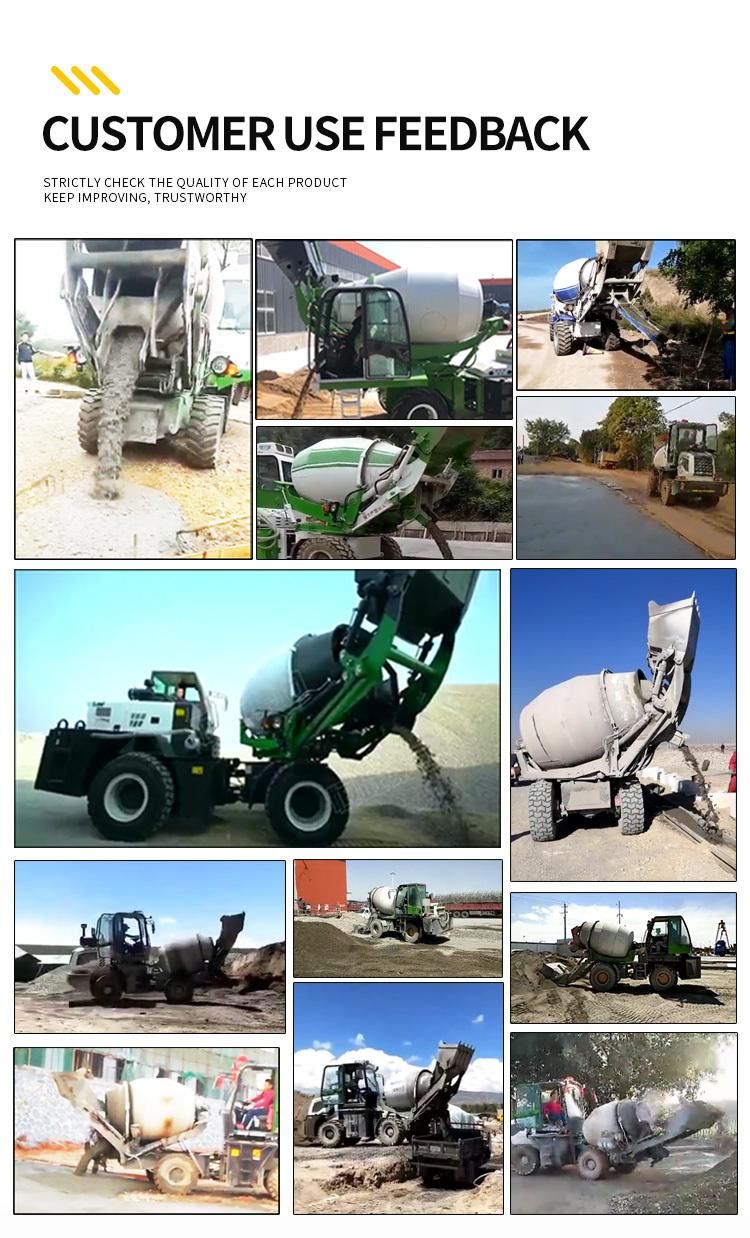

Construction Site
Company Profile

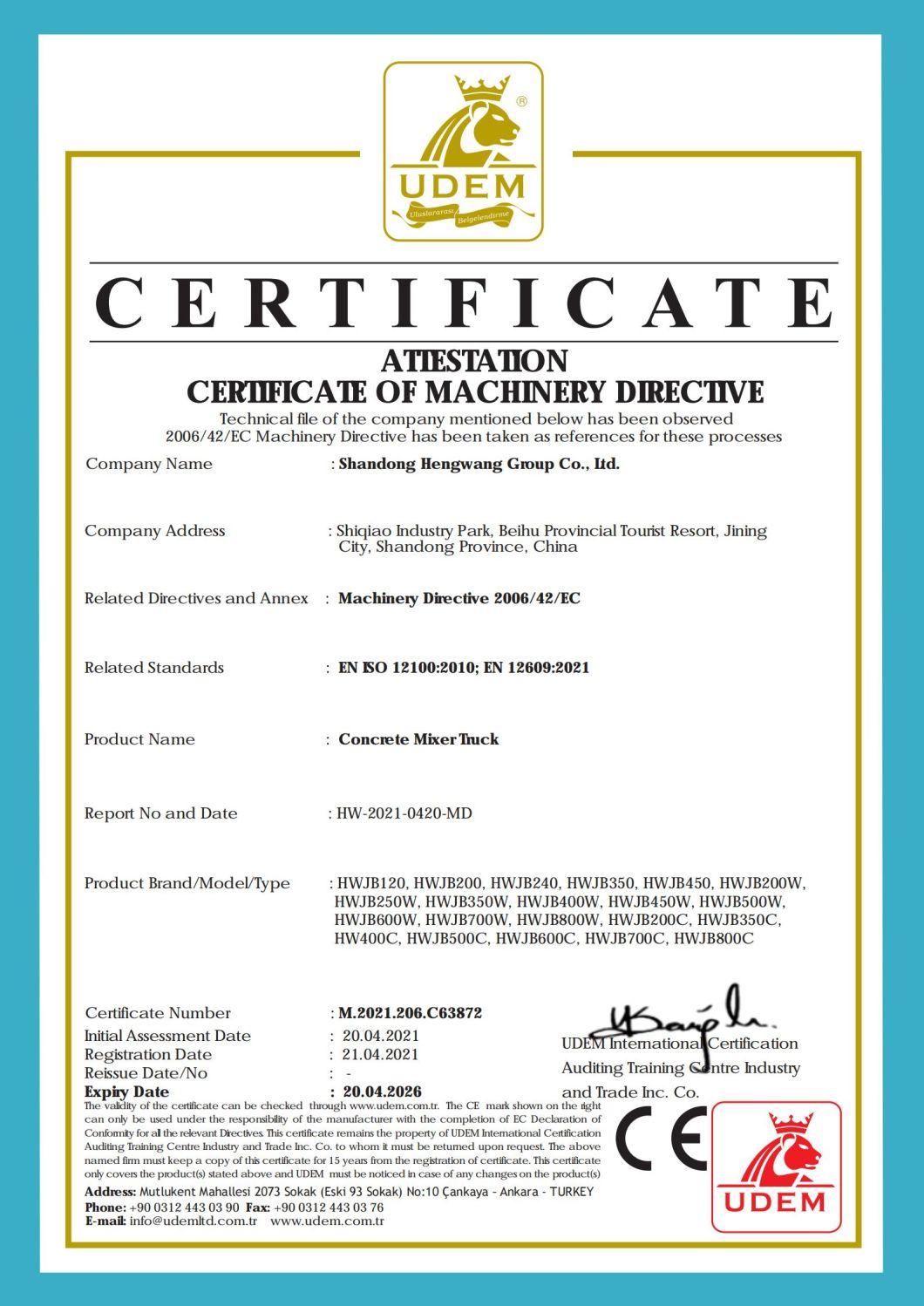

Certifications
