• Model NO.：STSJ-5A
• Color：White
• Work：Electric and Digital Display
• Specimen：Soil
• Loading：Optional Speed
• Special：for Four Specimens
• Area of Soil Sample：30cm2
• Weight：400kg
• Lever Ratio：1:12
• Vertical Loading：50,100,200,300,400(Kpa)
• Max. Horizontal Loading：1.2kn
• Product Name：Tetragenous Direct Shear Soil Laboratory Equipmen
• Transport Package：Standard Wooden Packing
• Specification：1.5cbm
• Trademark：YF
• Origin：China
• HS Code：9031809090
• Production Capacity：5000pieces,Year

Basic Info.

Model NO. STSJ-5A Color White Work Electric and Digital Display Specimen Soil Loading Optional Speed Special for Four Specimens Area of Soil Sample 30cm2 Weight 400kg Lever Ratio 1:12 Vertical Loading 50,100,200,300,400(Kpa) Max. Horizontal Loading 1.2kn Product Name Tetragenous Direct Shear Soil Laboratory Equipmen Transport Package Standard Wooden Packing Specification 1.5cbm Trademark YF Origin China HS Code 9031809090 Production Capacity 5000pieces/Year

Product Description

Product Description:

STSTJ-5A Tetragenous Direct Shear Soil Laboratory Equipment

Application: This apparatus is used to test resisting shear strength of soil specimen. It
usually adopts four specimens under the different vertical pressure exerted on the specimens to obtain shear stress when the specimen is destroyed.

Specification:

Area of soil sample	30cm square
Lever ratio	1:12
Vertical Loading	50,100,200,300,400(Kpa)
Max.Horizontal loading	1.2KN
Shear rate	0.01-25mm/min
Specimens in the same test	4 specimens
Working voltage	AC220V
Measurement	1160x900x1160mm(main frame),500x500x1020 (controller)

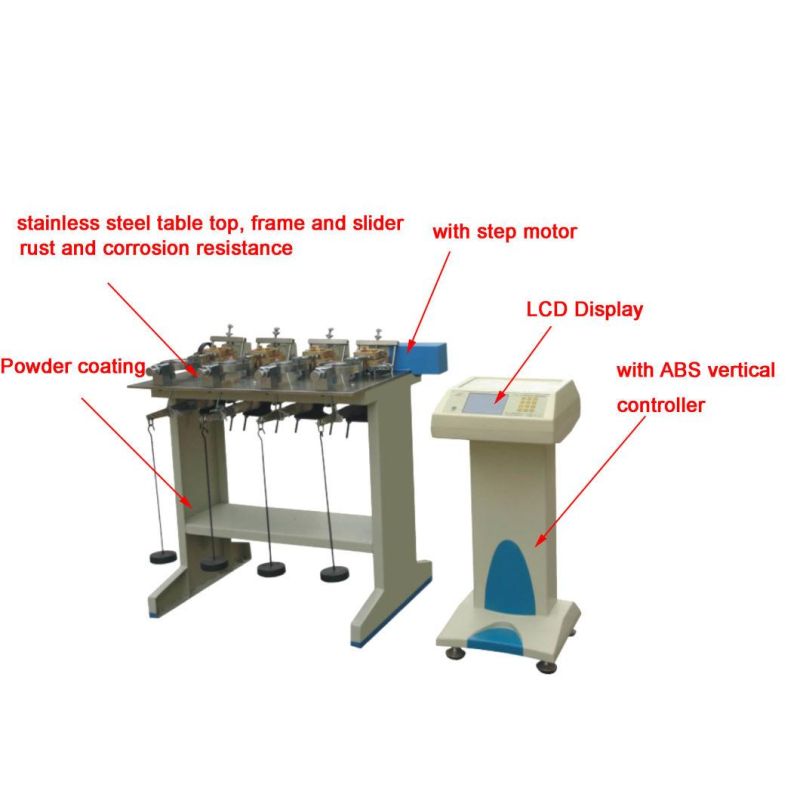

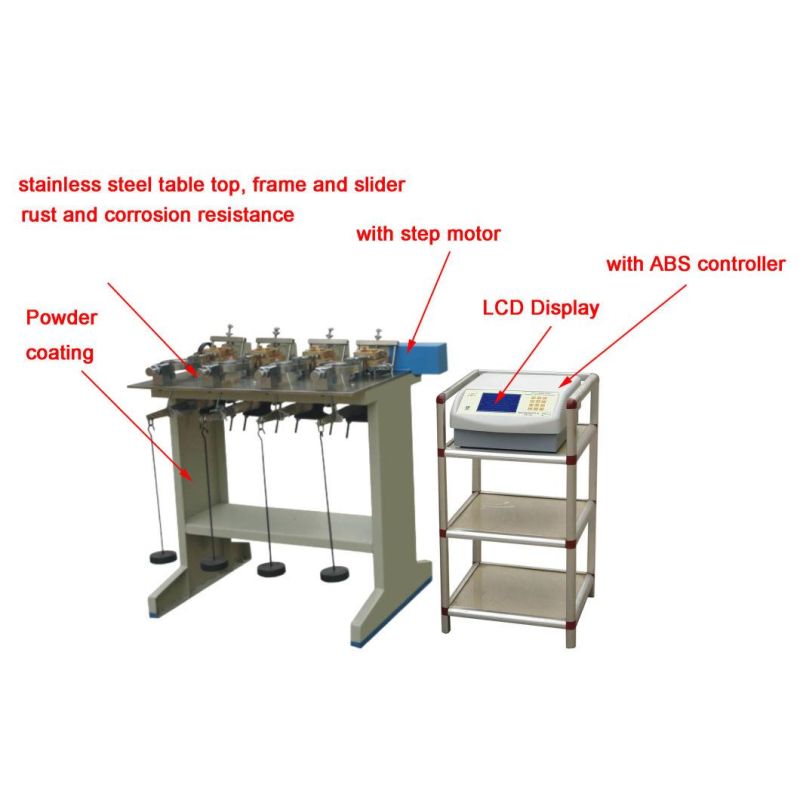

Features: Stainless steel working table, stepping
motor as pushing mechanism, high precision, low
noise, MCU control, variable speed displayed by
the controller, easy to operate, ABS vertical type
controller, LCD display.


Why choose us:
a.Full range products, offer you one-stop purchase, save your time, save your delivery cost.




b. Good quality control


c.Competitive price, save your money.

d. We are factory

FAQ:
1.Are you factory?
    Yes,we are factory ,35years focusing on test instruments field.
2.Delivery Time?
    10-15working days after receiving full payment.
3.What 's your payment terms?
     We accejpt T/T,L/C or Western Union.
4.What's your terms of trade?
     We accept EXW, FOB, CNF, CIF, AND SO ON.
5.Warranty?
     12months.
6.Do you have any exhibitions?
    Yes. We have many exhibitions in domestic and abroad. If you come to china, pls contact           with us, we will inform you the newest  booth No.
7.Our products need to be tested by a special testing machine, do you accept customized?
    Sure. We accept all chanllges.

Send us an inquiry and we will contact you soon!
If you want to know more,pls view our official website:cnzjtg.en.made-in-china.com
