Ce Certification Best Cheap New Hydraulic Crawler Mini Digger Micro Small Excavator with Parts Prices for Sale
JINING OKING TEC CO., LTD.- Type:Crawler Excavator
- Usage:Special Excavator, Marine Excavator, Mining Excavator
- Bucket:Backhoe
- Transmission:Hydraulic Transmission
- Drive Type:Internal Combustion Drive
- Bucket Capacity:0.1~0.5m³
Base Info
- Model NO.:OK-1t
- Size:Small-Scale
- Certification:CE, ISO9001: 2000
- Condition:New
- Transport Package:Plywood,Wooden Case
- Specification:3.14*1.05*1.58
- Trademark:OUKE
- Origin:Shandong, China
- HS Code:8429521200
- Production Capacity:100piece,Month
Description
Basic Info.
Model NO. OK-1t Size Small-Scale Certification CE, ISO9001: 2000 Condition New Transport Package Plywood/Wooden Case Specification 3.14*1.05*1.58 Trademark OUKE Origin Shandong, China HS Code 8429521200 Production Capacity 100piece/MonthProduct Description
Ce/ISO Certification 0.8 to 3.5 Ton New Diesel Hydraulic Crawler Mini ExcavatorThis mini excavator has the advantages of flexible and practical, high configuration, high performance, low oil consumption, beautiful appearance and wide application.Suitable for vegetable greenhouses loose, landscaping of municipal departments, orchard nursery tree digging, concrete pavement broken, sand and stone material mixing and small space construction operations,reducing maintenance and operating costs, improving the degree of mechanization.
Model | Unit | OKW-06 | OKWJ-08B | OKWJ-10 | OKW13 | OKWJ-15 |
Operating Weight | kg | 680 | 800 | 1000 | 1300 | 1500 |
Bucket capacity | m3 | 0.02 | 0.02 | 0.025 | 0.02 | 0.025 |
Bucket size | cm | 30 | 30 | 40 | 38 | 40 |
Engine | / | KOOP 192F | CC192F | CC192F | EV80 /CF13 | LL380 /Yanmar 3TNV70 |
Power | kw | 8.6Kw/2200rpm | 8.6Kw/2200 rpm | 8.6Kw/2200 rpm | 14 Kw/ 2200 rpm | 13.4 Kw/2200rpm |
Rotary speed | rpm | 12 | 12 | 12 | 12 | 12 |
Walking speed | km/h | 2 | 2 | 2 | 2 | 2 |
Grade ability | ° | 30 | 30 | 30 | 30 | 30 |
Crawler width | cm | 15 | 15 | 18 | 18 | 18 |
Crawler length | mm | 1140 | 1140 | 1200 | 1090 | 1250 |
Max. Digging Radius | mm | 2460 | 2400 | 2400 | 2400 | 2450 |
Max. Digging Depth | mm | 1220 | 1200 | 1200 | 1400 | 1320 |
Max. Digging Height | mm | 2400 | 2400 | 2400 | 2490 | 2400 |
Max unloading height | mm | 1650 | 1750 | 1750 | 1750 | 1800 |
Model | Unit | OKWJ-16A | OKWJ-17 | OKWJ-18S | OKWJ-18 Tank chassis | OKWJ-25 |
Operating Weight | kg | 1600 | 1700 | 2000 | 2000 | 2500 |
Bucket capacity | m3 | 0.025 | 0.025 | 0.15 | 0.15 | 0.08 |
Bucket size | cm | 40 | 40 | 45 | 45 | 50 |
Engine | / | LL380/Yanmar 3TNV70 | LL380/Yanmar 3TNV70 | LL385 | LL385 | CC390/Yanmar 3TNV76 |
Power | kw | 13.4 Kw/2200rpm | 13.4 Kw/2200rpm | 22.1Kw/ 2350rpm | 22.1Kw/ 2350rpm | 18.1 Kw/ 2350 rpm |
Rotary speed | rpm | 12 | 12 | 10 | 10 | 12 |
Walking speed | km/h | 2 | 2 | 2.8 | 2.8 | 2 |
Grade ability | ° | 30 | 30 | 30 | 30 | 30 |
Crawler width | cm | 20 | 23 | 28 | 28 | 23 |
Crawler length | mm | 1250 | 1300 | 1880 | 1880 | 1620 |
Max. Digging Radius | mm | 2550 | 2600 | 3850 | 3850 | 2730 |
Max. Digging Depth | mm | 1500 | 1600 | 2200 | 2200 | 1600 |
Max. Digging Height | mm | 2450 | 2450 | 3300 | 3300 | 3300 |
Max unloading height | mm | 1900 | 1950 | 2400 | 2400 | 1950 |
Model | Unit | OKW18 | OKW20 | OKW26 | OKW30 | OKW35 |
Operating Weight | kg | 1900-2000 | 1900-2000 | 2300 | 2800 | 3500-3600 |
Bucket capacity | m3 | 0.1 | 0.1 | 0.1 | 0.1 | 0.26 |
Bucket size | cm | 48 | 48 | 48 | 50 | 60 |
Engine | / | LL380/3TE25 | LL380/3TE25 | LL385/ 3TE30 | ZN390/Yanmar 3TNV88 | ZN490/C490/Yanmar |
Power | kw | 18.4 Kw/ 2350 rpm | 18.4 Kw/ 2350 rpm | 22.1 Kw/ 2350 rpm | 22Kw/ 2200 rpm | 36.8Kw/ 2200 rpm |
Rotary speed | rpm | 12 | 12 | 12 | 12 | 9-11 |
Walking speed | km/h | 2 | 2 | 2.7 | 2.6 | 2.7/ 4.6 |
Grade ability | ° | 30 | 30 | 30 | 30 | 35 |
Crawler width | cm | 230 | 230 | 230 | 250 | 300 |
Crawler length | mm | 1850 | 1850 | 1850 | 2300 | 2175 |
Max. Digging Radius | mm | 3600 | 3600 | 3690 | 4040 | 4730 |
Max. Digging Depth | mm | 2000 | 2000 | 2630 | 2500 | 2545 |
Max. Digging Height | mm | 3720 | 3720 | 3820 | 3900 | 4450 |
Max unloading height | mm | 2000 | 2000 | 2320 | 2600 | 3050 |
Model | Unit | 16EV80 | 18J | 18Z | 20STelescopic crawler |
Vehicle weight | kg | 1340 | 1340 | 1600 | 1850 |
Bucket capacity | m3 | 0.025 | 0.025 | 0.045 | 0.07 |
Bucket width | cm | 40 | 40 | 40 | 40 |
Engine | / | EV80 | Yanmar 3TNV70 | Yanmar 3TNV70 | Yanmar 3TNV70 |
Power | kw | 14 Kw/ 2200 rpm | 10.3Kw/ 2200 rpm | 10.3Kw/ 2200 rpm | 10.3Kw/ 2200 rpm |
Rotary speed | rpm | 12 | 12 | 12 | 12 |
Walking speed | km/h | 2 | 2 | 1.5/3 | 2.7 |
Grade ability | ° | 30 | 30 | 30 | 30 |
Crawler width | cm | 18 | 18 | 23 | 25 |
Crawler length | mm | 1090 | 1090 | 1250 | |
Max. Digging Radius | mm | 2400 | 2400 | 3470 | 3600 |
Max. Digging Depth | mm | 1400 | 1400 | 1500 | 2320 |
Max. Digging Height | mm | 2490 | 2490 | 3275 | 3720 |
Max unloading height | mm | 1750 | 1750 | 1900 | 2260 |

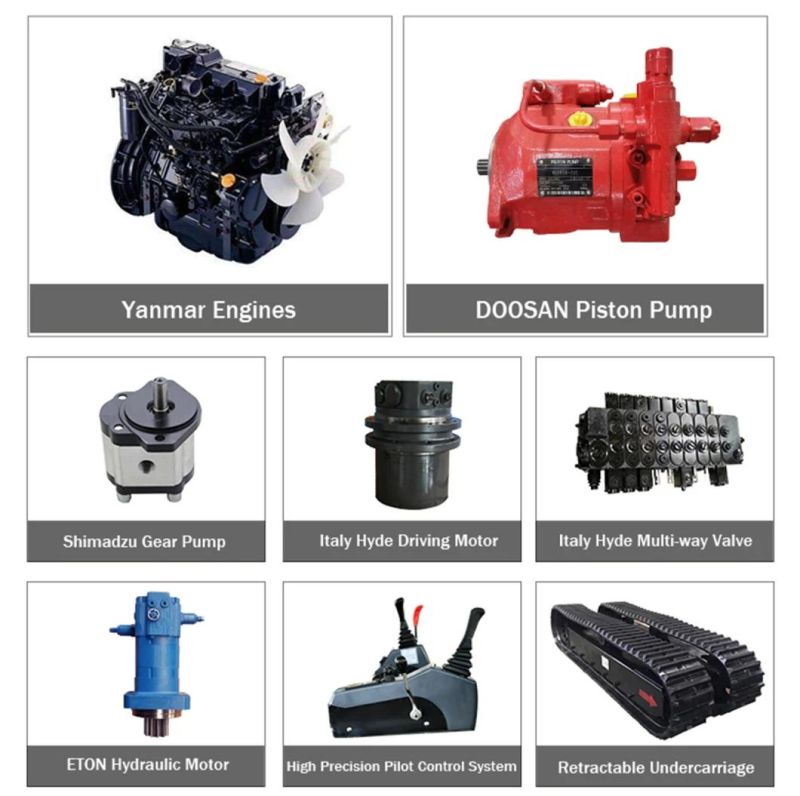

1. Optional Yanmar (EPA certified) / Changchai / Laidong engines, to meet environmental protection, cost control and other needs.
2. It adopts the first-line brand high-precision 8-way multi-way valve. The valve core has its own buffer function and is controlled by ECU computer, which makes the action more flexible.
3. 1.3 tons, 1.5 tons, 1.6 tons, 1.8 tons, 2 tons, 3 tons can be equipped with high precision pilot control system.
4. Adopting Japan NACHI / American ETON hydraulic motor, small size, light weight, high efficiency and long service life.
5. Use Shimadzu gear pump / DOOSAN load sensitive variable displacement piston pump for continuous operation for up to 8 hours.
6. The boom can swing from side to side with high flexibility to meet the needs of small space operations.
7. Optional with tail or no-tail to meet the construction needs under different conditions.
8. Strengthen the engineering rubber track, built-in steel core, wear-resistant and durable.
9. Made of German Continental brand tubing, made of natural rubber. The interior uses dense steel wire to increase the service life.
