1t Mini Excavator Excavator Machines Hydraulic Mini Garden Excavator
JINING OKING TEC CO., LTD.- Type：Crawler Excavator
- Usage：Special Excavator, Marine Excavator, Mining Excavator, GM Excavator, Garden Excavator
- Bucket：Grab Shovel
- Transmission：Hydraulic Transmission
- Drive Type：Internal Combustion Drive
- Bucket Capacity：0.1~0.5m³
Base Info
- Model NO.：OK-1t
- Size：Small-Scale
- Certification：CE, ISO9001: 2000, SGS
- Condition：New
- Micro：Excavator,Digger
- Transport Package：Wooden Case,Plywood
- Specification：1t,1000kg
- Trademark：OUKE
- Origin：Shandong, China
- HS Code：8429521200
- Production Capacity：100 Per Month
Description
Model
OK- 0.8 T
OK- 1 T
OK- 1.8 T
OK- 2.2 T
Digging bucket capacity
0.02 CBM
0.02 CBM
0.06 CBM
0.08 CBM
Dimension
2770*950*1500 mm
2770*950*1500 mm
3635*1050*2320 mm
4082*1200*2128 mm
Weight
800 kg
1000 KG
1800 KG
2000 KG
Power
8.6 KW
16 KW
18 KW
18 KW
Engine
Diesel engine -Single cylinder
Diesel engine -double cylinder
Changcai ZN390Q
Wheel base
770 mm
770 mm
1150mm
1150 mm
Length of track
1230 mm
1090mm
1632mm
1250 mmm
Width of track
180 mm
180mm
230mm
230mm
Plateform ground cleanrance
380 mm
380 mm
460 mm
460 mm
Max. Digging height
2490 mm
2490 mm
3200 mm
3714 mm
Max. Dumping height
1850
1850 mm
2385 mm
2488 mm
Max. Digging radius
2400 mm
2400 mm
3860 mm
4023 mm
Max. Digging depth
1400 mm
1400 mm
2150 mm
2150 mm
Max. Vertical digging depth
1320 mm
1320 mm
1950 mm
Min. Rotation radius
1190 mm
1190 mm
1125 mm
Tail turning radius
733 mm
733 mm
1125 mm
Max. Upgrade height of bulldozer blade
325 mm
325 mm
330 mm
Max. Digging depth of bulldozer blade
175 mm
175 mm
235 mm
Max. Travel speed
1.5km/h
1.5km/h
2 km/h
2 km/h
Working pressure
10MPa
10MPa
18MPa
18MPa
Product advantage:

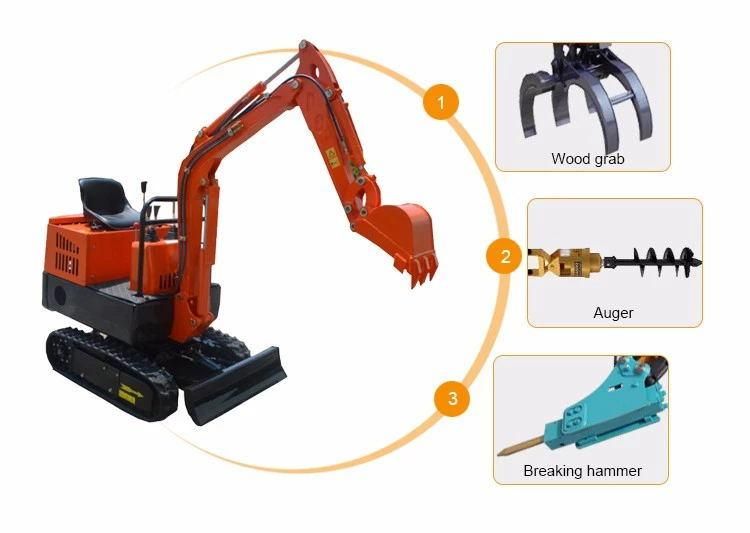

With the use of rotary drilling, broken hammer, loading bucket, gripping and other tools, machine utilization greatly improved
Related products

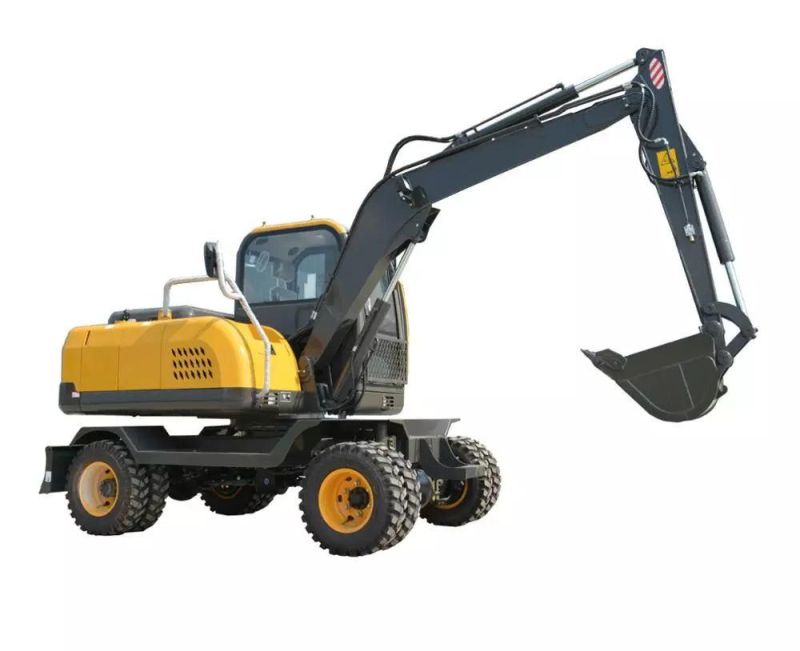

Wheel excavator ---7.5 T and 8.5 Ton

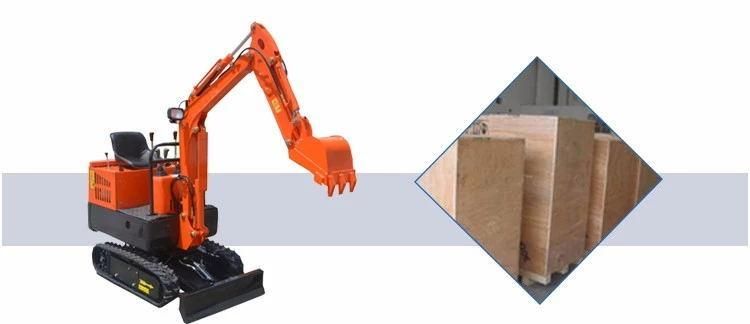

Our Packing :
