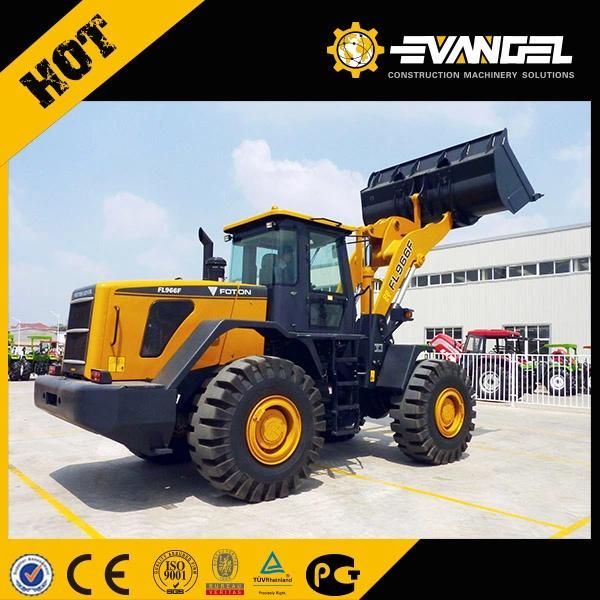

Foton Lovol Front End Wheel Loader 6ton FL966F
Evangel Industrial (Shanghai) Co., Ltd.- Certification：TUV, UL, ISO, CE, ISO9001: 2000
- Condition：New
- Transmission：Power Transmission
- Walking Mode：Wheeled
- Type：Medium-sized Loader
- Usage：Universal Type
Base Info
- Model NO.：FL966F
- Scraper Type：Pull Scraper
- Load and Unload Method：Front Discharge
- Transport Package：Nude Package
- Specification：CE, ISO, GHOST
- Trademark：FOTON LOVOL
- Origin：Shandong, China
- HS Code：84295100
- Production Capacity：5000sets, Month
Description
Basic Info.
Model NO. FL966F Scraper Type Pull Scraper Load and Unload Method Front Discharge Transport Package Nude Package Specification CE, ISO, GHOST Trademark FOTON LOVOL Origin Shandong, China HS Code 84295100 Production Capacity 5000sets/ MonthProduct Description
2016 Hot Sale FOTON 6ton wheel loader FL966F 3.5m3 CheaperSpecifications
FOTON FL966F 6ton wheel loader
1. Shang chai engine SC11CB240.1G2B1 175KW
2. Bucket capacity 3.5cbm
3. Operating weight 19600kg
FOTON FL966F 6ton wheel loader
Parameter Items | Parameter Value |
1.Main parameter | |
Rated load (kg) | 6000 |
Operating Weight (standard) (kg) | 20000 |
Rated Bucket Capacity (m3) | 3.5 |
Maximum breakout force (KN) | ≥200 |
Maximum traction force (KN) | ≥165 |
Total hydraulic cycle time (s) | ≤10.5 |
Maximum dump height (mm) | 3110 |
Maximum dump distance (mm) | 1310 |
Forward speed range (Km / h) | 0 ~ 37 |
Reverse speed range (Km / h) | 0 ~ 23.5 |
Transport dimensions (L × W × H) (mm) | ( 8540±50 ) ×3030×(3460±50) |
Maximum steering angle (°) | 38 |
Maximum Grade ability(°) | 29 |
Minimum turning radius (mm) | 7040 |
Tire Size | 23.5-25 |
2.Engine parameter | |
Model | Weichai WD10G240E21/Shangchai SC11CB240.1G2B1 |
Type | 6-cylinder, in-line, direct injection and turbocharged |
Power (kw) | 175 |
Maximum torque (N.m) | 920/912 |
Cylinder diameter (mm) | 126/121 |
Stroke (mm) | 130/152 |
Displacement (L) | 9.726/10.45 |
Fuel consumption ( kw.h) | 240 |
3.Hydraulic system | |
Work system pressure (Mpa) | 18 |
4.Braking System | |
Running braking system type | Single line gas cap oil four-wheel caliper disc brake |
Parking / emergency brake system type | Flexible shaft manual type |
5.Oil Tank Capacity | |
Fuel tank (L) | 320 |
Hydraulic tank capacity (L) | 250 |
