• Certification：CE
• Condition：New
• Rated Power：22.1kw
• Crawler：Rubber
• Width of Body：1200 mm
• Transport Package：Nude Packing or Wooden Box
• Trademark：HIXEN
• Origin：China
• HS Code：8429590000
• Production Capacity：200set,Moths

Basic Info.

Certification CE Condition New Rated Power 22.1kw Crawler Rubber Width of Body 1200 mm Transport Package Nude Packing or Wooden Box Trademark HIXEN Origin China HS Code 8429590000 Production Capacity 200set/Moths

Product Description

   Reliable Quality 1.8 T-2.2 Ton Mini Small Micro Small-Scale Earth Moving Hole Digging Machine Rubber Crawler Excavator Diggers  farm  Garden machinery

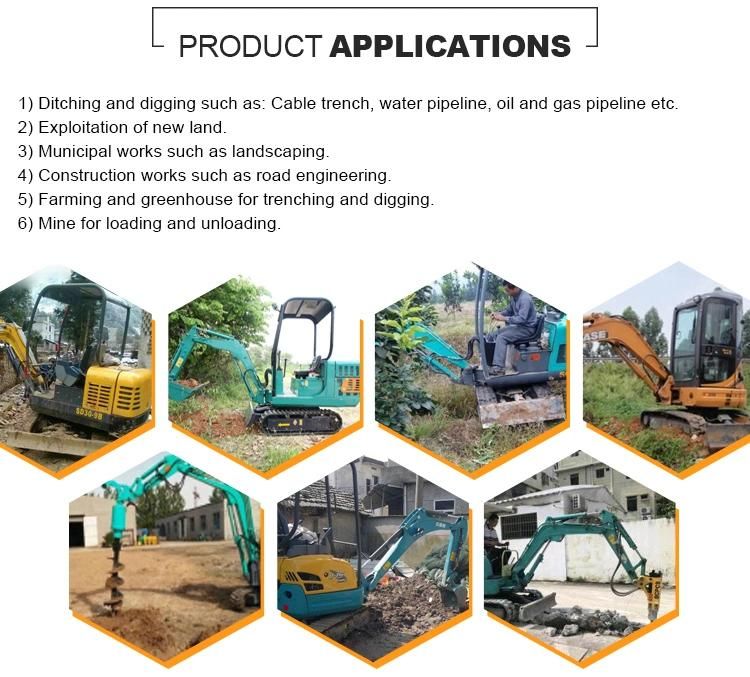

HIXEN   mini excavator is designed for small projects which widely used in construction area, agriculture, municipal works, vegetable  greenhouse and trench digging etc. 0.8Ton, 1.0Ton, 1.6Ton, 1.8Ton, 2.0Ton, 2.2Ton, 2.5Ton, 3Ton, 3.5Ton are all available.















Shandong Hixen Machinery Co., Ltd, is a reputed manufacturer and exporter of construction machines, farm machines and mine machines with large years' experience.Located in the capital city Jinan of Shandong province, the company has developed into a comprehensive machinery group.
The products mainly include:Wheel loader, excavator, backhoe loader, skid steer loader, forklift, self-loading concrete mixer and mucking loader etc.Which are widely used in construction, farming, mining and all the related machinery areas.Besides domestic market, the products have also been supplied to numerous places all over the world which has earned large reputation and enjoyed great population.

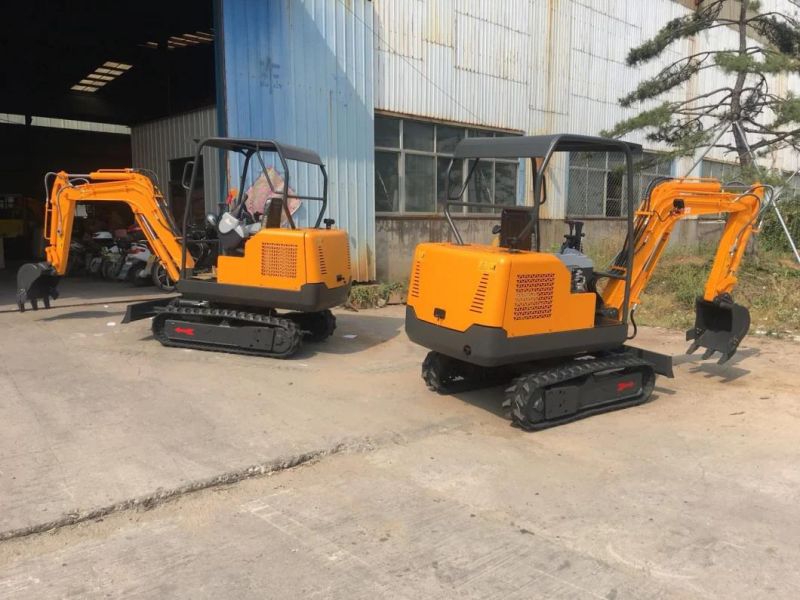

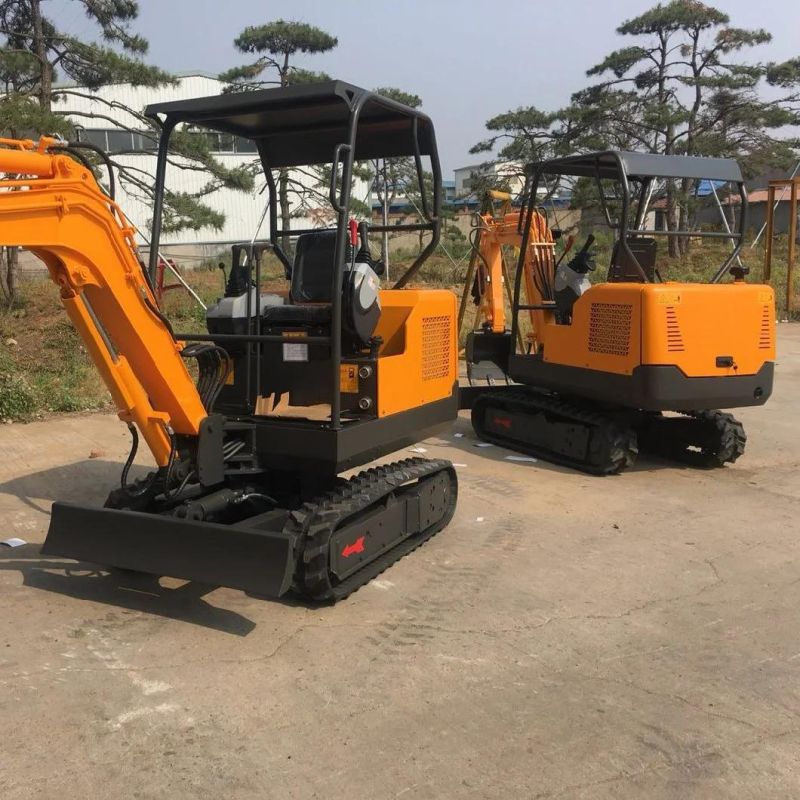

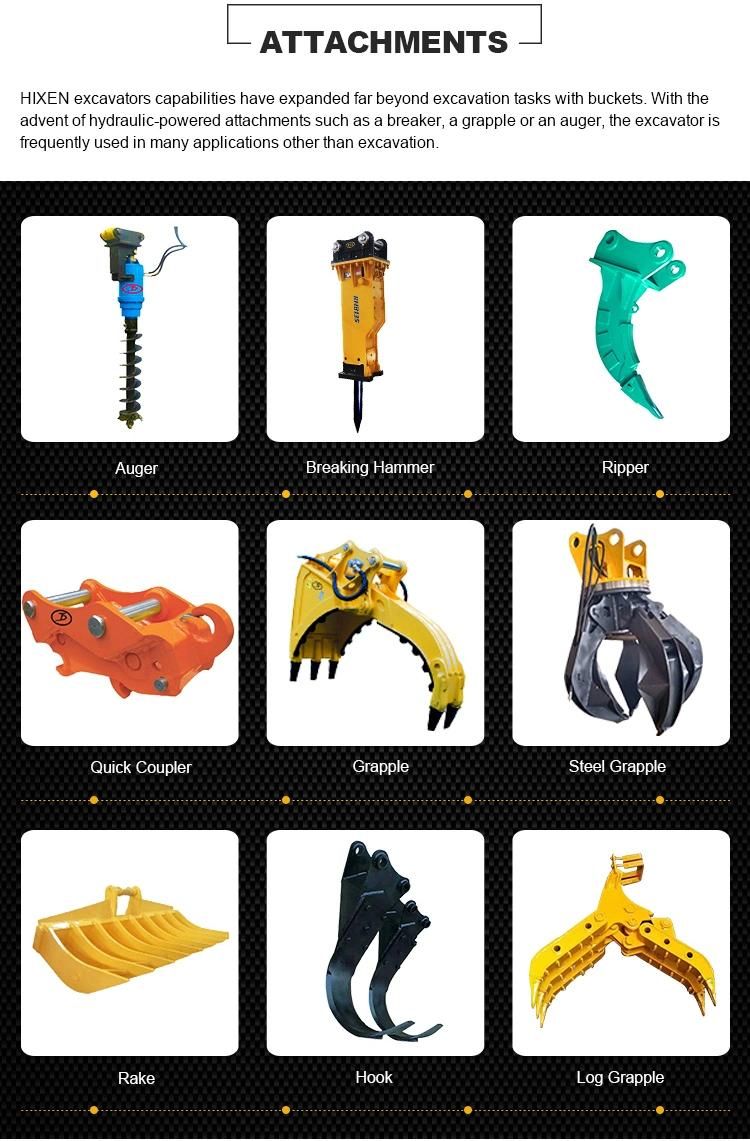

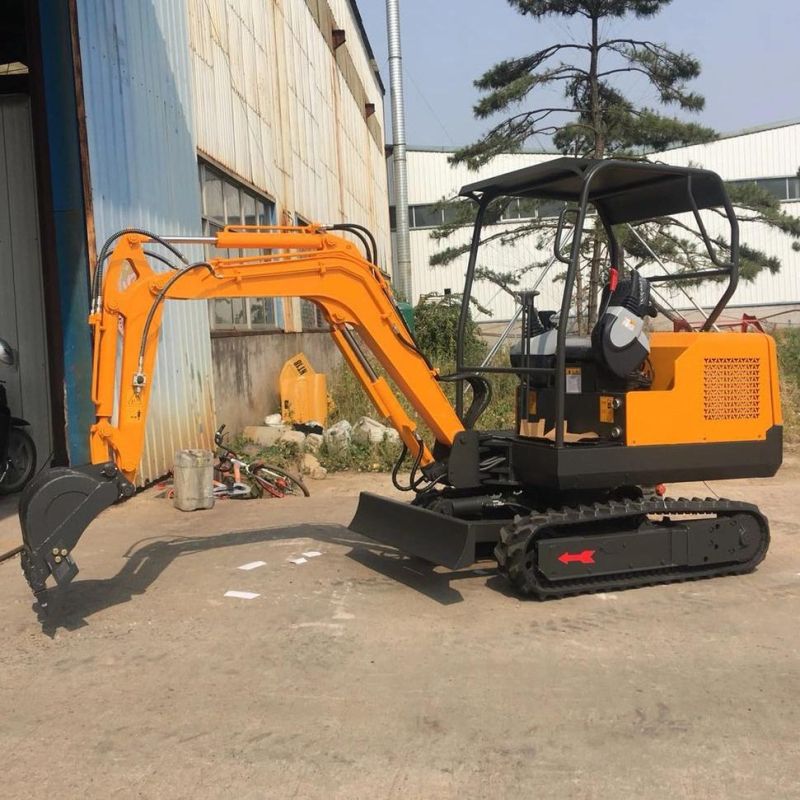

Hixen mini excavator is designed for small works, small projects, in garden, farmland, municipal works, vegetable greenhouse, digging trench etc. It is with compact design, easy to maintain. Lots of attachments can be used on this excavator which can expand their application scope.

Main parameters

Model	HX16	HX18	HX20	HX22	HX25
Machine weight	1550 Kg	1800 Kg	1900 Kg	2050 KG	2300 KG
Bucket capacity	0.05m³	0.06m³	0.08 m³	0.1m³	0.1m³
Engine power	18.1KW	22.1KW	22.1KW	22.1KW	22.1KW
Engine rated speed	2200r/min	2200r/min	2200r/min	2200r/min	2200r/min
Climbing gradient	30°	30°	30°	30°	30°
Walking speed	2Km/h	2.7 Km/h	2.7Km/h	2.7Km/h	2.7 Km/h
Total length	2710 mm	3300 mm	3400 mm	3500 mm	3600 mm
Total width	1000 mm	1200 mm	1200 mm	1300 mm	1300 mm
Total height	2150 mm	2250 mm	2250 mm	2300 mm	2300 mm
Clearance to the ground	190 mm	260 mm	260 mm	260 mm	260 mm
Platform width	1000 mm	1060 mm	1200 mm	1200 mm	1200 mm
Maximum digging height	3150 mm	3240 mm	3300 mm	3400 mm	3400 mm
Maximum digging depth	1900 mm	2000 mm	2200 mm	2200 mm	2200 mm
Maximum digging radius	3700 mm	3920 mm	4200 mm	4500 mm	4500 mm
Minimum turning radius	2000 mm	2120 mm	2300 mm	2300 mm	2320 mm
Bulldozer maximum depth	120mm	140 mm	150 mm	150 mm	150 mm
Bulldozer maximum raising height	250 mm	260 mm	270 mm	270 mm	270 mm

Model	HT18	HT20
Machine weight	1800 KG	1950 Kg
Bucket capacity	0.05 CBM	0.06 CBM
Engine brand	Yanmar	Yanmar
Engine power	10.3 KW	10.3KW
Pump	Gear pump	Plunger pump
Climbing gradient	30°	30°
Walking speed	2.7 Km/h	3 Km/h
Total length	3000 mm	3200 mm
Total width	1200 mm	980-1300 mm
Total height	2300 mm	2300 mm
Platform turning radius	680 mm	700mm
Crawler length	1450 mm	1450 mm
Crawler width	230mm	230 mm
Maximum digging height	3500 mm	3600 mm
Maximum dumping height	2452 mm	2500 mm
Maximum digging depth	1800 mm	2000 mm
Maximum digging radius	4045 mm	4150 mm

FAQ
Q1.What is the delivery period?
After receiving the initial payment, the goods will be ready for delivery within 5 days.The rest time
depends on the distance and transport method which need to be negotiated.

Q2.What is the payment terms can you accept?
30% initial payment, 70% balance payment when the goods are ready for delivery by T/T.

Q3.How long is the product guarantee?
We provide one year quality guarantee.

Q4.What kind of service could you provide?
1) Pre-sale service:We could assist you finding the suitable equipment according to your requirement.
2) On-sale service:We strictly follow the commercial rules, contract signing, following the production
process, controlling the goods quality, tracking the goods delivery, guaranteeing you receive the qualified
goods safely.
3) After-sale service:We provide some consumables with the equipment;
We have operation manual for instructing the basic installation and operation;Video guidance for trouble
shooting;Engineers ready for field maintenance and repairing when necessary.

Q5.Can we have the special order like specification change, logo making?
Yes, we accept the customization.We can make it clear in the contract and then our technical start
design and production as per your requirement.

For more questions, please feel free to contact us.
We sincerely welcome all friends paying visits to us and reach a mutural success.
