• Model NO.：Zl50gn
• Rated Bucket Capacity：3cbm
• Transport Package：Container,Roro,Bulk
• Specification：8165*3016*3485mm
• Origin：China
• HS Code：8429510000
• Production Capacity：50unit,Month

Overview Product Description

Product Overview

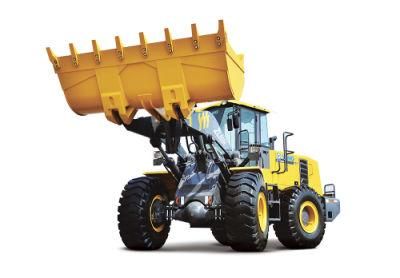

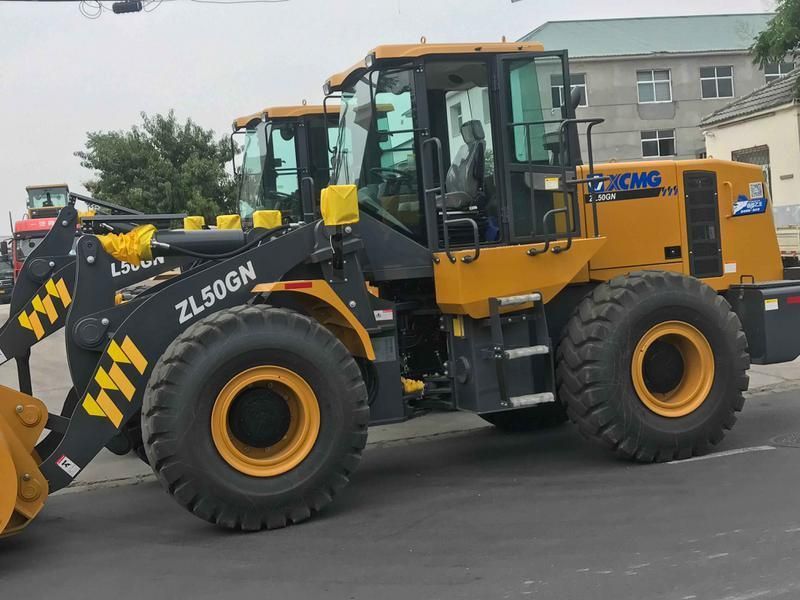

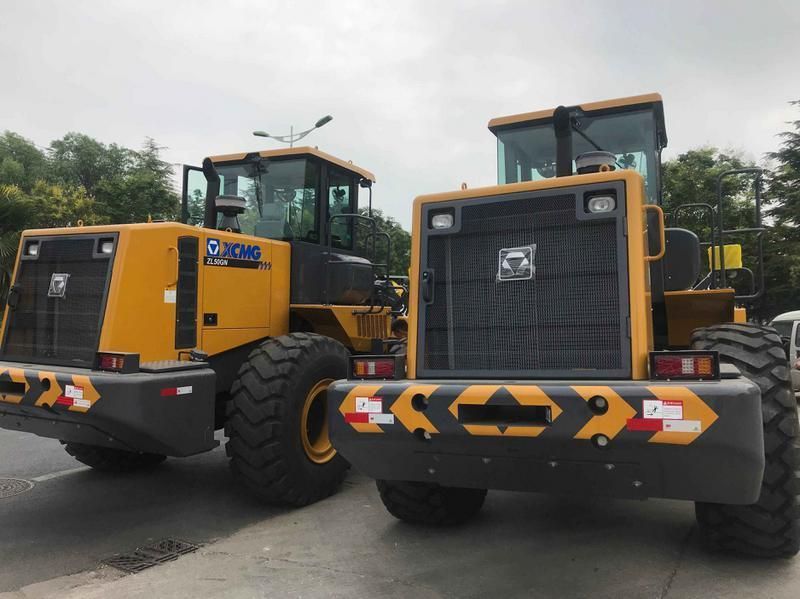

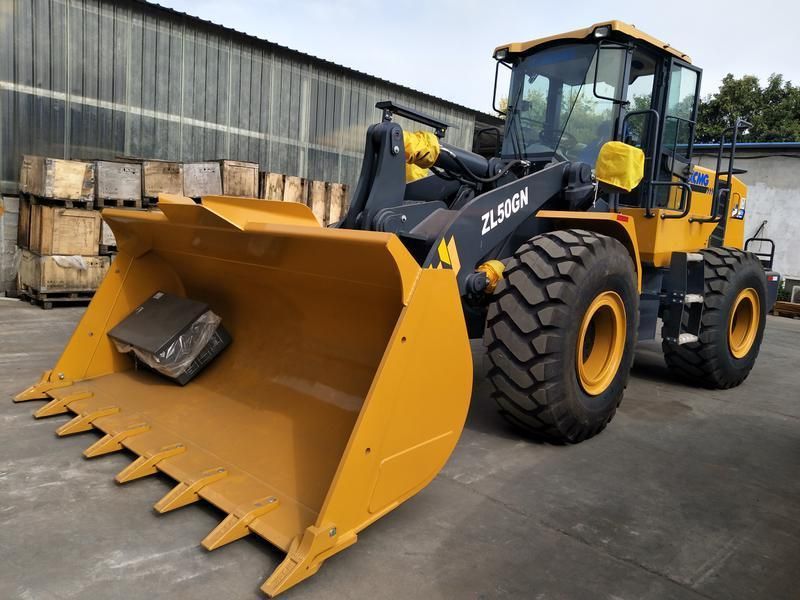

ZL50GN wheel loader is the latest cross-generation product developed by XC on the basis of the globalized technologic resources.

Focusing on the customer value and emphasizing the customer experiences, XC's new generation loader boasts outstanding advantages (such as efficiency) in the fields of engineering constructions, aggregate yards, and coal logistics.

Model Characteristics

XC's exclusive high torque and high efficiency drive chain features reasonable matching.

The front frame adopts the box structure with integrally cast lugs and the rear frame adopts the special-shaped box beams welded from variable stiffness bent plates, featuring high carrying capacity.

The hinged joints between front and rear frames adopt the structure of rolling bearings + knuckle bearings, featuring high carrying capacity and working stability.

With short wheelbase and small turning radius, this product features high mobility and flexibility and outstanding field adaptability.

The ergonomically design cab adopts integral skeleton structure, delicate interior trim parts, and sound insulation and noise reduction measure, featuring broad visual field,

super-large space, and high operation comfort.

The diversified configurations and complete attachments comprehensively adapt to the construction needs in different regions and under different working conditions.

Performance Highlights

The 160kN traction force and ≥3.5m high dumping capacity handle the severe conditions with ease.

≥7,500kg lifting capacity and 170kN breakout force handle all kinds of materials with ease.

Product Parameters ltemParametersUnitRated load5000kgRated bucket capacity3m³Total weight17500kgDumping height(from ground to main blade plste)3090mmDumping distance(from the front wheel to main blade plate)1130mmMaximum breakout force170KNMax.tractive force165KNLifting time of swing arm≤6.5sTotal cycling time≤11sMinimum turning radius(outer edge of bucket)7300mmMinimum turning radius(tire center)6400mmArticulated angle35°Gradeability30°tire size23.5-25 Overall demension of machine(L×W×H)8165×3016×3485mmEngine modelWD10G220E23 Rated power/rotate speed162/2000kW/r/minTravel speedGear I(F/R)0~11.5/0~16.5km/hGear II(F)0~38km/h Detailed Photos
