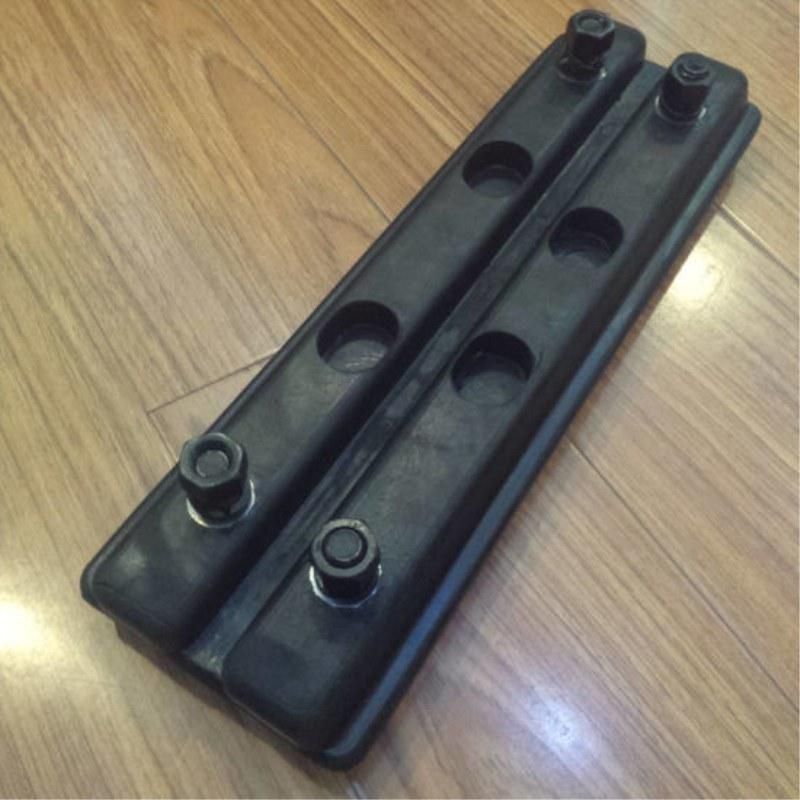

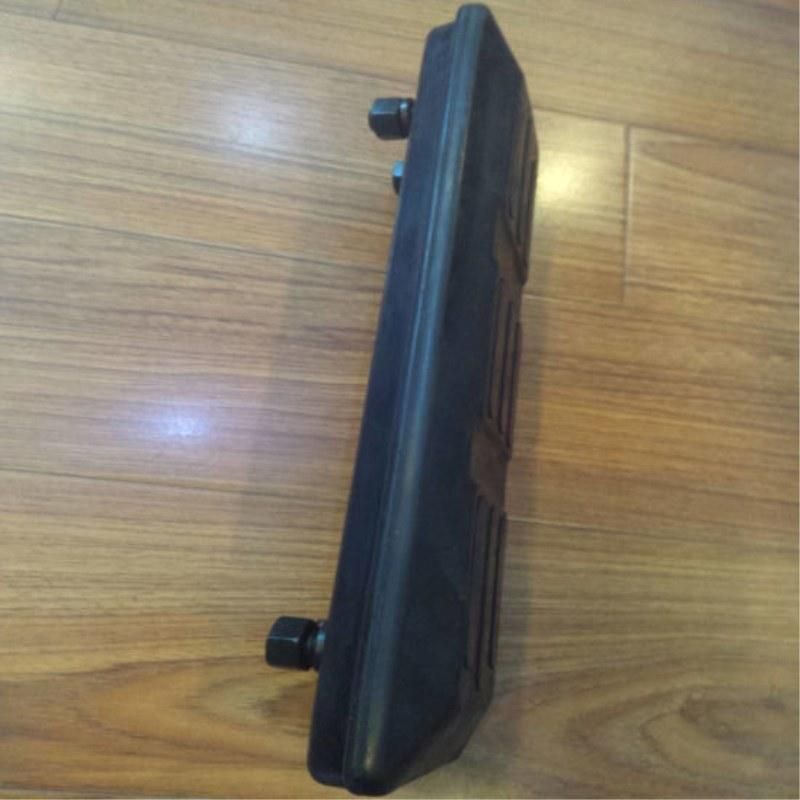

Rubber Pad 400mm Width 135mm Pitch Bolt on for Excavator

Shanghai Puyi Industrial Co., Ltd.
  • After-sales Service：Free Replacement
  • Warranty：Guarantee 12 Months Under Normal Use
  • Type：Bolt-on
  • Application：Excavator
  • Certification：ISO9001: 2000
  • Condition：New

Base Info

  • Model NO.：400B
  • Material：Rubber and Steel
  • Width：400mm
  • Pitch：135mm
  • Height：40mm
  • Color：Black
  • Transport Package：Standard Packing as Your Requests
  • Specification：400SW
  • Trademark：No Marks or As Buyer′s Requests
  • Origin：Shanghai
  • HS Code：8431499900
  • Production Capacity：5000PCS,Month

Description

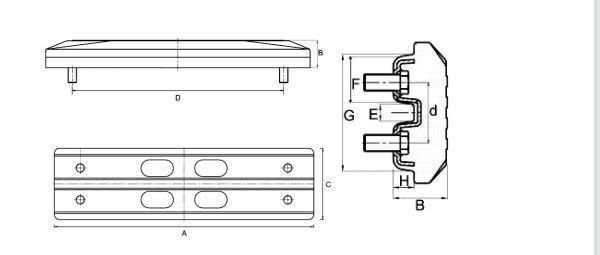

Bolt-onTypePitchABCBoltD*dEFGHWeight400B13540040106M12300*46933(32)9014(11)2.18
Rubber Pad 400mm Width 135mm Pitch Bolt on for ExcavatorRubber Pad 400mm Width 135mm Pitch Bolt on for ExcavatorRubber Pad 400mm Width 135mm Pitch Bolt on for ExcavatorRubber Pad 400mm Width 135mm Pitch Bolt on for Excavator
Application:

[Komatsu]
PC40(76)PC40MR-2( 78)PC45(76)PC50(76)PC50MR-2(78)PC58

[HITACHI]
EX40(76)EX45(76) EX50(76)EX55(76)EX58(78 )ZX40U(76)ZX50(76)
ZX55UR(76)

[SHIN CATERPILLAR MITSUBISHI]
MM40(76)MM45(76) MM55(76)304CR(76)305CR(76)

[KOBOTA]
K040(76)K045(76 )RX502(78)U40-1,-2 ,-3(78)U45(76)U50(78)

[YANMAR]
B50(74)B6U(76) Vio50(76)

[SUMITOMO]
SH40JX(76)SH4 ,4J,4UJ,4JX(76)SH50U(76)SH55U-2(76)SH55J(78)
SH65U-1,2(82)

[KOBELCO]
SK042(76)SK045(76) SK40SR(72)SK45SR(76) SK50UR(76) SK60

[Airman]
AX40(76)AX45(76) AX58MU(78)AX40U,50U(76)

[IHI]
40JX(76)45J,UJ( 76)50Z(78)

[KATO]
HD50UR(78)HD140(78) HD205UR(78 )

Bolt-on
TypePitchhDdBoltLWHWeight
230BA90151500M1223060310.800
230B101161500M1223070390.900
250B101162000M1225070390.925
300B101162000M1230070391.100
300BA101162000M1230070391.100
350B101162000M1235070391.230
350BA101162500M1235070391.230
350BD1351425046M12350106402.035
350BL1351429046M12350106401.900
350BR1351429046M12350106401.900
380B1351430046M12380106402.330
400B1351430046M12400106402.180
400BLR1351430046M12400106402.190
400BW1401830052M14400123654.000
400BH1401835052M14400123453.000
450BE1351435046M12450106402.450
450B1542035058M14450124493.500
450BLR1542035058M14450124493.500
500B1712040060M16500137574.580
500BA1752640057M16500126594.510
600B1902640069M20600136717.500
260BM 1819053M1226012050
260B 1820054M1426011248
260BK 1820057M1426012048
300BM 1822757M1230012050
300BK 1822057M1430013055
350BK1552527060M14350135604.000
400BK 2530060M1440013560
450BK 3135080M1445017076
200T 01600M142009030
305BP 0177.80M1630511432
355BP 0237.505/8"35513232
455BP 030503/4"45513232
300-2155182200M14300135502.400
300-41551822045M12300135502.400
320-2155182200M14320135502.700
320-41551822045M12320135502.700

Chain-on
TypePitchDdSBoltLWHWeight
300C13514411622M123009545
400C135946446M1240012552
400CA135997243.5M1240012552
400CK1351007343.5M1240012552
400CB1351048046M1240012552
400CD1351108046M1240012552
400CV1351067646M1240012552
400CK140808052M1240012552
400CW140868652M1240012552
450CN140838352M12450125526kg
450CW140868652M1245012552
450CA135997243.5M1245012552
450CB154909046.3M1445014655
450CD154909055M1445014655
450CS154737357M1445014655
450C154897357M14450146558kg
500CW1351048046M1250012552
500CB175102.486.457M1650016269
500C171 10810860.4M165001626912.3kg
500CS1711048858M1650016269
500CA190160.4124.462M2050017872
500CD190155.6119.669M2050017872
600C17110810860.4M1660016269
600CD190155.6 119.6 69M2060017872
600CA190160.4124.462M2060017872
600CB190160.4124.462M1860017872
30015588.988.957.1M12300186556kg
32015510488.955M1232018655

Features

  • Easy to fit and install in minutes!
  • Superior rubber compounds for long lasting durability
  • Attach directly to your existing grousers - or remove them and bolt to your drive chain!
  • Easy replacement of single units if one becomes damaged
  • Many types and sizes available to fit almost every machine on the market

Benefits

  • Quieter, smoother ride
  • Increase profitability by decreasing liabilities
  • Eliminate costly surface damage
  • Save Labour & Material costs by eliminating rubber matting / plywood for surface protection
  • Eliminate costly surface damage
  • Save Labour & Material costs by eliminating rubber matting / plywood for surface protection
  • Save Labour & Material costs by eliminating rubber matting / plywood for surface protection
  • Reduce Vibration - Increase under carriage life
  • Get a grip on Safety - Steel tracks slip on hard surfaces. Rubber bonds.
  • Best option for equipment 8 ton and up due to weight class.
  • Rubber pads allow owners to benefit from the securities of rubber while having the strength of the steel chain


Quality Control:

1.Ex works Inspection

2.Products Audits/Examination(Strict inspection according to customer's request)

3.Production Procedure Audit/Examination(Entire Procedure Control)

4.Raw material Inspection/Examination;Purchased Parts Inspection(Including All Purchased Material)

Rubber track warranty

All Pooyert rubber tracks and rubber pads are one year normal use warranty,If there is any quality problem,during the warranty period,we are responsible for the replacement of the new rubber track,just need to provide photos of the tracks as they sit on the machine and serial number on the tracks.

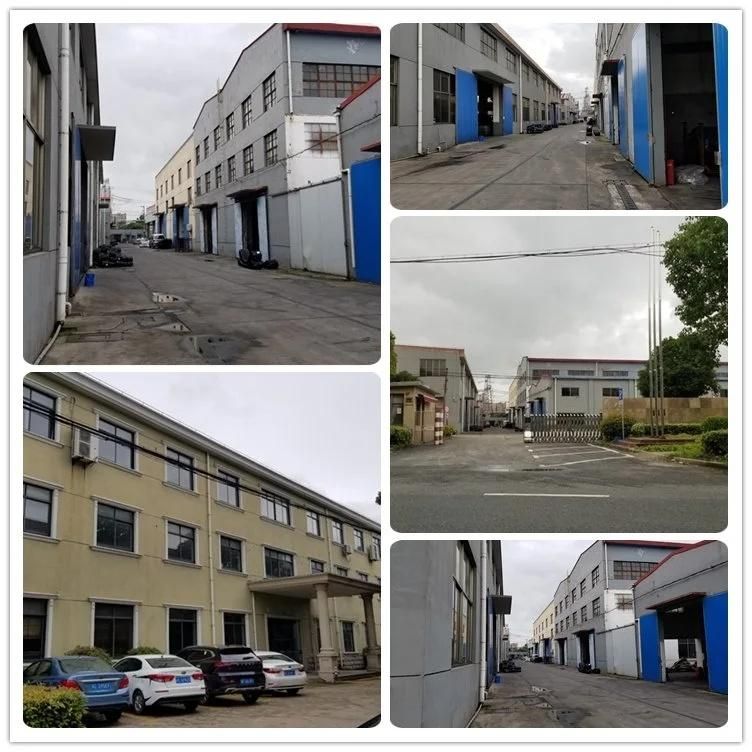

Company introduction:

Serving since 2000,POOYERT has been supplying the construction industry with premium grade replacement rubber track and rubber pads that can be widely applied in construction machinery,agricultural machinery and other specialized vehicles.

Made of all natural rubber and high quantity synthetic rubber compounds including carbon black,and continuous steel cords that are protected with thick vulcanized rubber,POOYERT leads the way in today's modem track manufacturing.POOYERT tracks are produces under strict quality guidelines and have ISO9001 Accredited Certification.
