Vibratory Floor Screed Vibrating Concrete Screed
Linyi Raytone Machinery Imp&Exp Co., Ltd.- Type:Concrete Vibrator
- Machining Process:Hydraulic
- Structure:Rotor Type
- Productivity:180m²,h
- Feeding Height:No
- Vibrating Amplitude:2.0mm
Base Info
- Model NO.:VS-25B
- Certification:ISO9001: 2000, CE
- Condition:New
- Color:as Required
- Drive System:Soft Shaft
- Working Width:2000mm
- Weight:25kg
- Power:1.2kw
- Dimension:2500*1400*960mm
- Engine:Air-Cooled,4-Cycle,Gasoline
- Max Output:1.2kw
- Max Speed:5200r.Pm
- Fuel Tank:0.65
- Gasoline Engine:Honda Gx35
- Transport Package:Plywood
- Specification:L2500 X W1400 X H960mm
- Trademark:Raytone Machinery
- Origin:Shandong, China(Mainland)
- HS Code:84306100
- Production Capacity:200 Set Per Month
Description
Basic Info.
Model NO. VS-25B Certification ISO9001: 2000, CE Condition New Color as Required Drive System Soft Shaft Working Width 2000mm Weight 25kg Power 1.2kw Dimension 2500*1400*960mm Engine Air-Cooled,4-Cycle,Gasoline Max Output 1.2kw Max Speed 5200r.Pm Fuel Tank 0.65 Gasoline Engine Honda Gx35 Transport Package Plywood Specification L2500 X W1400 X H960mm Trademark Raytone Machinery Origin Shandong, China(Mainland) HS Code 84306100 Production Capacity 200 Set Per MonthProduct Description
Vibrating Concrete ScreedProducts Introduction:
Small road machinery concrete screed machinery

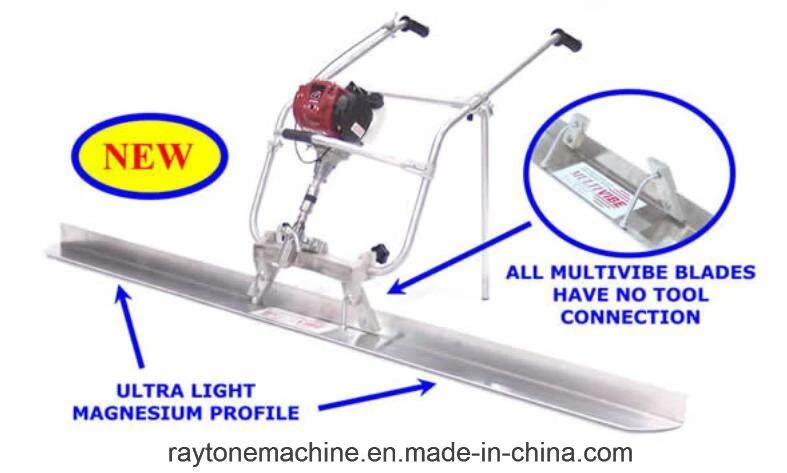

Aluminum alloy blade, durable Handle height adjustable, suitable for different heigt of the operatorBlade replacement is simple,floor length 1-6m can be customized
The vrbratory screed series could be easily operated and greatly increases work dfficiency for reducing air voids and enhancing concrete compaction. Widely used in standard factory, warehouse,parking lot ,plaza, frame-type building and so on.

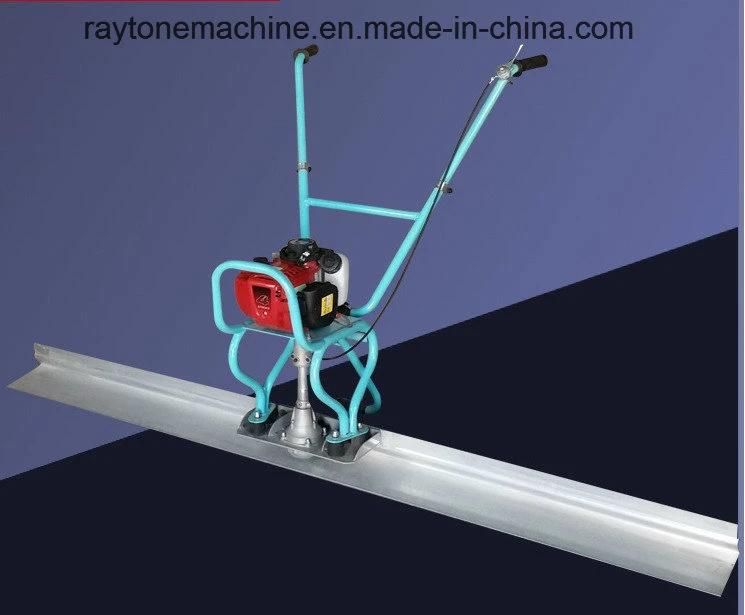

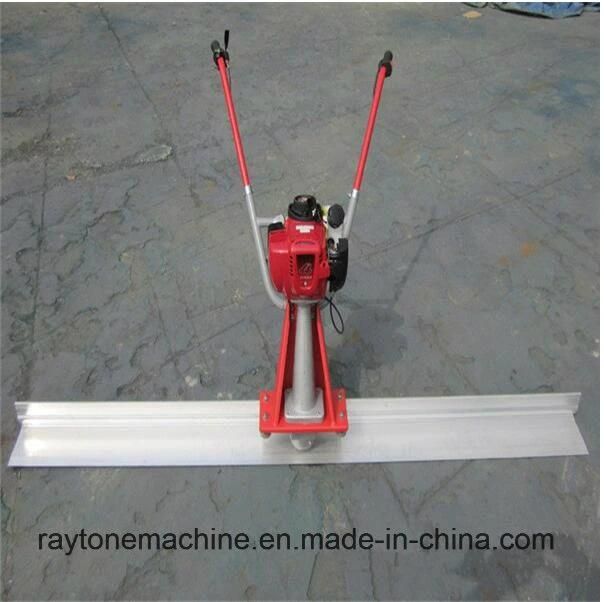

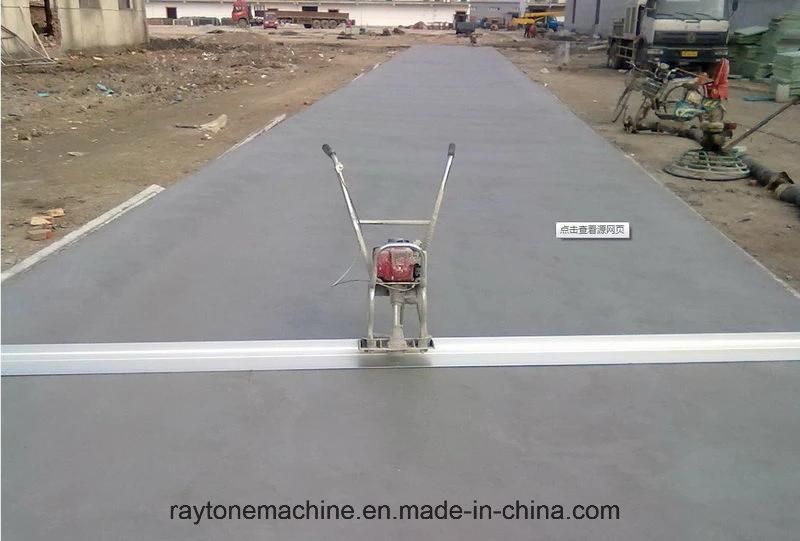

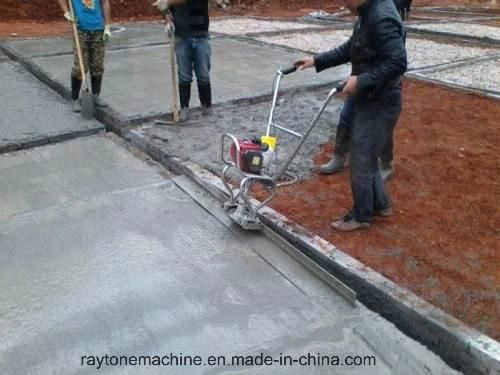

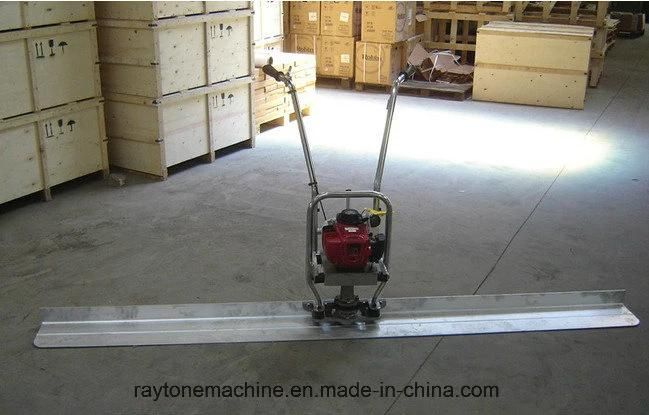

Detailed Pictures:
Main Technical Parameter:
Model | VS-25 |
Weight kg(lb) | 25(55) |
Dimension mm(in) | L2500(98) X W1400(55) X H960(38) |
Drive system | Flexible shaft |
Engine | Air-cooled, 4-cycle, Gasoline |
Type | Honda GX35 |
Max. output kw(hp) | 1.2 (1.6) |
Max. speed rpm | 5200 |
Fuel Tank liter (gal) | 0.65 (0.17) |
