• Model NO.：SD22
• Condition：New
• Color：Yellow
• Engine：Wp12,Qsnt-C235
• Center Distance of Track：2000mm
• Width of Track Shoes：560,610,660mm
• Fuel Tank：450L
• Digging Depth：540mm
• Transport Package：Nude Packing
• Specification：5495*3725*3402mm
• Trademark：SHANTUI
• Origin：China
• Production Capacity：50units,Month

Basic Info.

Model NO. SD22 Condition New Color Yellow Engine Wp12/Qsnt-C235 Center Distance of Track 2000mm Width of Track Shoes 560/610/660mm Fuel Tank 450L Digging Depth 540mm Transport Package Nude Packing Specification 5495*3725*3402mm Trademark SHANTUI Origin China Production Capacity 50units/Month

Product Description

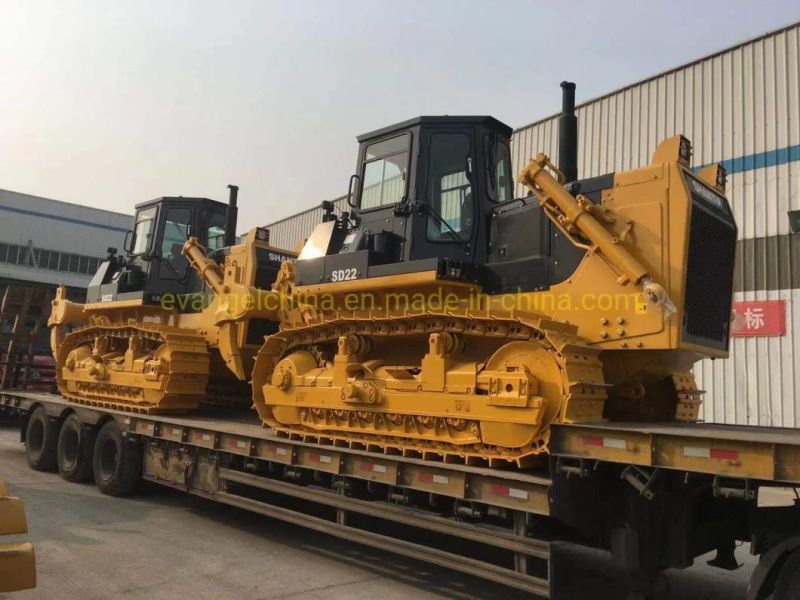

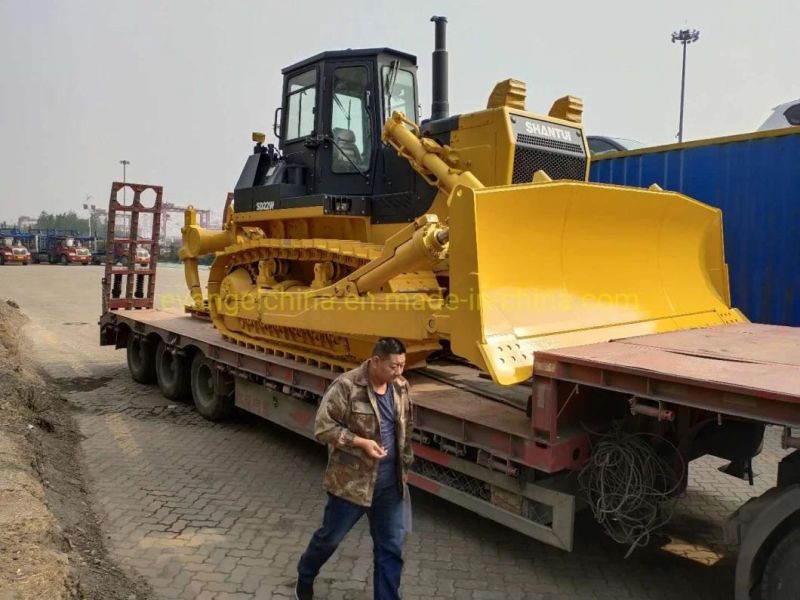

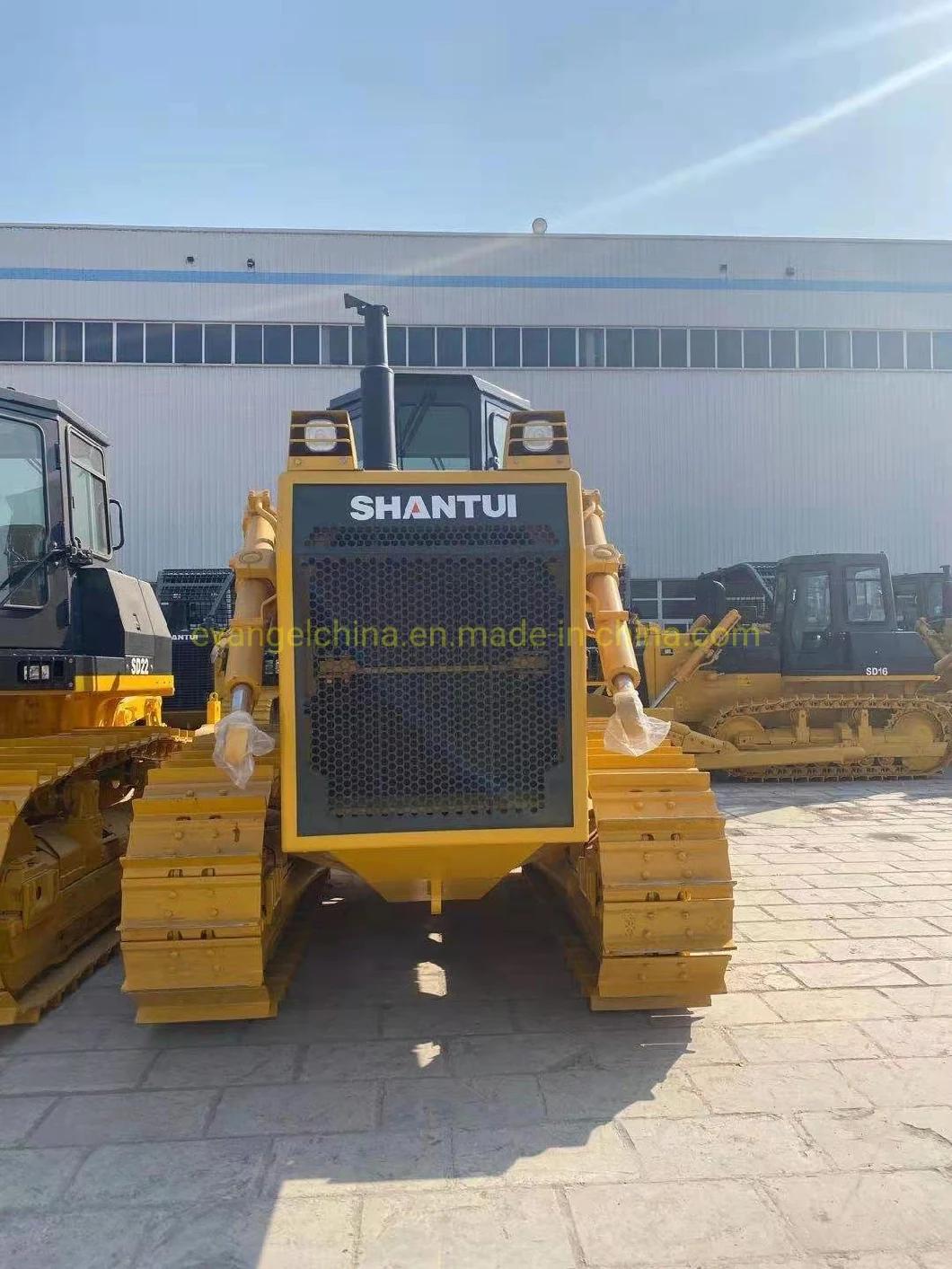

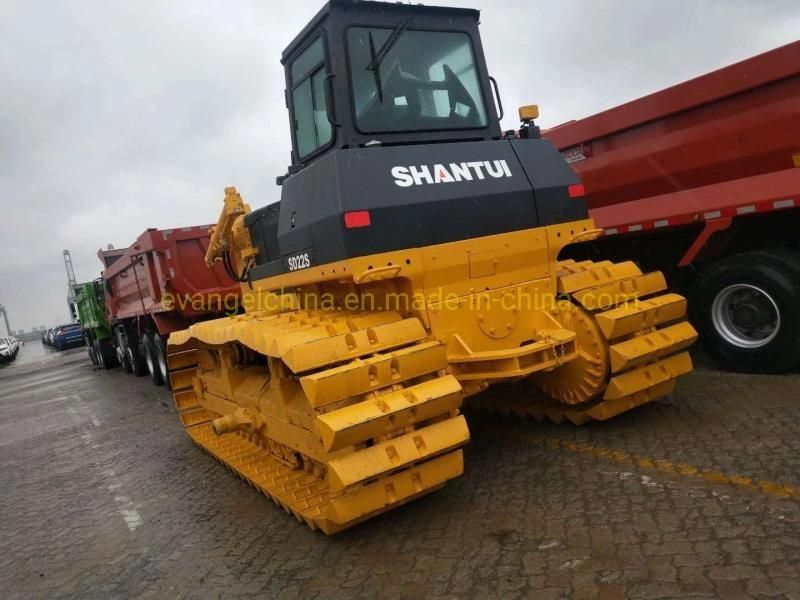

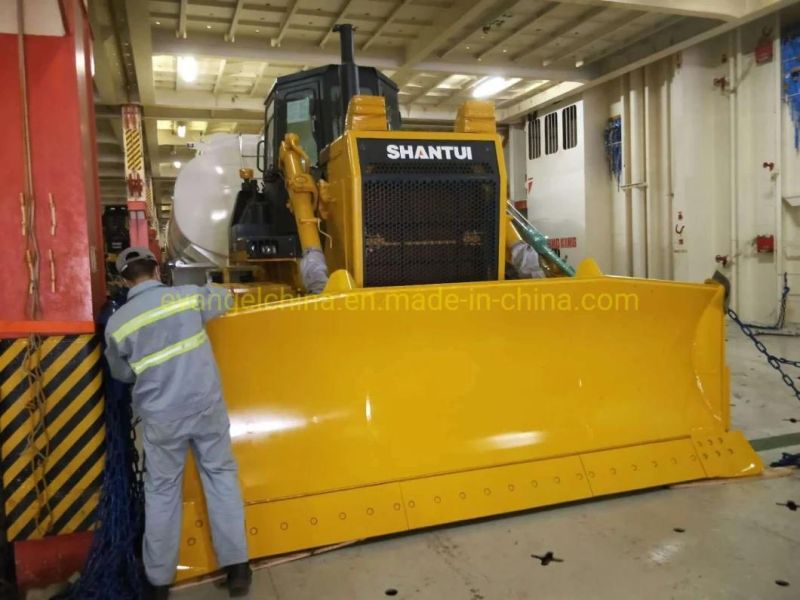

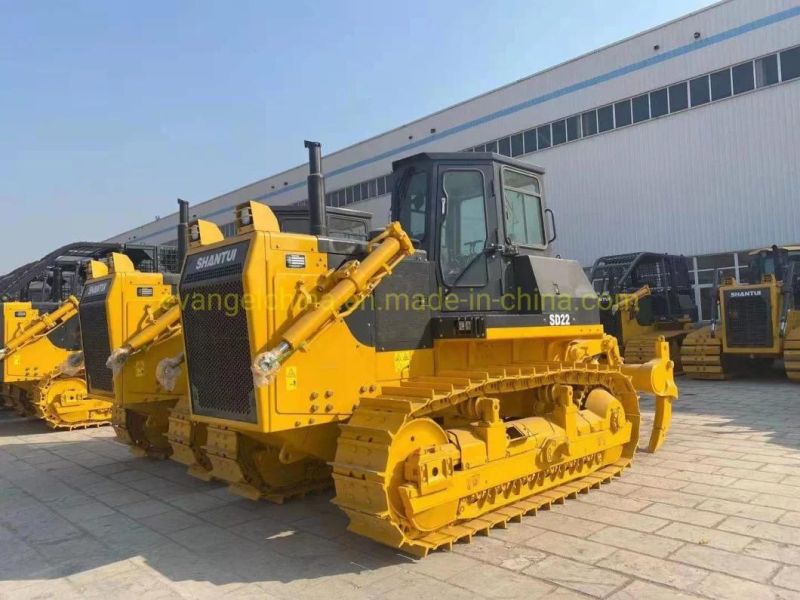

SHANTUI crawler bulldozer SD22/SD22C/SD22W/SD22F/SD22D/SD22E/SD22R/SD22S


Parameter name	SD22 (Standard version)	SD22C (Coal version)	SD22W (Rock version)	SD22F (Forestry version)	SD22D (Desert version)	SD22E (Extended version)	SD22R (Environmental sanitation version)	SD22S (Wetland version)
Performance parameters
Operating weight (Kg)	23450	24000	23600	24700	24600	24600	26000	25700
Ground pressure (kPa)	66	57.5	66	64	56	66	36	35.2
Engine
Engine model	WP12/QSNT-C235	WP12/QSNT-C235	QSNT-C235	QSNT-C235	QSNT-C235	QSNT-C235	WP12/QSNT-C235	WP12/QSNT-C235
Rated power/rated speed (kW/rpm)	175/1800	175/1800	175/1800	175/1800	175/1800	175/1800	175/1800	175/1800
Overall dimensions
Overall dimensions of machine (mm)	5495*3725* 3402	5820*4200* 3402	5495*3725* 3402	5495*3725* 3402	5495*3725* 3402	5495*3725* 3402	6290*4365* 3745	6290*4365* 3402
Driving performance
Forward speed (km/h)	F1:0-3.6 F2:0-6.5 F3:0-11.2	F1:0-3.6 F2:0-6.5 F3:0-11.2	F1:0-3.6 F2:0-6.5 F3:0-11.2	F1:0-3.6 F2:0-6.5 F3:0-11.2	F1:0-3.6 F2:0-6.5 F3:0-11.2	F1:0-3.6 F2:0-6.5 F3:0-11.2	F1:0-3.6 F2:0-6.5 F3:0-11.2	F1:0-3.6 F2:0-6.5 F3:0-11.2
Reversing speed (km/h)	R1:0-4.3 R2:0-7.7 R3:0-13.2	R1:0-4.3 R2:0-7.7 R3:0-13.2	R1:0-4.3 R2:0-7.7 R3:0-13.2	R1:0-4.3 R2:0-7.7 R3:0-13.2	R1:0-4.3 R2:0-7.7 R3:0-13.2	R1:0-4.3 R2:0-7.7 R3:0-13.2	R1:0-4.3 R2:0-7.7 R3:0-13.2	R1:0-4.3 R2:0-7.7 R3:0-13.2
Chassis System
Center distance of track (mm)	2000	2000	2000	2000	2000	2000	2250	2250
Width of track shoes (mm)	560/610/660	660	560/610/660	610/660	660	560/610/660	910	910
Ground length(mm)	2730	2730	2730	2730	3050	3050	3480	3480
Tank capacity
Fuel tank (L)	450	450	450	450	450	450	450	450
Working device

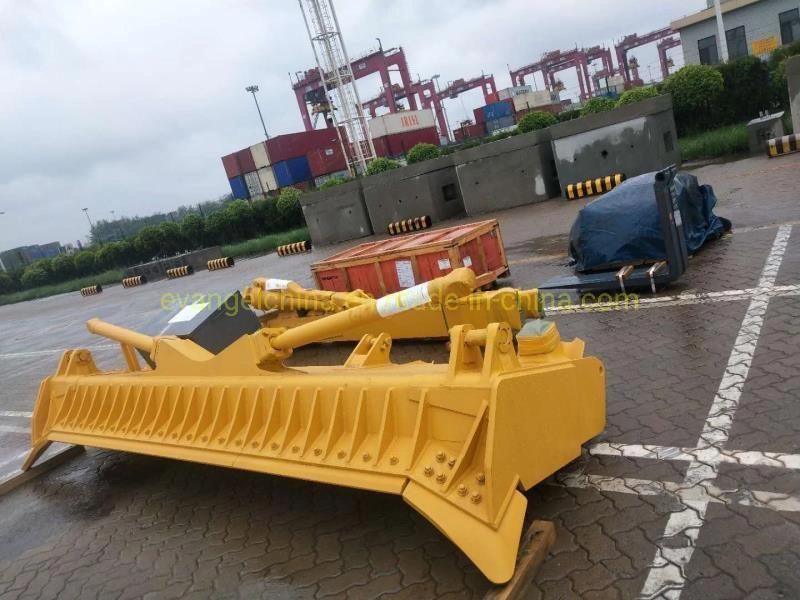

Blade type	Straight tilting blade , Angle Blade, U-shaped Blade and Semi-U blade	Coal blade	Rock straight tilting blade, rock angle blade, rock U-blade, and rock semi-U blade	Straight tilting blade , Angle Blade, U-shaped Blade and Semi-U blade	Straight tilting blade , Angle Blade, U-shaped Blade and Semi-U blade	Straight tilting blade , Angle Blade, U-shaped Blade and Semi-U blade	Sanitation blade	Straight tilting blade
Digging depth (mm)	540	538	540	540	540	540	550	550

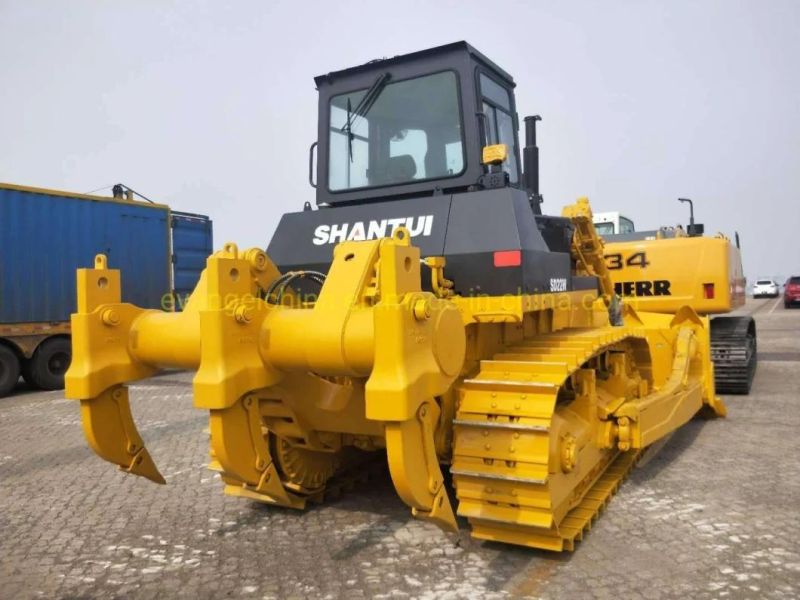

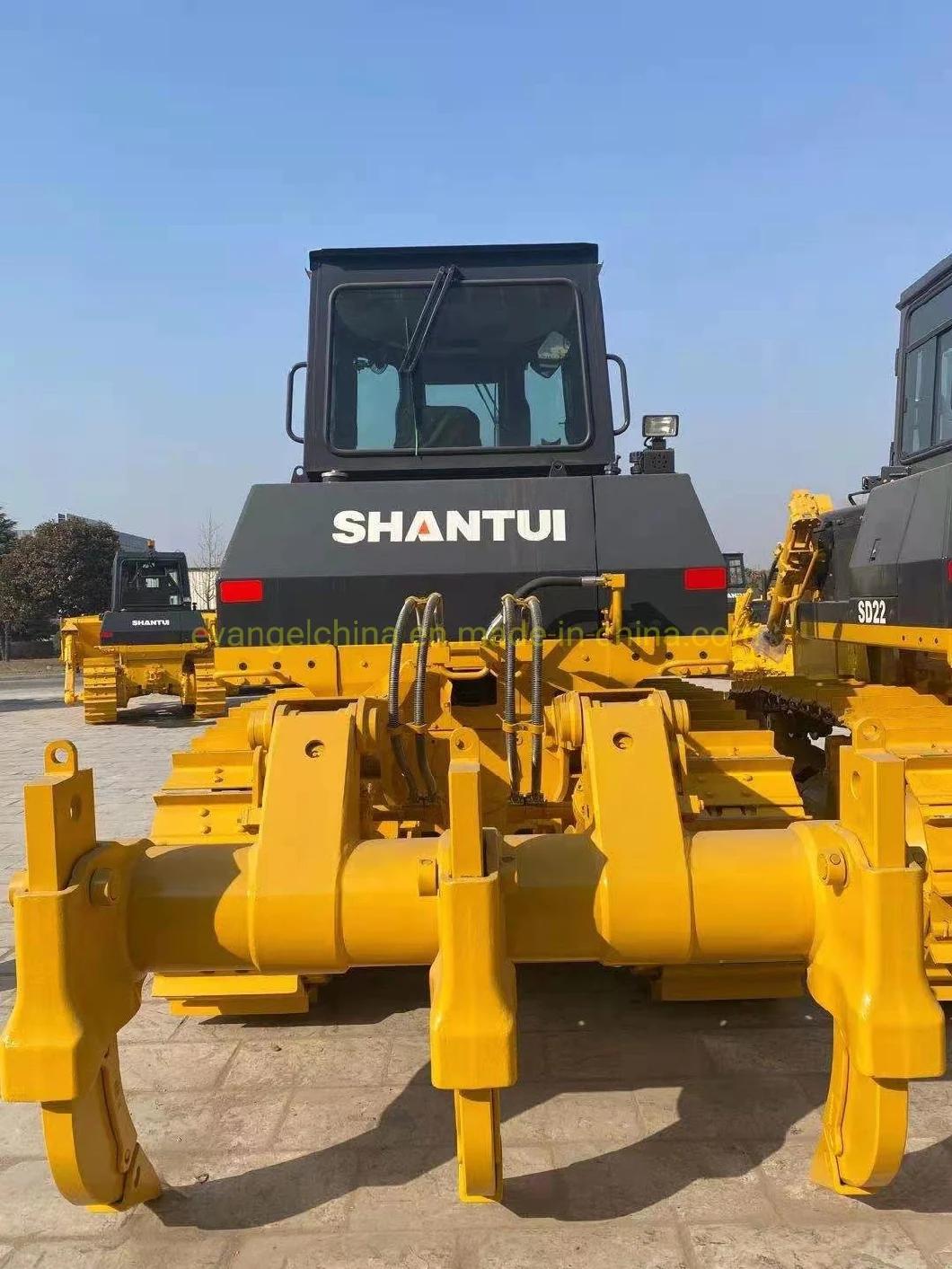

Ripper type	Single-shank three-shank	Single-shank three-shank	Single-shank three-shank	Single-shank three-shank	Single-shank three-shank	Single-shank three-shank	--	--
Ripping depth (mm)	695 (Single-shank) and 666 (Three-shank)	695 (Single-shank) and 666 (Three-shank)	695 (Single-shank) and 666 (Three-shank)	695 (Single-shank) and 666 (Three-shank)	695 (Single-shank) and 666 (Three-shank)	695 (Single-shank) and 666 (Three-shank)	--	--
