Ensign Yx635, 3 Ton Wheel Loader

Ensign Heavy Industries Co., Ltd.
  • Condition：New
  • Rated Load：3-6t
  • Transmission：Hydraulic - Mechanical
  • Load and Unload Mode：Front Discharge
  • Walking Mode：Wheeled
  • Type：Medium-sized Loader

Base Info

  • Model NO.：YX635
  • HS Code：84295100
  • Production Capacity：20000 Units,Year

Description

      Bucket capacitym31.2~3.0(standard bucket 1.8)Total cycle time(lift, dump& lower)s≤9.2Rated loadkg3000Dump height/Dump anglemm/ °2950/45Overall operating weightkg10300Dump distance/Dump anglemm/ °1040/45Max. traction forcekN≥100Min. ground clearancemm371.5Max. breakout forcekN≥100Wheel basemm2700Grade ability°30Wheel treadmm1850Min. turning radius(outer side of the bucket)mm6055Departure angle°30Min. turning radius(outer side of the tire)mm5461Steering angle(left & right)°35Overall dimension (standard configuration)      mm 6868*2520*3255

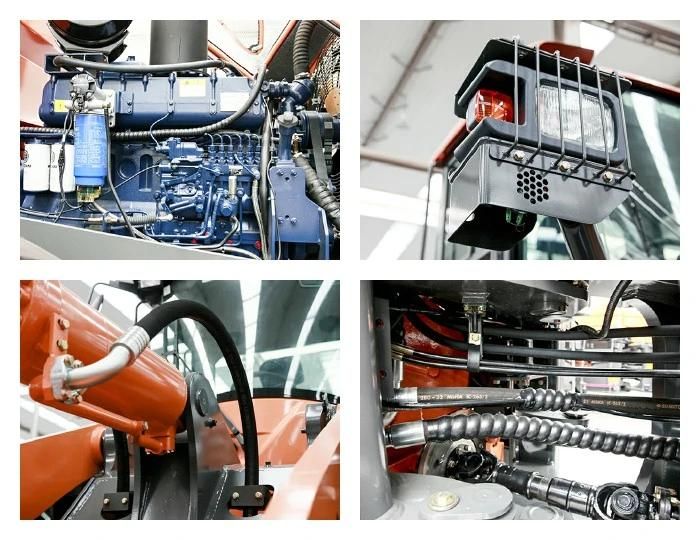

Core componentsEngineDrive Systemmodel
Weichai Deutz WP6G125E23Torque converter typeSingle stage, 3 elementstypeVertical, in-line, water cooling      four-stroke, direct injectionTransmission typeFixed shaft, power shiftRated power92KWGears4 forward, 2 reverse  Main drive typeSpiral bevel gear, first Reduction  Hub reduction typePlanetary  Drive axleDry type axleSteering SystemBraking SystemTypeLoad sensing hydraulicService brakeAir-over-oil caliper discOil pump typeGear pumpParking brakeFlexible shaft caliper discWorking Device Hydraulic SystemTireHydraulic system pressure16MpaSpecification 17.5-25Control typeMechanicalTread patternGeneral patternOil pump typeGear pump
High Quality 3 Ton Wheel Loader with Deutz EngineHigh Quality 3 Ton Wheel Loader with Deutz EngineHigh Quality 3 Ton Wheel Loader with Deutz EngineHigh Quality 3 Ton Wheel Loader with Deutz EngineHigh Quality 3 Ton Wheel Loader with Deutz EngineHigh Quality 3 Ton Wheel Loader with Deutz EngineFAQ:

Why choose us?
1). The quality is guaranteed due to strong technical support ,high quality component ,advanced production line and strict quality control system.
2). One-stop service with a large spare parts warehouse and professional service team .No matter where you are, you are guaranteed of Ensign' s warm reception, trustworthy and efficient professional services and persistent care.
