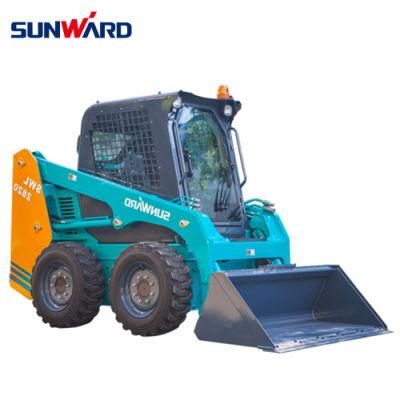

Sunward Swl3210 5t Mini Hydraulic Power Driven Skid Steer Loader
Sunward Intelligent Equipment Co., Ltd.- Certification：ISO9001
- Condition：New
- Transmission：Hydraulic - Mechanical
- Load and Unload Mode：Front Discharge
- Walking Mode：Wheeled
- Type：Mini Loader
Base Info
- Model NO.：SWL3210
- Hydraulic Cylinder Brand：Kyb
- Power：41.7,2600kw,Rpm
- Warranty：2 Years
- Dimension(Long * Breadth * High)：3318X1600X2014
- Color：Blue
- Unique Selling Point：High Power Engine
- Applicable Industries：Advertising Company, Building Material Shops
- Bucket Capacity：0.4mm
- Hydraulic Valve Brand：Kyb
- After-Sales Service Provided：Field Installation, Commissioning
- Hydraulic Pump Brand：Kyb
- Machine Weight：1600mm
- Moving Type：Wheel Loader

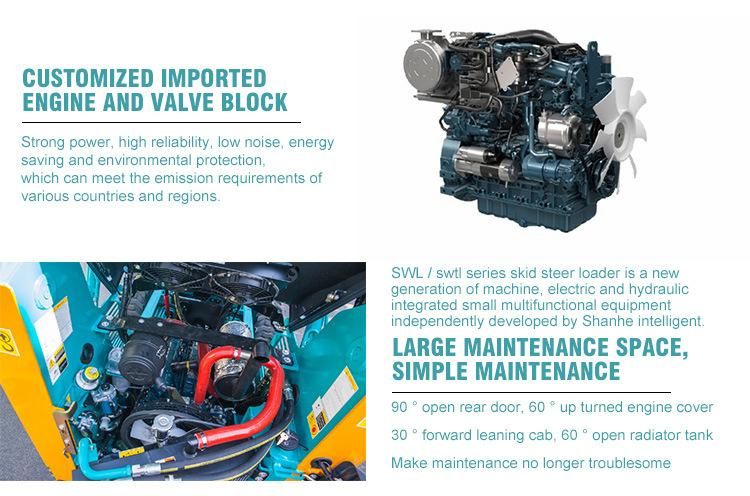

- Engine Brand：Isuzu
- Specification：3318X1600X2014
- Trademark：SUNWARD
- Origin：Hunan, China
Description
Dimension(L×B×H)mm 3651×1830×2068 Working parameters A Maximum overall height mm 4020 B Height to hinge pin mm 3123 C Height to top of cab mm 2068 D Height to bottom of level bucket mm 2948 E Length without standard bucket mm 2950 F Length with sandard bucket mm 3651 G Maximum dump angle ° 43 H Dump height mm 2395 J Dump reach mm 625 K Rolback angle (bucket on ground) ° 30 L Rolback angle at maximum height ° 93 M Wheelbase mm 1116 P Ground mm 205 Q Departure angle ° 27 R Turning radius from center (Coupler) mm 1342 S Turning radius from center (Bucket) mm 2180 T Turning radius from center (Machine rear) mm 1700 U Bumper overhang behind rear axle mm 1122 V Width over tire mm 1475 W Bucket width mm 1830 Operating weight kg 3350 Performance Rated operating capacity kg 1000 Tipping load kg 2000 Breakout force curl kg 2480 Breakout force lift kg 1430 Travel speed km/h 12.6 Bucket capacity m3 0.53
