1-12 Ton Log Loader Trailer with Crane
Weifang Haiqin Top Machinery Co., Ltd.- After-sales Service：24 Hours Every Day of Technology and Parts Service
- Warranty：12 Months
- Type：Universal Type
- Transmission：Hydraulic - Mechanical Transmission
- Walking Mode：Wheeled
- Load and Unload Method：Front Discharge
Base Info
- Model NO.：ZQ
- Engine Power：<74kw
- Certification：CE, ISO9001: 2000
- Condition：New
- Color：According to Buyers
- Transport Package：by Container
- Specification：ISO, SGS
- Trademark：Haiqin
- Origin：Shandong, China
- HS Code：84295100
- Production Capacity：5000 Units, Year
Description
ONE:Trailer Section:
Trailer Model
TR10
TR30
TR50
TR80
TR100
TR120
N/W of Trailer (kg)
420
690
940
1450
1700
1900
Related Loading Capacity
1T
3T
5T
8T
10T
12T
Loading Area
0.85m2
1m2
1.6m2
2.2m2
2.5m2
2.8m2
Total Length of Trailer
3.6m
5.1m
5.1m
5.9m
6.3m
6.3m
Trailer Loading Length
2.0m
3.1m
3.1m
3.8m
4.3m
4.3m
Total Width of Trailer
1.4m
1.6m
1.8m
2.2m
2.3m
2.5m
Assistant Hydraulic Steering
No
Standard
Dia.ofTraction Hole
33mm
38mm
Tire Model
6.00-13
7.00-16
8.25-16
400/60-15.5
TWO:Crane Section
Model
CR02
CR04
CR06
Weight of Crane (kg)
590
1100
1300
Max. Arm Reach
3.5m
4.3m
6m
Lifting Capacity/Arm Reach(kg/m)
400/2,
300/3,
200/3.5
900/2,
760/3,
500/4,
450/4.3
990/2,
760/3,
500/4,
340/5,
240/6
Rotating Angle
370°
400°
400°
Grab Sections:
Grab Model
TG019
TG024
TG029
Weight of Grab(kg)
90
130
160
Max.Grab Opening Width(mm)
11440
1300
1430
Grabbing Dia. Of Logs(mm)
80-420
70-485
75-530
Power (option): PTO / Gasoline Engine / Diesel Engine

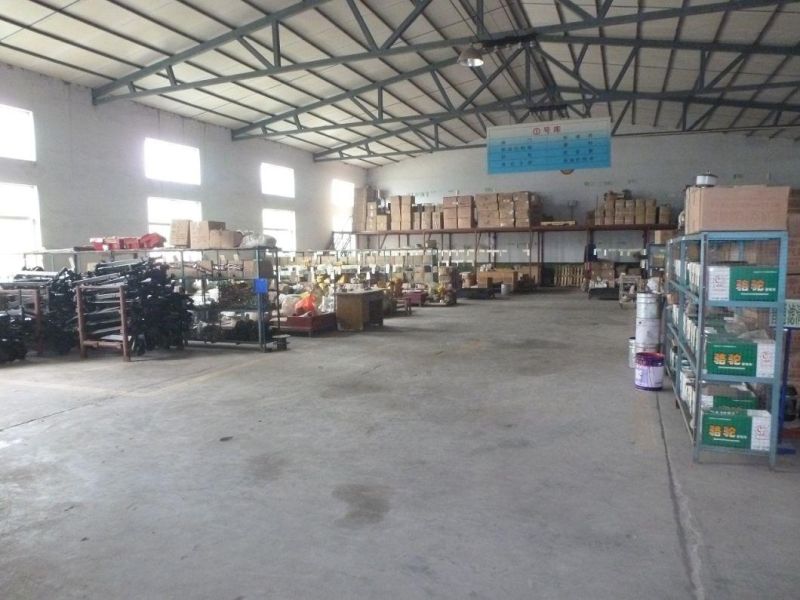

Professional spare parts warehouse can supply our customer fast after-sales service !
