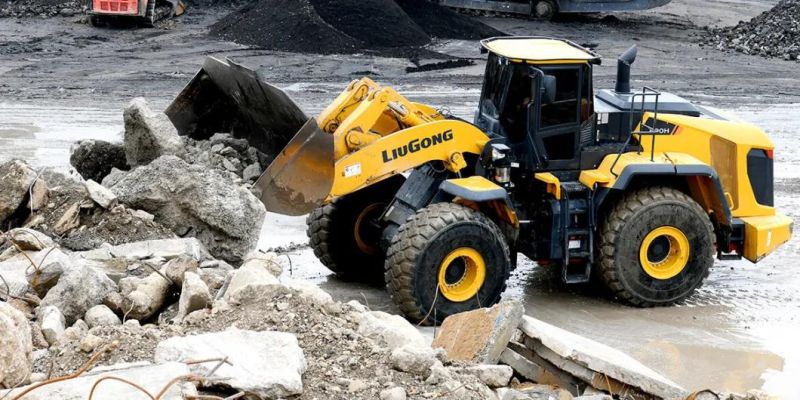

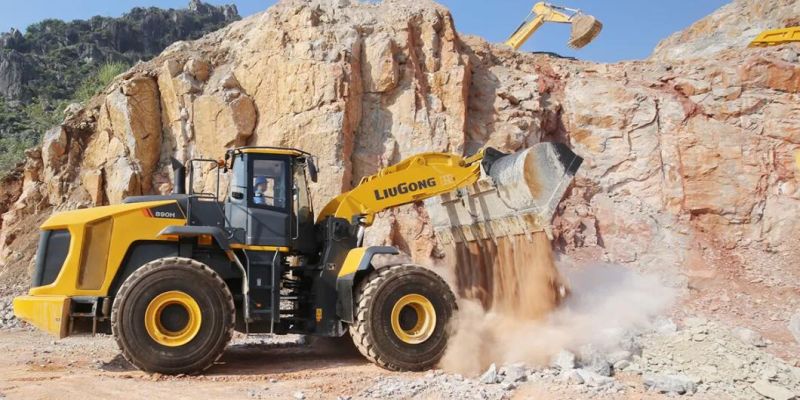

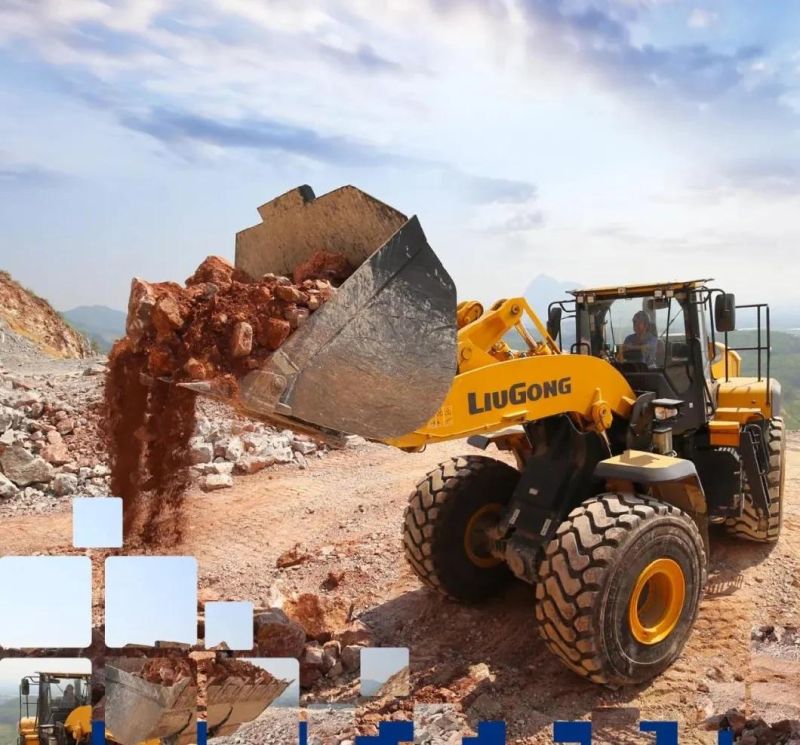

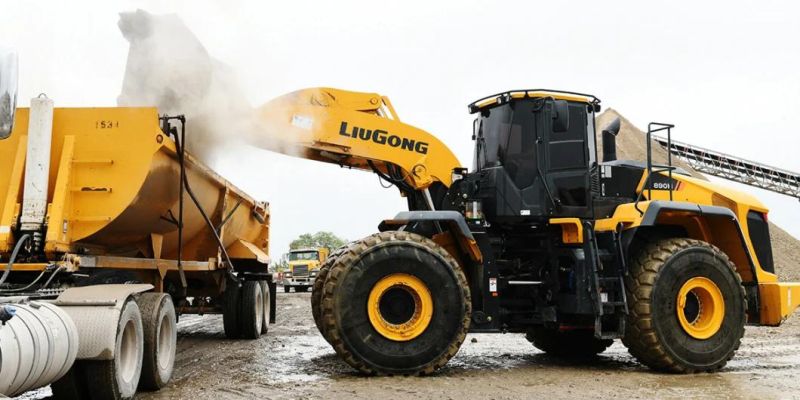

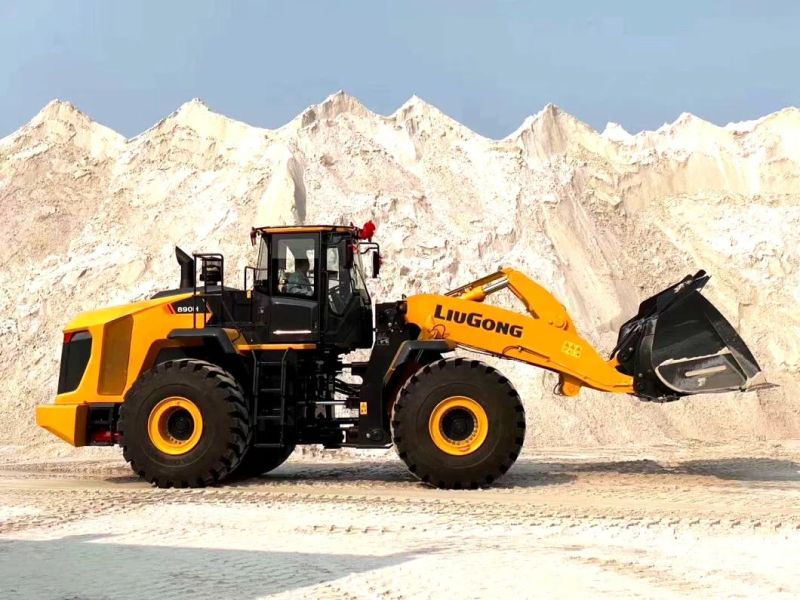

5.4 M3 Bucket Clg890h 9 Ton Large Wheel Loaders

Acntruck Automobile Sales (Shanghai) Co., Ltd.
  • After-sales Service：Yes
  • Warranty：1 Year
  • Certification：TUV, UL, ISO, RoHS, CE
  • Condition：New
  • Rated Load：6-9t, 9000 Kg
  • Transmission：Hydraulic - Mechanical

Base Info

  • Model NO.：CLG890H
  • Load and Unload Mode：Front Discharge
  • Walking Mode：Wheeled
  • Type：Large Loader
  • Operating Weight：30,600 Kg
  • Standard Bucket：5.4 M3
  • Gross Power：287 Kw (390 HP) @ 1800 Rpm
  • Net Power：273 Kw (371 HP) @ 1800 Rpm
  • Total Cycle Time：11 S
  • Bucket Breakout Force：236 Kn
  • Model：Cumminz Qsm11
  • Emissions：EPA Tier 2 , Tier 3 ,EU Stage II , EU Stage Iiia
  • Length with Bucket Down：9360 mm
  • Width Over Tires：3170 mm
  • Tipping Load-Full Turn：20600 Kg
  • Dump Reach, Full Height Discharge：1479 mm
  • Dump Clearance, Full Height Discharge：3330 mm
  • Turning Radius, Outside of Tire：6958 mm
  • Transport Package：Nude Package
  • Specification：9 ton wheel loader
  • Trademark：Liugong
  • Origin：China
  • Production Capacity：500,Month

Description

Basic Info.

Model NO. CLG890H Load and Unload Mode Front Discharge Walking Mode Wheeled Type Large Loader Operating Weight 30,600 Kg Standard Bucket 5.4 M3 Gross Power 287 Kw (390 HP) @ 1800 Rpm Net Power 273 Kw (371 HP) @ 1800 Rpm Total Cycle Time 11 S Bucket Breakout Force 236 Kn Model Cumminz Qsm11 Emissions EPA Tier 2 / Tier 3 /EU Stage II / EU Stage Iiia Length with Bucket Down 9360 mm Width Over Tires 3170 mm Tipping Load-Full Turn 20600 Kg Dump Reach, Full Height Discharge 1479 mm Dump Clearance, Full Height Discharge 3330 mm Turning Radius, Outside of Tire 6958 mm Transport Package Nude Package Specification 9 ton wheel loader Trademark Liugong Origin China Production Capacity 500/Month

Product Description



5.4 m3 Bucket CLG890H 9 Ton Large Wheel Loaders
  • Reinforced rock bucket with thickened plate is made especially for loading aggregates in mines.
  • Heavy-duty wet type brake axle and braking system ensure the reliability and durability of the product even under tough work conditions.
  • ROPS/FOPS certified cab for operator safety and reliable operation in tough conditions.
  • Fully-sealing and micro-pressuring system ensures the cab is clean and quiet. Silicone oil shock absorber reduces vibration and improves ride comfort.
Operating weight30,600 kg
Standard bucket5.4 m³
Maximum gross power287 kW (390 hp) @ 1800 rpm
Maximum net power273 kW (371 hp) @ 1800 rpm
Rated load9000 kg
Total cycle time11 s
Tipping load-full turn20600 kg
Bucket breakout force236 kN
Dump clearance, full height discharge3330 mm
Dump reach, full height discharge1479 mm
ModelCumminz QSM11
EmissionsEPA Tier 2 / Tier 3 /EU Stage II / EU Stage IIIA
Cooling systemCharge air cooling
Length with bucket down9360 mm
Width over tires3170 mm
Cab height3765 mm
Turning radius, outside of tire6958 mm
Bucket capacity4.5-9.0 m³
General Purpose5.4 m³
Light material7.2, 8.0, 9.0 m³
Heavy-rock4.5 m³
