• Model NO.：ZL50CN
• Load and Unload Mode：Front Discharge
• Walking Mode：Wheeled
• Type：Medium-sized Loader
• Operating Weight：16700 Kg
• Standard Bucket：3 M3
• Gross Power：162 Kw (220 HP) @ 2200 Rpm
• Net Power：148 Kw (201 HP) @ 2200 Rpm
• Total Cycle Time：11.5 S
• Bucket Breakout Force：165 Kn
• Model：6lt9.3
• Emissions：EPA Tier 2 , EU Stage II
• Length with Bucket Down：8030 mm
• Width Over Tires：2750 mm
• Tipping Load-Full Turn：11000 Kg
• Dump Reach, Full Height Discharge：1200 mm
• Dump Clearance, Full Height Discharge：2970 mm
• Turning Radius, Outside of Tire：7000 mm
• Transport Package：Nude Package
• Specification：5ton wheel loader
• Trademark：Liugong
• Origin：China
• Production Capacity：500,Month

Basic Info.

Model NO. ZL50CN Load and Unload Mode Front Discharge Walking Mode Wheeled Type Medium-sized Loader Operating Weight 16700 Kg Standard Bucket 3 M3 Gross Power 162 Kw (220 HP) @ 2200 Rpm Net Power 148 Kw (201 HP) @ 2200 Rpm Total Cycle Time 11.5 S Bucket Breakout Force 165 Kn Model 6lt9.3 Emissions EPA Tier 2 / EU Stage II Length with Bucket Down 8030 mm Width Over Tires 2750 mm Tipping Load-Full Turn 11000 Kg Dump Reach, Full Height Discharge 1200 mm Dump Clearance, Full Height Discharge 2970 mm Turning Radius, Outside of Tire 7000 mm Transport Package Nude Package Specification 5ton wheel loader Trademark Liugong Origin China Production Capacity 500/Month

Product Description

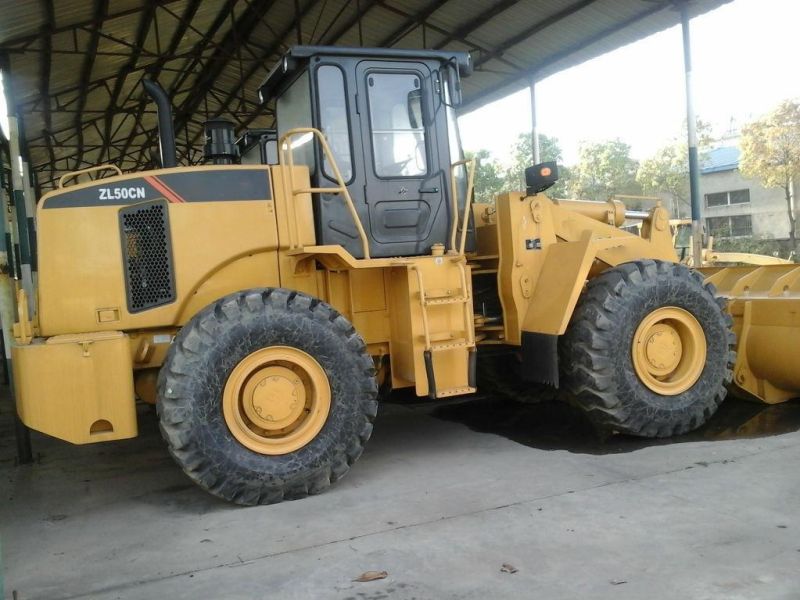

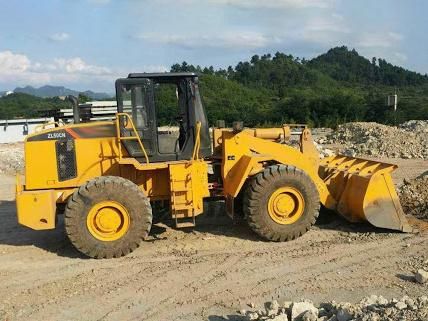

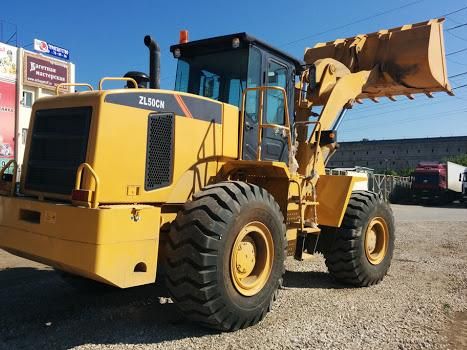

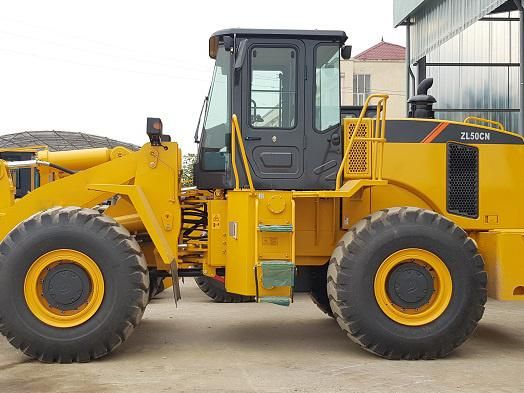

3m3 ZL50CN loaders Liugong 5 ton wheel loader

• Optimizing the shape of the bucket makes it easy to pick up material, achieving higher fill factors and less spillage.
•
• A/C with big cooling capacity, adding air from back and bottom of machine for all-round effect.
•
• Optimized preheating system and hyperboloid efficient fan, adaptable from -30 ºC ~ 45 ºC ambient temperature.
•
• Optional multiple attachments, including: multiple buckets, pallet fork, handing arm, grapple and snow blade greatly expands the applications of the wheel loader.

ZL50CN:

Operating weight	16700 kg
Standard bucket	3 m³
Gross power	162 kW (220 hp) @ 2200 rpm
Net power	148 kW (201 hp) @ 2200 rpm
Rated load	5000 kg
Total cycle time	11.5 s
Tipping load-full turn	11000 kg
Bucket breakout force	165 kN
Dump clearance, full height discharge	2970 mm
Dump reach, full height discharge	1200 mm
Model	6LT9.3
Emissions	EPA Tier 2 / EU Stage II
Cooling system	Charge air cooling
Length with bucket down	8030 mm
Width over tires	2750 mm
Cab height	3480 mm
Turning radius, outside of tire	7000 mm
Bucket capacity	1.8-5.6 m³
General Purpose	3 m³
Light material	3.0, 4.5, 5.0, 5.6 m³
Heavy-rock	2.7 m³
